Main schema spase-2.1.0.xsd
Namespace http://www.spase-group.org/data/schema
Properties
attribute form default unqualified
element form default qualified
version 2.1.0

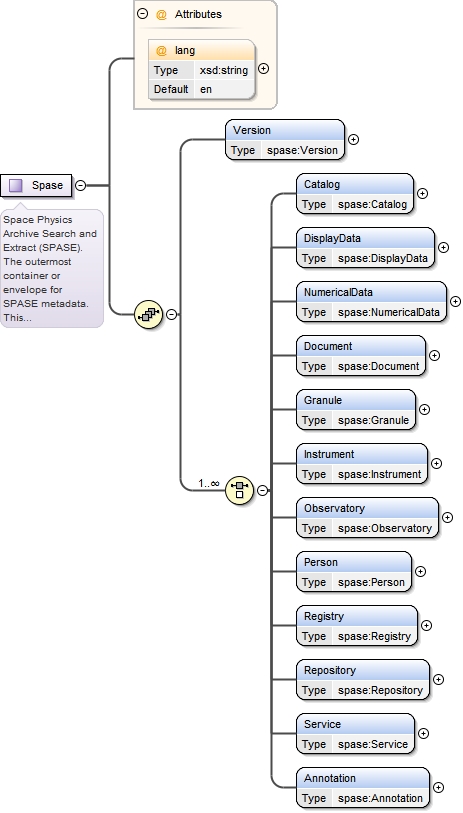

Element spase:Spase
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_lang spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Version spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Catalog spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_DisplayData spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_NumericalData spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Document spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Granule spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Instrument spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Observatory spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Person spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Registry spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Repository spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Service spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Annotation spase-2_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase
Type spase:Spase
Properties
content complex
Model
Children spase:Annotation, spase:Catalog, spase:DisplayData, spase:Document, spase:Granule, spase:Instrument, spase:NumericalData, spase:Observatory, spase:Person, spase:Registry, spase:Repository, spase:Service, spase:Version
Instance
<spase:Spase lang="en" xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Version>{1,1}</spase:Version>
  <spase:Catalog>{1,1}</spase:Catalog>

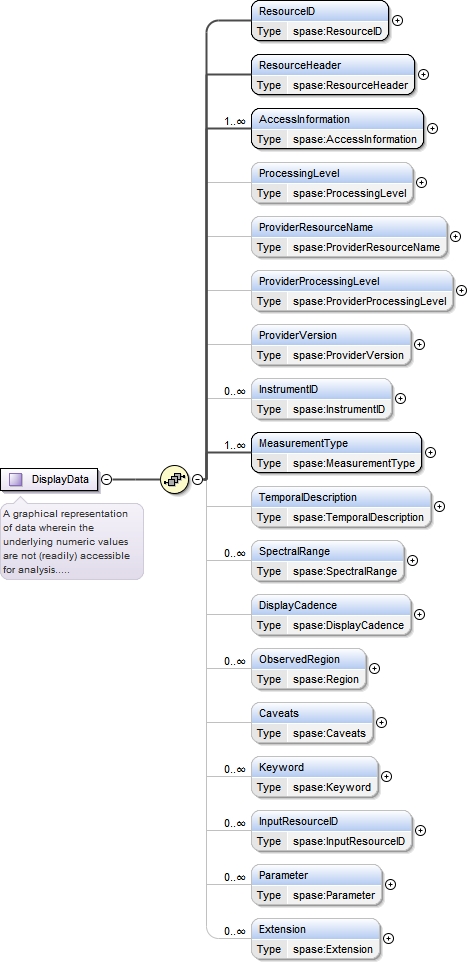

  <spase:DisplayData>{1,1}</spase:DisplayData>

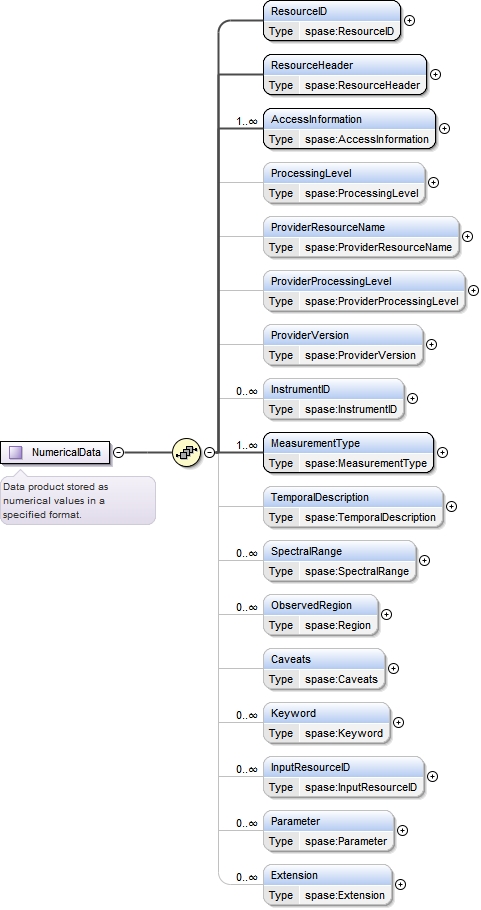

  <spase:NumericalData>{1,1}</spase:NumericalData>

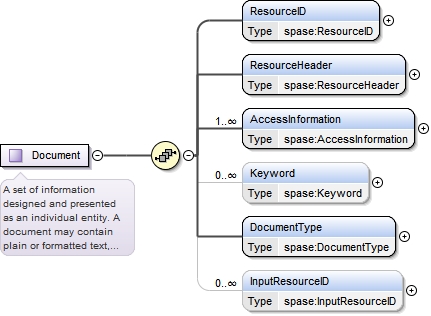

  <spase:Document>{1,1}</spase:Document>

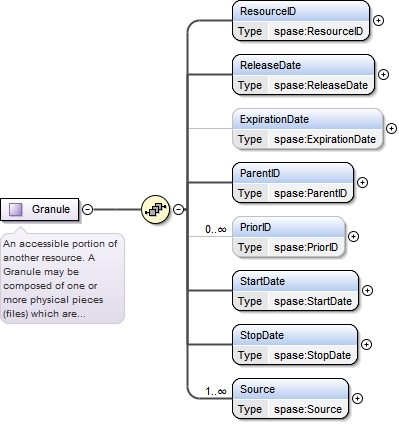

  <spase:Granule>{1,1}</spase:Granule>

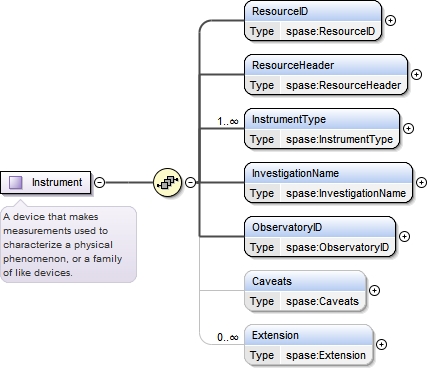

  <spase:Instrument>{1,1}</spase:Instrument>

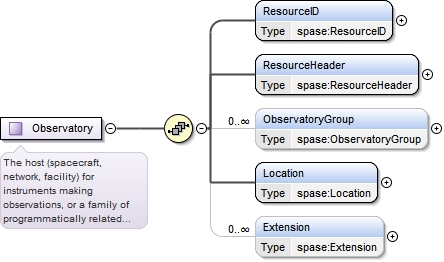

  <spase:Observatory>{1,1}</spase:Observatory>

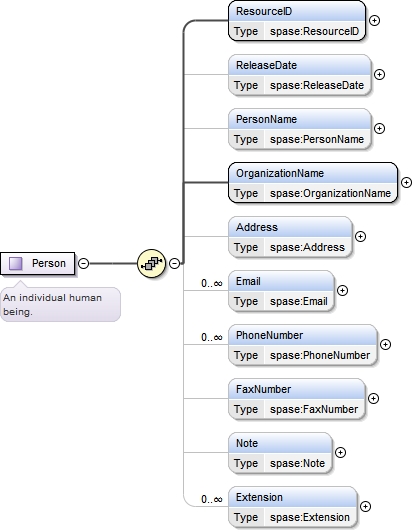

  <spase:Person>{1,1}</spase:Person>
  <spase:Registry>{1,1}</spase:Registry>

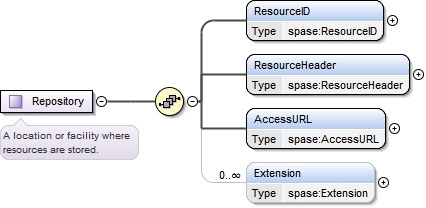

  <spase:Repository>{1,1}</spase:Repository>
  <spase:Service>{1,1}</spase:Service>

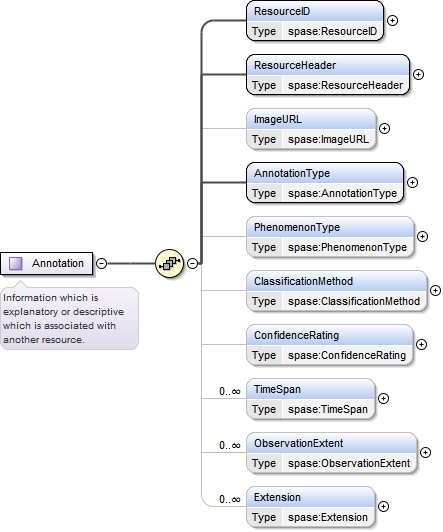

  <spase:Annotation>{1,1}</spase:Annotation>
</spase:Spase>
Attributes
QName Type Default Use
lang xsd:string en optional
Source
<xsd:element name="Spase" type="spase:Spase"/>
Element spase:Spase / spase:Version
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Version
Type spase:Version
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 2.1.0
Source
<xsd:element name="Version" type="spase:Version" minOccurs="1" maxOccurs="1"/>

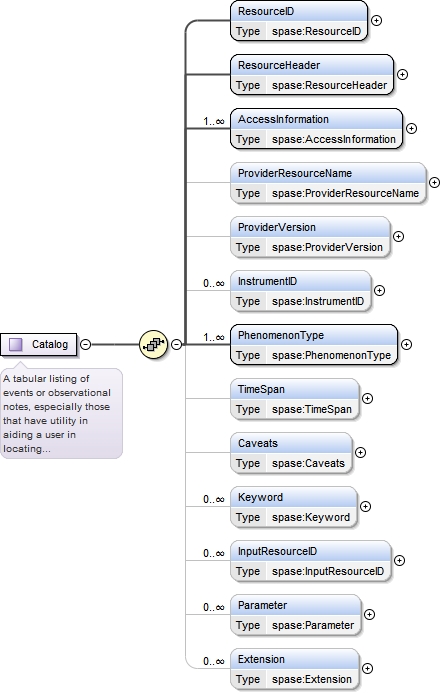

Element spase:Spase / spase:Catalog
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Catalog_ResourceID spase-2_1_0_xsd.tmp#Catalog_ResourceHeader spase-2_1_0_xsd.tmp#Catalog_AccessInformation spase-2_1_0_xsd.tmp#Catalog_ProviderResourceName spase-2_1_0_xsd.tmp#Catalog_ProviderVersion spase-2_1_0_xsd.tmp#Catalog_InstrumentID spase-2_1_0_xsd.tmp#Catalog_PhenomenonType spase-2_1_0_xsd.tmp#Catalog_TimeSpan spase-2_1_0_xsd.tmp#Catalog_Caveats spase-2_1_0_xsd.tmp#Catalog_Keyword spase-2_1_0_xsd.tmp#Catalog_InputResourceID spase-2_1_0_xsd.tmp#Catalog_Parameter spase-2_1_0_xsd.tmp#Catalog_Extension spase-2_1_0_xsd.tmp#Catalog
Type spase:Catalog
Properties
content complex
Model
Children spase:AccessInformation, spase:Caveats, spase:Extension, spase:InputResourceID, spase:InstrumentID, spase:Keyword, spase:Parameter, spase:PhenomenonType, spase:ProviderResourceName, spase:ProviderVersion, spase:ResourceHeader, spase:ResourceID, spase:TimeSpan
Instance
<spase:Catalog xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{1,1}</spase:ResourceHeader>

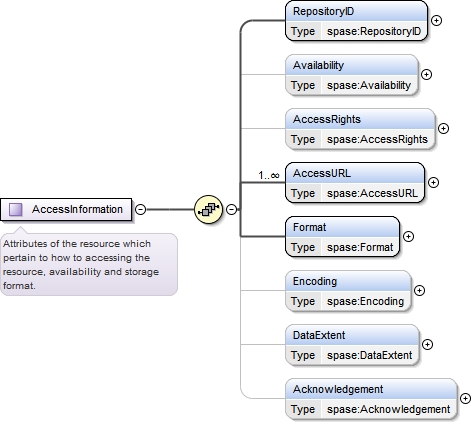

  <spase:AccessInformation>{1,unbounded}</spase:AccessInformation>
  <spase:ProviderResourceName>{0,1}</spase:ProviderResourceName>
  <spase:ProviderVersion>{0,1}</spase:ProviderVersion>
  <spase:InstrumentID>{0,unbounded}</spase:InstrumentID>
  <spase:PhenomenonType>{1,unbounded}</spase:PhenomenonType>

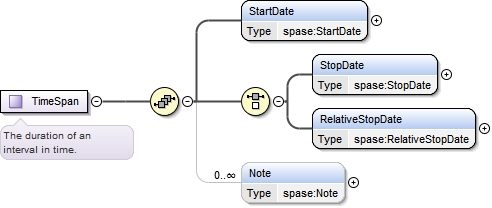

  <spase:TimeSpan>{0,1}</spase:TimeSpan>

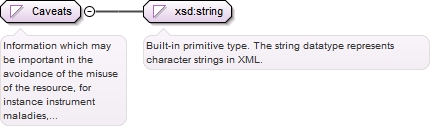

  <spase:Caveats>{0,1}</spase:Caveats>

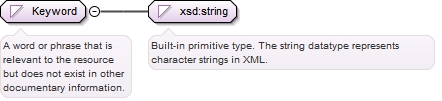

  <spase:Keyword>{0,unbounded}</spase:Keyword>
  <spase:InputResourceID>{0,unbounded}</spase:InputResourceID>

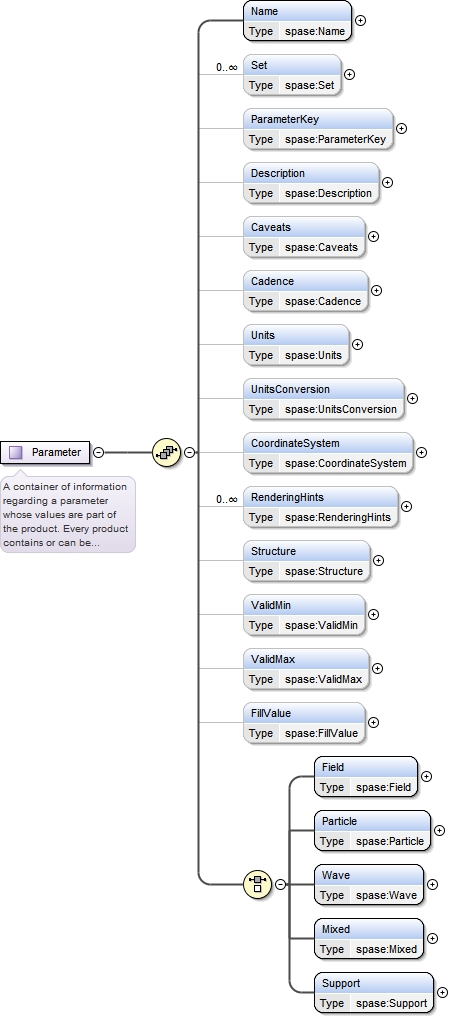

  <spase:Parameter>{0,unbounded}</spase:Parameter>

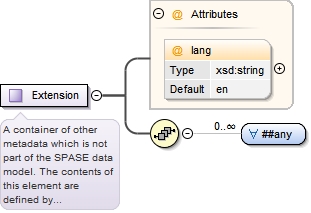

  <spase:Extension lang="en">{0,unbounded}</spase:Extension>
</spase:Catalog>
Source
<xsd:element name="Catalog" type="spase:Catalog"/>

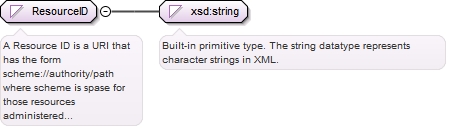

Element spase:Catalog / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>

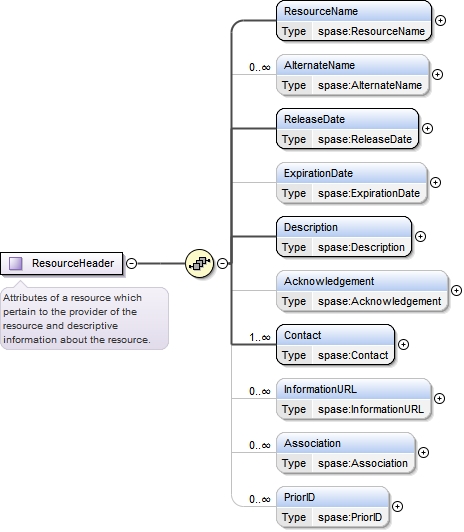

Element spase:Catalog / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ResourceHeader_ResourceName spase-2_1_0_xsd.tmp#ResourceHeader_AlternateName spase-2_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-2_1_0_xsd.tmp#ResourceHeader_ExpirationDate spase-2_1_0_xsd.tmp#ResourceHeader_Description spase-2_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-2_1_0_xsd.tmp#ResourceHeader_Contact spase-2_1_0_xsd.tmp#ResourceHeader_InformationURL spase-2_1_0_xsd.tmp#ResourceHeader_Association spase-2_1_0_xsd.tmp#ResourceHeader_PriorID spase-2_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:Association, spase:Contact, spase:Description, spase:ExpirationDate, spase:InformationURL, spase:PriorID, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:ExpirationDate>{0,1}</spase:ExpirationDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,unbounded}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:Association>{0,unbounded}</spase:Association>
  <spase:PriorID>{0,unbounded}</spase:PriorID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
Element spase:ResourceHeader / spase:ResourceName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ResourceName
Type spase:ResourceName
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceName" type="spase:ResourceName" minOccurs="1" maxOccurs="1"/>

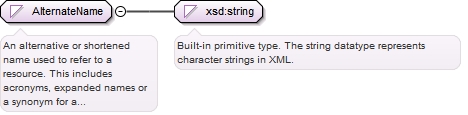

Element spase:ResourceHeader / spase:AlternateName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#AlternateName
Type spase:AlternateName
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="AlternateName" type="spase:AlternateName" minOccurs="0" maxOccurs="unbounded"/>

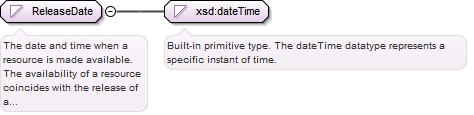

Element spase:ResourceHeader / spase:ReleaseDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ReleaseDate
Type spase:ReleaseDate
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ReleaseDate" type="spase:ReleaseDate" minOccurs="1" maxOccurs="1"/>

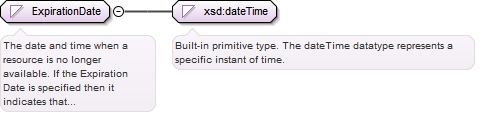

Element spase:ResourceHeader / spase:ExpirationDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ExpirationDate
Type spase:ExpirationDate
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ExpirationDate" type="spase:ExpirationDate" minOccurs="0" maxOccurs="1"/>

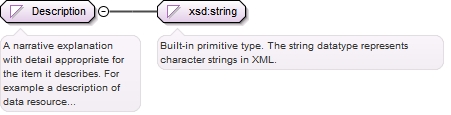

Element spase:ResourceHeader / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="1" maxOccurs="1"/>

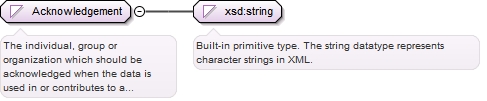

Element spase:ResourceHeader / spase:Acknowledgement
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Acknowledgement
Type spase:Acknowledgement
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Acknowledgement" type="spase:Acknowledgement" minOccurs="0" maxOccurs="1"/>

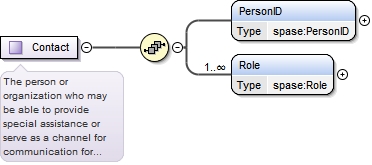

Element spase:ResourceHeader / spase:Contact
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Contact_PersonID spase-2_1_0_xsd.tmp#Contact_Role spase-2_1_0_xsd.tmp#Contact
Type spase:Contact
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children spase:PersonID, spase:Role
Instance
<spase:Contact xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:PersonID>{1,1}</spase:PersonID>
  <spase:Role>{1,unbounded}</spase:Role>
</spase:Contact>
Source
<xsd:element name="Contact" type="spase:Contact" minOccurs="1" maxOccurs="unbounded"/>
Element spase:Contact / spase:PersonID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#PersonID
Type spase:PersonID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="PersonID" type="spase:PersonID" minOccurs="1" maxOccurs="1"/>

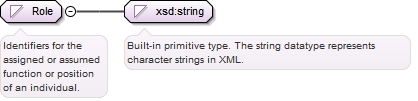

Element spase:Contact / spase:Role
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Role
Type spase:Role
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
enumeration ArchiveSpecialist
An individual who is an expert on a collection of resources and may also be knowledgeable of the phenomenon and related physics represented by the resources. This includes librarians, curators, archive scientists and other experts.
enumeration CoInvestigator
An individual who is a scientific peer and major participant in an investigation.
enumeration Contributor
An entity responsible for making contributions to the content of the resource.
enumeration DataProducer
An individual who generated the resource and is familiar with its provenance.
enumeration DeputyPI
An individual who is an administrative or scientific leader for an investigation operating under the supervision of a Principal Investigator.
enumeration FormerPI
An individual who had served as the administrative and scientific lead for an investigation, but no longer assumes that role.
enumeration GeneralContact
An individual who can provide information on a range of subjects or who can direct you to a domain expert.
enumeration MetadataContact
An individual who can affect a change in the metadata describing a resource.
enumeration PrincipalInvestigator
An individual who is the administrative and scientific lead for an investigation.
enumeration ProjectScientist
An individual who is an expert in the phenomenon and related physics explored by the project. A project scientist may also have a managerial role within the project.
enumeration Publisher
An individual, organization, institution or government department responsible for the production and dissemination of a document.
enumeration Scientist
An individual who is an expert in the phenomenon and related physics represented by the resource.
enumeration TeamLeader
An individual who is the designated leader of an investigation.
enumeration TeamMember
An individual who is a major participant in an investigation.
enumeration TechnicalContact
An individual who can provide specific information with regard to the resource or supporting software
Source
<xsd:element name="Role" type="spase:Role" minOccurs="1" maxOccurs="unbounded"/>

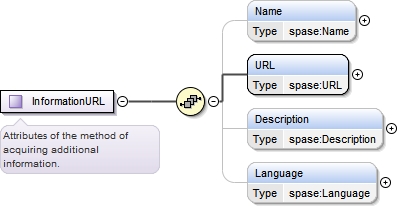

Element spase:ResourceHeader / spase:InformationURL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#InformationURL_Name spase-2_1_0_xsd.tmp#InformationURL_URL spase-2_1_0_xsd.tmp#InformationURL_Description spase-2_1_0_xsd.tmp#InformationURL_Language spase-2_1_0_xsd.tmp#InformationURL
Type spase:InformationURL
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:Description, spase:Language, spase:Name, spase:URL
Instance
<spase:InformationURL xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Name>{0,1}</spase:Name>
  <spase:URL>{1,1}</spase:URL>
  <spase:Description>{0,1}</spase:Description>
  <spase:Language>{0,1}</spase:Language>
</spase:InformationURL>
Source
<xsd:element name="InformationURL" type="spase:InformationURL" minOccurs="0" maxOccurs="unbounded"/>
Element spase:InformationURL / spase:Name
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Name
Type spase:Name
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Name" type="spase:Name" minOccurs="0" maxOccurs="1"/>

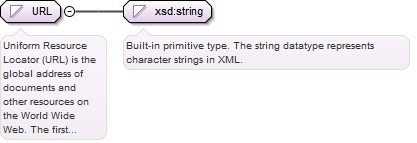

Element spase:InformationURL / spase:URL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#URL
Type spase:URL
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="URL" type="spase:URL" minOccurs="1" maxOccurs="1"/>
Element spase:InformationURL / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>

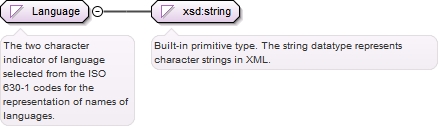

Element spase:InformationURL / spase:Language
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Language
Type spase:Language
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Language" type="spase:Language" minOccurs="0" maxOccurs="1"/>

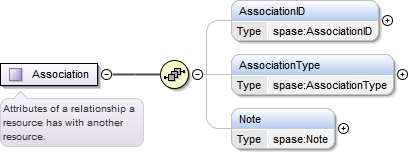

Element spase:ResourceHeader / spase:Association
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Association_AssociationID spase-2_1_0_xsd.tmp#Association_AssociationType spase-2_1_0_xsd.tmp#Association_Note spase-2_1_0_xsd.tmp#Association
Type spase:Association
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:AssociationID, spase:AssociationType, spase:Note
Instance
<spase:Association xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:AssociationID>{0,1}</spase:AssociationID>
  <spase:AssociationType>{0,1}</spase:AssociationType>

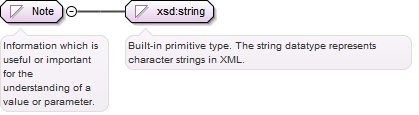

  <spase:Note>{0,1}</spase:Note>
</spase:Association>
Source
<xsd:element name="Association" type="spase:Association" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Association / spase:AssociationID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#AssociationID
Type spase:AssociationID
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="AssociationID" type="spase:AssociationID" minOccurs="0" maxOccurs="1"/>
Element spase:Association / spase:AssociationType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#AssociationType
Type spase:AssociationType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration ChildEventOf
A descendant or caused by another resource.
enumeration DerivedFrom
A transformed or altered version of a resource instance.
enumeration ObservedBy
Detected or originating from another resource.
enumeration Other
Not classified with more specific terms. The context of its usage may be described in related text.
enumeration PartOf
A portion of a larger resource.
enumeration RevisionOf
A modified version of a resource instance.
Source
<xsd:element name="AssociationType" type="spase:AssociationType" minOccurs="0" maxOccurs="1"/>
Element spase:Association / spase:Note
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Note
Type spase:Note
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Note" type="spase:Note" minOccurs="0" maxOccurs="1"/>

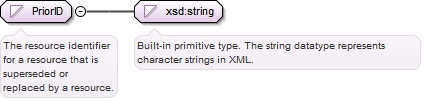

Element spase:ResourceHeader / spase:PriorID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#PriorID
Type spase:PriorID
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="PriorID" type="spase:PriorID" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Catalog / spase:AccessInformation
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#AccessInformation_RepositoryID spase-2_1_0_xsd.tmp#AccessInformation_Availability spase-2_1_0_xsd.tmp#AccessInformation_AccessRights spase-2_1_0_xsd.tmp#AccessInformation_AccessURL spase-2_1_0_xsd.tmp#AccessInformation_Format spase-2_1_0_xsd.tmp#AccessInformation_Encoding spase-2_1_0_xsd.tmp#AccessInformation_DataExtent spase-2_1_0_xsd.tmp#AccessInformation_Acknowledgement spase-2_1_0_xsd.tmp#AccessInformation
Type spase:AccessInformation
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children spase:AccessRights, spase:AccessURL, spase:Acknowledgement, spase:Availability, spase:DataExtent, spase:Encoding, spase:Format, spase:RepositoryID
Instance
<spase:AccessInformation xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:RepositoryID>{1,1}</spase:RepositoryID>
  <spase:Availability>{0,1}</spase:Availability>
  <spase:AccessRights>{0,1}</spase:AccessRights>
  <spase:AccessURL>{1,unbounded}</spase:AccessURL>
  <spase:Format>{1,1}</spase:Format>
  <spase:Encoding>{0,1}</spase:Encoding>
  <spase:DataExtent>{0,1}</spase:DataExtent>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
</spase:AccessInformation>
Source
<xsd:element name="AccessInformation" type="spase:AccessInformation" minOccurs="1" maxOccurs="unbounded"/>
Element spase:AccessInformation / spase:RepositoryID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#RepositoryID
Type spase:RepositoryID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="RepositoryID" type="spase:RepositoryID" minOccurs="1" maxOccurs="1"/>

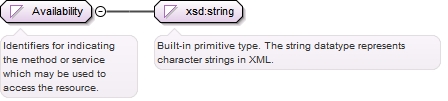

Element spase:AccessInformation / spase:Availability
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Availability
Type spase:Availability
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Offline
Not directly accessible electronically. This includes resources which may to be moved to an on-line status in response to a given request.
enumeration Online
Directly accessible electronically.
Source
<xsd:element name="Availability" type="spase:Availability" minOccurs="0" maxOccurs="1"/>

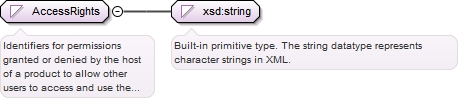

Element spase:AccessInformation / spase:AccessRights
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#AccessRights
Type spase:AccessRights
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Open
Access is granted to everyone.
enumeration Restricted
Access to the product is regulated and requires some form of identification.
Source
<xsd:element name="AccessRights" type="spase:AccessRights" minOccurs="0" maxOccurs="1"/>

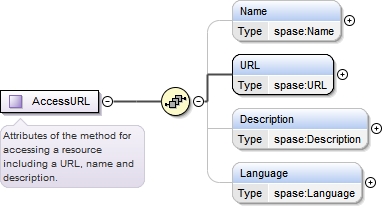

Element spase:AccessInformation / spase:AccessURL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#AccessURL_Name spase-2_1_0_xsd.tmp#AccessURL_URL spase-2_1_0_xsd.tmp#AccessURL_Description spase-2_1_0_xsd.tmp#AccessURL_Language spase-2_1_0_xsd.tmp#AccessURL
Type spase:AccessURL
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children spase:Description, spase:Language, spase:Name, spase:URL
Instance
<spase:AccessURL xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Name>{0,1}</spase:Name>
  <spase:URL>{1,1}</spase:URL>
  <spase:Description>{0,1}</spase:Description>
  <spase:Language>{0,1}</spase:Language>
</spase:AccessURL>
Source
<xsd:element name="AccessURL" type="spase:AccessURL" minOccurs="1" maxOccurs="unbounded"/>
Element spase:AccessURL / spase:Name
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Name
Type spase:Name
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Name" type="spase:Name" minOccurs="0" maxOccurs="1"/>
Element spase:AccessURL / spase:URL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#URL
Type spase:URL
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="URL" type="spase:URL" minOccurs="1" maxOccurs="1"/>
Element spase:AccessURL / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>
Element spase:AccessURL / spase:Language
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Language
Type spase:Language
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Language" type="spase:Language" minOccurs="0" maxOccurs="1"/>
Element spase:AccessInformation / spase:Format
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Format
Type spase:Format
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration AVI
Audio Video Interleave (AVI) a digital format for movies that conforms to the Microsoft Windows Resource Interchange File Format (RIFF).
enumeration Binary
A direct representation of the bits which may be stored in memory on a computer.
enumeration CDF
Common Data Format (CDF). A binary storage format developed at Goddard Space Flight Center (GSFC).
enumeration CEF
Cluster Exchange Format (CEF) is a self-documenting ASCII format designed for the exchange of data. There are two versions of CEF which are not totally compatible.
enumeration CEF1
Cluster Exchange Format (CEF), version 1, is a self-documenting ASCII format designed for the exchange of data. The metadata contains information compatible with the ISTP recommendations for CDF.
enumeration CEF2
Cluster Exchange Format (CEF), version 2, is a self-documenting ASCII format designed for the exchange of data and introduced for Cluster Active Archive. Compared to version 1, the metadata description of vectors and tensors is different.
enumeration FITS
Flexible Image Transport System (FITS) is a digital format primarily designed to store scientific data sets consisting of multi-dimensional arrays (1-D spectra, 2-D images or 3-D data cubes) and 2-dimensional tables containing rows and columns of data.
enumeration GIF
Graphic Interchange Format (GIF) first introduced in 1987 by CompuServe. GIF uses LZW compression and images are limited to 256 colours.
enumeration HDF
Hierarchical Data Format
enumeration HDF4
Hierarchical Data Format, Version 4
enumeration HDF5
Hierarchical Data Format, Version 5
enumeration HTML
A text file containing structured information represented in the HyperText Mark-up Language (HTML). See <http://www.w3.org/MarkUp/>
enumeration IDFS
Instrument Data File Set (IDFS) is a set of files written in a prescribed format which contain data, timing data, and meta-data. IDFS was developed at Southwest Research Institute (SwRI).
enumeration IDL
Interactive Data Language (IDL) save set. IDL is a proprietary format.
enumeration JPEG
A binary format for still images defined by the Joint Photographic Experts Group
enumeration MATLAB_4
MATLAB Workspace save set, version 4. MAT-files are double-precision, binary, MATLAB format files. MATLAB is a proprietary product of The MathWorks.
enumeration MATLAB_6
MATLAB Workspace save set, version 6. MAT-files are double-precision, binary, MATLAB format files. MATLAB is a proprietary product of The MathWorks.
enumeration MATLAB_7
MATLAB Workspace save set, version 7. MAT-files are double-precision, binary, MATLAB format files. Version 7 includes data compression and Unicode encoding. MATLAB is a proprietary product of The MathWorks.
enumeration MPEG
A digital format for movies defined by the Motion Picture Experts Group
enumeration NCAR
The National Center for Atmospheric Research (NCAR) format. A complete description of that standard is given in appendix C of the Report on Establishment & Operation of the Incoherent- Scatter Data Base, dated August 23, 1984, obtainable from NCAR, P.O. Box 3000 Boulder, Colorado 80307-3000.
enumeration NetCDF
Unidata Program Centers Network Common Data Form (NetCDF). A self-describing portable data format for array-oriented data access. See <http://my.unidata.ucar.edu/content/software/netcdf>
enumeration PDF
A document expressed in the Portable Document Format (PDF) as defined by Adobe.
enumeration PNG
A digital format for still images. Portable Network Graphics (PNG)
enumeration Postscript
A page description programming language created by Adobe Systems Inc. that is a device-independent industry standard for representing text and graphics.
enumeration QuickTime
A format for digital movies, as defined by Apple Computer. See <http://developer.apple.com/quicktime/>
enumeration TIFF
A binary format for still pictures. Tagged Image Format File (TIFF). Originally developed by Aldus and now controlled by Adobe.
enumeration Text
A sequence of characters which may have an imposed structure or organization.
enumeration Text.ASCII
A sequence of characters that adheres to American Standard Code for Information Interchange (ASCII) which is an 7-bit character-coding scheme.
enumeration Text.Unicode
Text in multi-byte Unicode format.
enumeration UDF
Universal Data Format (UDF). The Optical Technology Storage Associations Universal Disk Format, based on ISO 13346. See <http://www.osta.org/specs/index.htm>
enumeration VOTable
A proposed IVOA standard designed as a flexible storage and exchange format for tabular data.
enumeration XML
eXtensible Mark-up Language (XML). A structured format for representing information. See <http://www.w3.org/XML/>
Source
<xsd:element name="Format" type="spase:Format" minOccurs="1" maxOccurs="1"/>

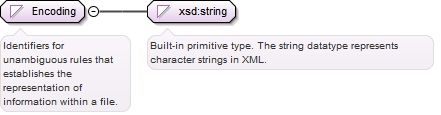

Element spase:AccessInformation / spase:Encoding
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Encoding
Type spase:Encoding
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration ASCII
A sequence of characters that adheres to American Standard Code for Information Interchange (ASCII) which is an 7-bit character-coding scheme.
enumeration BZIP2
An open standard algorithm by Julian Seward using Burrows-Wheeler block sorting and Huffman coding. See <http://www.bzip.org/>
enumeration Base64
A data encoding scheme whereby binary-encoded data is converted to printable ASCII characters. It is defined as a MIME content transfer encoding for use in Internet e-mail. The only characters used are the upper- and lower-case Roman alphabet characters (A-Z, a-z), the numerals (0-9), and the + and / symbols, with the = symbol as a special suffix (padding) code.
enumeration GZIP
An open standard algorithm distributed by GHU based on LZ77 and Huffman coding. See <http://www.gnu.org/software/gzip/gzip.html> or <http://www.gzip.org/>
enumeration None
A lack or absence of anything.
enumeration TAR
A file format used to collate collections of files into one larger file, for distribution or archiving, while preserving file system information such as user and group permissions, dates, and directory structures. The format was standardized by POSIX.1-1988 and later POSIX.1-2001.
enumeration Unicode
Text in multi-byte Unicode format.
enumeration ZIP
An open standard for compression which is a variation of the LZW method and was originally used in the PKZIP utility.
Source
<xsd:element name="Encoding" type="spase:Encoding" minOccurs="0" maxOccurs="1"/>
Element spase:AccessInformation / spase:DataExtent
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#DataExtent_Quantity spase-2_1_0_xsd.tmp#DataExtent_Units spase-2_1_0_xsd.tmp#DataExtent_Per spase-2_1_0_xsd.tmp#DataExtent
Type spase:DataExtent
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Per, spase:Quantity, spase:Units
Instance
<spase:DataExtent xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Quantity>{1,1}</spase:Quantity>
  <spase:Units>{0,1}</spase:Units>
  <spase:Per>{0,1}</spase:Per>
</spase:DataExtent>
Source
<xsd:element name="DataExtent" type="spase:DataExtent" minOccurs="0" maxOccurs="1"/>
Element spase:DataExtent / spase:Quantity
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Quantity
Type spase:Quantity
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Quantity" type="spase:Quantity" minOccurs="1" maxOccurs="1"/>

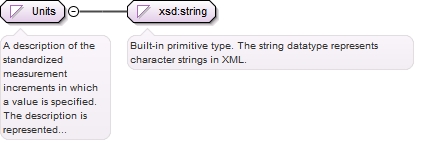

Element spase:DataExtent / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>

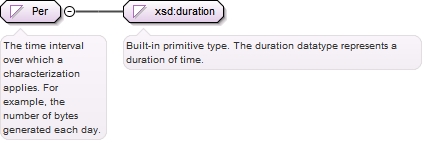

Element spase:DataExtent / spase:Per
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Per
Type spase:Per
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Per" type="spase:Per" minOccurs="0" maxOccurs="1"/>
Element spase:AccessInformation / spase:Acknowledgement
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Acknowledgement
Type spase:Acknowledgement
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Acknowledgement" type="spase:Acknowledgement" minOccurs="0" maxOccurs="1"/>
Element spase:Catalog / spase:ProviderResourceName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ProviderResourceName
Type spase:ProviderResourceName
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderResourceName" type="spase:ProviderResourceName" minOccurs="0" maxOccurs="1"/>

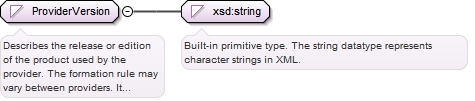

Element spase:Catalog / spase:ProviderVersion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ProviderVersion
Type spase:ProviderVersion
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderVersion" type="spase:ProviderVersion" minOccurs="0" maxOccurs="1"/>
Element spase:Catalog / spase:InstrumentID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#InstrumentID
Type spase:InstrumentID
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="InstrumentID" type="spase:InstrumentID" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Catalog / spase:PhenomenonType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#PhenomenonType
Type spase:PhenomenonType
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
enumeration ActiveRegion
A localized, transient volume of the solar atmosphere in which PLAGEs, SUNSPOTS, FACULAe, FLAREs, etc. may be observed.
enumeration Aurora
An atmospheric phenomenon consisting of bands of light caused by charged solar particles following the earths magnetic lines of force.
enumeration BowShockCrossing
A crossing of the boundary between the undisturbed (except for foreshock effects) solar wind and the shocked, decelerated solar wind of the magnetosheath.
enumeration CoronalHole
An extended region of the corona, exceptionally low in density and associated with unipolar photospheric regions. A coronal hole can be an open magnetic field in the corona and (perhaps) inner heliosphere which has a faster than average outflow (wind); A region of lower than quiet ion and electron density in the corona; or a region of lower peak electron temperature in the corona than in the quiet corona.
enumeration CoronalMassEjection
A solar event (CME) that involves a burst of plasma ejected into the interplanetary medium.  CMEs may be observed remotely relatively near the sun or in situ in the interplanetary medium.  The latter type of observations are often referred to as Interplanetary CMEs (ICMEs).
enumeration EITWave
A wave in the corona of the Sun which produce shock waves on the Suns chromosphere (Moreton Waves). EIT Waves are produced by large solar flare and expand outward at about 1,000 km/s. It usually appears as a slowly moving diffuse arc of brightening in H-alpha, and may travel for several hundred thousand km.
enumeration EnergeticSolarParticleEvent
An enhancement of interplanetary fluxes of energetic ions accelerated by interplanetary shocks and/or solar flares.
enumeration ForbushDecrease
A rapid decrease in the observed galactic cosmic ray intensity following the passage of an outwardly convecting interplanetary magnetic field disturbance, such as those associated with large CMEs, that sweep some galactic cosmic rays away from Earth.
enumeration GeomagneticStorm
A magnetospheric disturbance typically defined by variations in the horizontal component of the Earths surface magnetic field.  The variation typically starts with a field enhancement associated with a solar wind pressure pulse and continues with a field depression associated with an enhancement of the diamagnetic magnetospheric ring current.
enumeration InterplanetaryShock
A shock propagating generally anti-sunward through the slower solar wind, often seen in front of CME-associated plasma clouds.
enumeration MagneticCloud
A transient event observed in the solar wind characterized as a region of enhanced magnetic field strength, smooth rotation of the magnetic field vector and low proton density and temperature.
enumeration MagnetopauseCrossing
A crossing of the interface between the shocked solar wind in the magnetosheath and the magnetic field and plasma in the magnetosphere.
enumeration RadioBurst
Emissions of the sun in radio wavelengths from centimeters to dekameters, under both quiet and disturbed conditions. Radio Bursts can be Type I consisting of many short, narrow-band bursts in the metric range (300 - 50 MHz).; Type II consisting of narrow-band emission that begins in the meter range (300 MHz) and sweeps slowly (tens of minutes) toward dekameter wavelengths (10 MHz).; Type III consisting of narrow-band bursts that sweep rapidly (seconds) from decimeter to dekameter wavelengths (500 - 0.5 MHz); and Type IV consisting of a smooth continuum of broad-band bursts primarily in the meter range (300 - 30 MHz).
enumeration SolarFlare
An explosive event in the Suns atmosphere which produces electromagnetic radiation across the electromagnetic spectrum at multiple wavelengths from long-wave radio to the shortest wavelength gamma rays.
enumeration SolarWindExtreme
Intervals of unusually large or small values of solar wind attributes such as flow speed and ion density.
enumeration StreamInteractionRegion
The region (SIR) where two solar wind streams, typically having differing characteristics and solar sources, abut up against (and possibly partially interpenetrate) each other.
enumeration Substorm
A process by which plasma in the magnetotail becomes energized at a fast rate.
Source
<xsd:element name="PhenomenonType" type="spase:PhenomenonType" minOccurs="1" maxOccurs="unbounded"/>
Element spase:Catalog / spase:TimeSpan
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#TimeSpan_StartDate spase-2_1_0_xsd.tmp#TimeSpan_StopDate spase-2_1_0_xsd.tmp#TimeSpan_RelativeStopDate spase-2_1_0_xsd.tmp#TimeSpan_Note spase-2_1_0_xsd.tmp#TimeSpan
Type spase:TimeSpan
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Note, spase:RelativeStopDate, spase:StartDate, spase:StopDate
Instance
<spase:TimeSpan xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:StartDate>{1,1}</spase:StartDate>
  <spase:StopDate>{1,1}</spase:StopDate>
  <spase:RelativeStopDate>{1,1}</spase:RelativeStopDate>
  <spase:Note>{0,unbounded}</spase:Note>
</spase:TimeSpan>
Source
<xsd:element name="TimeSpan" type="spase:TimeSpan" minOccurs="0" maxOccurs="1"/>
Element spase:TimeSpan / spase:StartDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#StartDate
Type spase:StartDate
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="StartDate" type="spase:StartDate" minOccurs="1" maxOccurs="1"/>
Element spase:TimeSpan / spase:StopDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#StopDate
Type spase:StopDate
Properties
content simple
Source
<xsd:element name="StopDate" type="spase:StopDate"/>
Element spase:TimeSpan / spase:RelativeStopDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#RelativeStopDate
Type spase:RelativeStopDate
Properties
content simple
Source
<xsd:element name="RelativeStopDate" type="spase:RelativeStopDate"/>
Element spase:TimeSpan / spase:Note
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Note
Type spase:Note
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="Note" type="spase:Note" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Catalog / spase:Caveats
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Caveats
Type spase:Caveats
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
Element spase:Catalog / spase:Keyword
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Keyword
Type spase:Keyword
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="Keyword" type="spase:Keyword" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Catalog / spase:InputResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#InputResourceID
Type spase:InputResourceID
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="InputResourceID" type="spase:InputResourceID" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Catalog / spase:Parameter
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Parameter_Name spase-2_1_0_xsd.tmp#Parameter_Set spase-2_1_0_xsd.tmp#Parameter_ParameterKey spase-2_1_0_xsd.tmp#Parameter_Description spase-2_1_0_xsd.tmp#Parameter_Caveats spase-2_1_0_xsd.tmp#Parameter_Cadence spase-2_1_0_xsd.tmp#Parameter_Units spase-2_1_0_xsd.tmp#Parameter_UnitsConversion spase-2_1_0_xsd.tmp#Parameter_CoordinateSystem spase-2_1_0_xsd.tmp#Parameter_RenderingHints spase-2_1_0_xsd.tmp#Parameter_Structure spase-2_1_0_xsd.tmp#Parameter_ValidMin spase-2_1_0_xsd.tmp#Parameter_ValidMax spase-2_1_0_xsd.tmp#Parameter_FillValue spase-2_1_0_xsd.tmp#Parameter_Field spase-2_1_0_xsd.tmp#Parameter_Particle spase-2_1_0_xsd.tmp#Parameter_Wave spase-2_1_0_xsd.tmp#Parameter_Mixed spase-2_1_0_xsd.tmp#Parameter_Support spase-2_1_0_xsd.tmp#Parameter
Type spase:Parameter
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:Cadence, spase:Caveats, spase:CoordinateSystem, spase:Description, spase:Field, spase:FillValue, spase:Mixed, spase:Name, spase:ParameterKey, spase:Particle, spase:RenderingHints, spase:Set, spase:Structure, spase:Support, spase:Units, spase:UnitsConversion, spase:ValidMax, spase:ValidMin, spase:Wave
Instance
<spase:Parameter xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Name>{1,1}</spase:Name>
  <spase:Set>{0,unbounded}</spase:Set>
  <spase:ParameterKey>{0,1}</spase:ParameterKey>
  <spase:Description>{0,1}</spase:Description>
  <spase:Caveats>{0,1}</spase:Caveats>
  <spase:Cadence>{0,1}</spase:Cadence>
  <spase:Units>{0,1}</spase:Units>
  <spase:UnitsConversion>{0,1}</spase:UnitsConversion>
  <spase:CoordinateSystem>{0,1}</spase:CoordinateSystem>

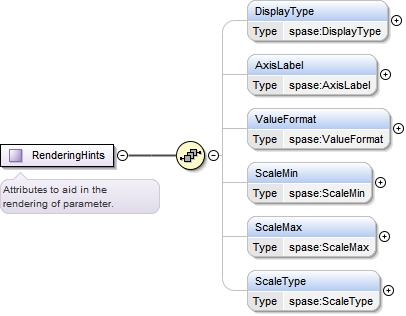

  <spase:RenderingHints>{0,unbounded}</spase:RenderingHints>

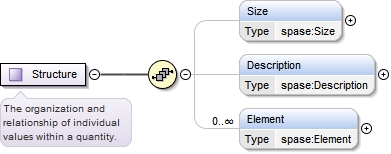

  <spase:Structure>{0,1}</spase:Structure>
  <spase:ValidMin>{0,1}</spase:ValidMin>
  <spase:ValidMax>{0,1}</spase:ValidMax>
  <spase:FillValue>{0,1}</spase:FillValue>

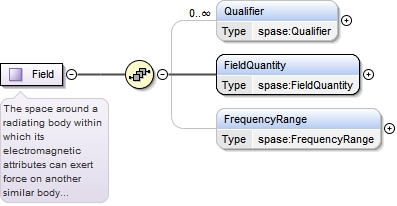

  <spase:Field>{1,1}</spase:Field>

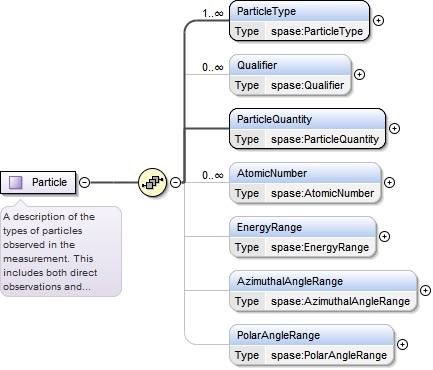

  <spase:Particle>{1,1}</spase:Particle>

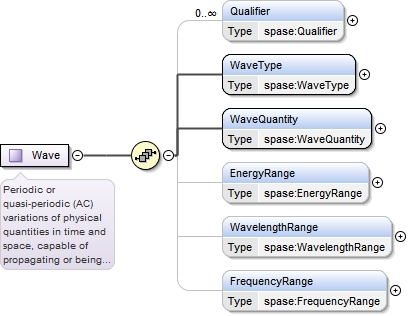

  <spase:Wave>{1,1}</spase:Wave>

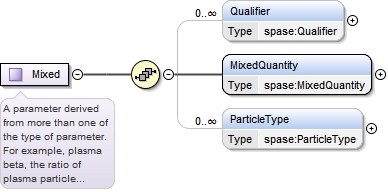

  <spase:Mixed>{1,1}</spase:Mixed>

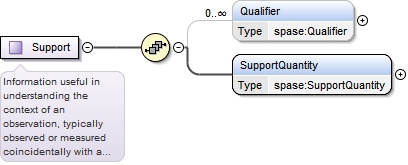

  <spase:Support>{1,1}</spase:Support>
</spase:Parameter>
Source
<xsd:element name="Parameter" type="spase:Parameter" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Parameter / spase:Name
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Name
Type spase:Name
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Name" type="spase:Name" minOccurs="1" maxOccurs="1"/>
Element spase:Parameter / spase:Set
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Set
Type spase:Set
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="Set" type="spase:Set" minOccurs="0" maxOccurs="unbounded"/>

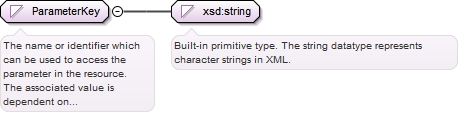

Element spase:Parameter / spase:ParameterKey
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ParameterKey
Type spase:ParameterKey
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ParameterKey" type="spase:ParameterKey" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:Caveats
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Caveats
Type spase:Caveats
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>

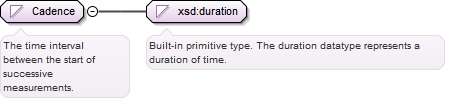

Element spase:Parameter / spase:Cadence
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Cadence
Type spase:Cadence
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Cadence" type="spase:Cadence" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>

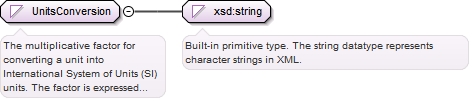

Element spase:Parameter / spase:UnitsConversion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#UnitsConversion
Type spase:UnitsConversion
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="UnitsConversion" type="spase:UnitsConversion" minOccurs="0" maxOccurs="1"/>

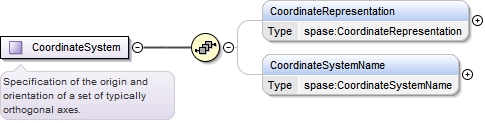

Element spase:Parameter / spase:CoordinateSystem
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#CoordinateSystem_CoordinateRepresentation spase-2_1_0_xsd.tmp#CoordinateSystem_CoordinateSystemName spase-2_1_0_xsd.tmp#CoordinateSystem
Type spase:CoordinateSystem
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:CoordinateRepresentation, spase:CoordinateSystemName
Instance
<spase:CoordinateSystem xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:CoordinateRepresentation>{0,1}</spase:CoordinateRepresentation>
  <spase:CoordinateSystemName>{0,1}</spase:CoordinateSystemName>
</spase:CoordinateSystem>
Source
<xsd:element name="CoordinateSystem" type="spase:CoordinateSystem" minOccurs="0" maxOccurs="1"/>
Element spase:CoordinateSystem / spase:CoordinateRepresentation
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#CoordinateRepresentation
Type spase:CoordinateRepresentation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Cartesian
A representation in which a position vector or a measured vector (e.g., field or flow) is specified by its components along the base axes of the coordinate system.
enumeration Cylindrical
A coordinate representation of a position vector or measured vector (field or flow) by its k-component, the magnitude of its projection into the i-j plane, and the azimuthal angle of the i-j plane projection.
enumeration Spherical
A coordinate representation of a position vector or of a measured vector by its magnitude and two direction angles.  The angles are relative to the base axes of the coordinate system used.  Typically the angles are phi [azimuth angle, =arctan (j/i)] and theta, where theta may be a polar angle, arctan {[SQRT(i^2+j^2)]/k}, or an elevation angle, arctan [k/SQRT (i^2+j^2)].
Source
<xsd:element name="CoordinateRepresentation" type="spase:CoordinateRepresentation" minOccurs="0" maxOccurs="1"/>
Element spase:CoordinateSystem / spase:CoordinateSystemName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#CoordinateSystemName
Type spase:CoordinateSystemName
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration CGM
Corrected Geomagnetic - A coordinate system from a spatial point with GEO radial distance and geomagnetic latitude and longitude, follow the epoch-appropriate IGRF/DGRF model field vector through to the point where the field line crosses the geomagnetic dipole equatorial plane. Then trace the dipole magnetic field vector Earthward from that point on the equatorial plane, in the same hemisphere as the original point, until the initial radial distance is reached. Designate the dipole latitude and longitude at that point as the CGM latitude and longitude of the original point. See <http://nssdc.gsfc.nasa.gov/space/cgm/cgmm_des.html>
enumeration Carrington
A coordinate system which is centered at the Sun and is fixed with respect to the synodic rotation rate; the mean synodic value is about 27.2753 days. The Astronomical Almanac gives a value for Carrington longitude of 349.03 degrees at 0000 UT on 1 January 1995.
enumeration DM
Dipole Meridian - A coordinate system centered at the observation point. Z axis is parallel to the Earths dipole axis, positive northward. X is in the plane defined by Z and the line linking the observation point with the Earths center. Y is positive eastward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration GEI
Geocentric Equatorial Inertial - A coordinate system where the Z axis is along Earths spin vector, positive northward. X axis points towards the first point of Aries (from the Earth towards the Sun at the vernal equinox). See Russell, 1971
enumeration GEO
Geographic - geocentric corotating - A coordinate system where the Z axis is along Earths spin vector, positive northward. X axis lies in Greenwich meridian, positive towards Greenwich. See Russell, 1971.
enumeration GSE
Geocentric Solar Ecliptic - A coordinate system where the X axis is from Earth to Sun. Z axis is normal to the ecliptic, positive northward. See Russell, 1971.
enumeration GSEQ
Geocentric Solar Equatorial - A coordinate system where the X axis is from Earth to Sun. Y axis is parallel to solar equatorial plane. Z axis is positive northward. See Russell, 1971
enumeration GSM
Geocentric Solar Magnetospheric - A coordinate system where the X axis is from Earth to Sun, Z axis is northward in a plane containing the X axis and the geomagnetic dipole axis. See Russell, 1971
enumeration HAE
Heliocentric Aries Ecliptic - A coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis is positive towards the first point of Aries (from Earth to Sun at vernal equinox). Same as SE below. See Hapgood, 1992.
enumeration HCI
Heliographic Carrington Inertial.
enumeration HEE
Heliocentric Earth Ecliptic - A coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis points from Sun to Earth. See Hapgood, 1992
enumeration HEEQ
Heliocentric Earth Equatorial - A coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X axis is generally Earthward in the plane defined by the Z axis and the Sun-Earth direction. See Hapgood, 1992.
enumeration HG
Heliographic - A heliocentric rotating coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X, Y axes rotate with a 25.38 day period. The zero longitude (X axis) is defined as the longitude that passed through the ascending node of the solar equator on the ecliptic plane on 1 January, 1854 at 12 UT. See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration HGI
Heliographic Inertial - A heliocentric coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X axis is along the intersection line between solar equatorial and ecliptic planes. The X axis was positive at SE longitude of 74.367 deg on Jan 1, 1900. (See SE below.) See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration J2000
An astronomical coordinate system which uses the mean equator and equinox of Julian date 2451545.0 TT (Terrestrial Time), or January 1, 2000, noon TT. (aka J2000) to define a celestial reference frame.
enumeration LGM
Local Geomagnetic - A coordinate system used mainly for Earth surface or near Earth surface magnetic field data. X axis northward from observation point in a geographic meridian. Z axis downward towards Earths center. In this system, H (total horizontal component) = SQRT (Bx^2 + By^2) and D (declination angle) = arctan (By/Bx)
enumeration MAG
Geomagnetic - geocentric. Z axis is parallel to the geomagnetic dipole axis, positive north. X is in the plane defined by the Z axis and the Earths rotation axis. If N is a unit vector from the Earths center to the north geographic pole, the signs of the X and Y axes are given by Y = N x Z, X = Y x Z.. See Russell, 1971, and <http://cdpp.cnes.fr/00428.pdf>
enumeration MFA
Magnetic Field Aligned - A coordinate system spacecraft-centered system with Z in the direction of the ambient magnetic field vector. X is in the plane defined by Z and the spacecraft-Sun line, positive sunward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration RTN
Radial Tangential Normal. Typically centered at a spacecraft. Used for IMF and plasma V vectors. R (radial) axis is radially away from the Sun, T (tangential) axis is normal to the plane formed by R and the Suns spin vector, positive in the direction of planetary motion. N (normal) is R x T.
enumeration SC
Spacecraft - A coordinate system defined by the spacecraft geometry and/or spin. Often has Z axis parallel to spacecraft spin vector. X and Y axes may or may not corotate with the spacecraft. See SR and SR2 below.
enumeration SE
Solar Ecliptic - A heliocentric coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis is positive towards the first point of Aries (from Earth to Sun at vernal equinox). Same as HAE above. See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration SM
Solar Magnetic - A geocentric coordinate system where the Z axis is northward along Earths dipole axis, X axis is in plane of z axis and Earth-Sun line, positive sunward. See Russell, 1971.
enumeration SR
Spin Reference - A special case of a Spacecraft (SC) coordinate system for a spinning spacecraft. Z is parallel to the spacecraft spin vector. X and Y rotate with the spacecraft. See <http://cdpp.cnes.fr/00428.pdf>
enumeration SR2
Spin Reference 2 - A special case of a Spacecraft (SC) coordinate system for a spinning spacecraft. Z is parallel to the spacecraft spin vector. X is in the plane defined by Z and the spacecraft-Sun line, positive sunward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration SSE
Spacecraft Solar Ecliptic - A coordinate system used for deep space spacecraft, for example Helios. - X axis from spacecraft to Sun. Z axis normal to ecliptic plane, positive northward. Note: Angle between normals to ecliptic and to Helios orbit plane ~ 0.25 deg.
enumeration SpacecraftOrbitPlane
A coordinate system where X lies in the plane normal to and in the direction of motion of the spacecraft, Z is normal to this plane and Y completes the triad in a right-handed coordinate system.
enumeration WGS84
The World Geodetic System (WGS) defines a reference frame for the earth, for use in geodesy and navigation. The WGS84 uses the zero meridian as defined by the Bureau International de lHeure.
Source
<xsd:element name="CoordinateSystemName" type="spase:CoordinateSystemName" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:RenderingHints
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#RenderingHints_DisplayType spase-2_1_0_xsd.tmp#RenderingHints_AxisLabel spase-2_1_0_xsd.tmp#RenderingHints_ValueFormat spase-2_1_0_xsd.tmp#RenderingHints_ScaleMin spase-2_1_0_xsd.tmp#RenderingHints_ScaleMax spase-2_1_0_xsd.tmp#RenderingHints_ScaleType spase-2_1_0_xsd.tmp#RenderingHints
Type spase:RenderingHints
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:AxisLabel, spase:DisplayType, spase:ScaleMax, spase:ScaleMin, spase:ScaleType, spase:ValueFormat
Instance
<spase:RenderingHints xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:DisplayType>{0,1}</spase:DisplayType>
  <spase:AxisLabel>{0,1}</spase:AxisLabel>
  <spase:ValueFormat>{0,1}</spase:ValueFormat>
  <spase:ScaleMin>{0,1}</spase:ScaleMin>
  <spase:ScaleMax>{0,1}</spase:ScaleMax>
  <spase:ScaleType>{0,1}</spase:ScaleType>
</spase:RenderingHints>
Source
<xsd:element name="RenderingHints" type="spase:RenderingHints" minOccurs="0" maxOccurs="unbounded"/>
Element spase:RenderingHints / spase:DisplayType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#DisplayType
Type spase:DisplayType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Image
A two-dimensional representation of data with values at each element of the array related to an intensity or a color.
enumeration Plasmagram
The characterization of signal strengths in active sounding measurements as a function of virtual range or signal delay time and sounding frequency. A Plasmagram is also referred to as an Ionogram.
enumeration Spectrogram
The characterization of signal strengths as a function of frequency (or energy) and time.
enumeration StackPlot
A representation of data showing multiple sets of observations on a single plot, possibly offsetting each plot by some uniform amount.
enumeration TimeSeries
A representation of data showing a set of observations taken at different points in time and charted as a time series.
enumeration WaveForm
Spatial or temporal variations of wave amplitude over wave-period timescales.
Source
<xsd:element name="DisplayType" type="spase:DisplayType" minOccurs="0" maxOccurs="1"/>

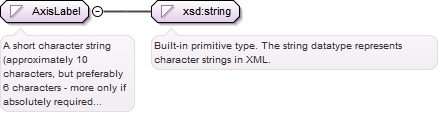

Element spase:RenderingHints / spase:AxisLabel
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#AxisLabel
Type spase:AxisLabel
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="AxisLabel" type="spase:AxisLabel" minOccurs="0" maxOccurs="1"/>
Element spase:RenderingHints / spase:ValueFormat
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ValueFormat
Type spase:ValueFormat
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ValueFormat" type="spase:ValueFormat" minOccurs="0" maxOccurs="1"/>

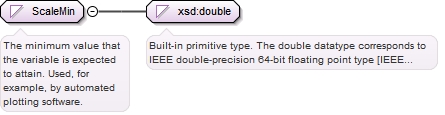

Element spase:RenderingHints / spase:ScaleMin
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ScaleMin
Type spase:ScaleMin
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ScaleMin" type="spase:ScaleMin" minOccurs="0" maxOccurs="1"/>

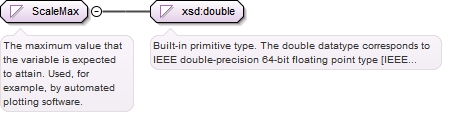

Element spase:RenderingHints / spase:ScaleMax
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ScaleMax
Type spase:ScaleMax
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ScaleMax" type="spase:ScaleMax" minOccurs="0" maxOccurs="1"/>
Element spase:RenderingHints / spase:ScaleType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ScaleType
Type spase:ScaleType
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration LinearScale
Intervals which are equally spaced.
enumeration LogScale
Intervals which are spaced proportionally to the logarithms of the values being represented.
Source
<xsd:element name="ScaleType" type="spase:ScaleType" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:Structure
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Structure_Size spase-2_1_0_xsd.tmp#Structure_Description spase-2_1_0_xsd.tmp#Structure_Element spase-2_1_0_xsd.tmp#Structure
Type spase:Structure
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Description, spase:Element, spase:Size
Instance
<spase:Structure xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Size>{0,1}</spase:Size>
  <spase:Description>{0,1}</spase:Description>
  <spase:Element>{0,unbounded}</spase:Element>
</spase:Structure>
Source
<xsd:element name="Structure" type="spase:Structure" minOccurs="0" maxOccurs="1"/>

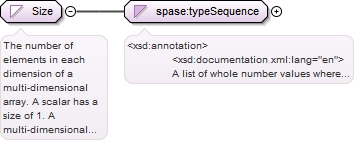

Element spase:Structure / spase:Size
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Size
Type spase:Size
Type hierarchy
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Size" type="spase:Size" minOccurs="0" maxOccurs="1"/>
Element spase:Structure / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>

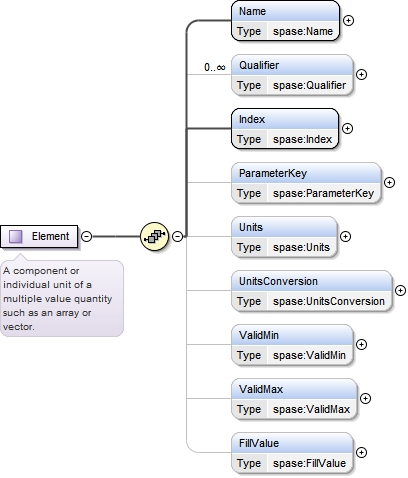

Element spase:Structure / spase:Element
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Element_Name spase-2_1_0_xsd.tmp#Element_Qualifier spase-2_1_0_xsd.tmp#Element_Index spase-2_1_0_xsd.tmp#Element_ParameterKey spase-2_1_0_xsd.tmp#Element_Units spase-2_1_0_xsd.tmp#Element_UnitsConversion spase-2_1_0_xsd.tmp#Element_ValidMin spase-2_1_0_xsd.tmp#Element_ValidMax spase-2_1_0_xsd.tmp#Element_FillValue spase-2_1_0_xsd.tmp#Element
Type spase:Element
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:FillValue, spase:Index, spase:Name, spase:ParameterKey, spase:Qualifier, spase:Units, spase:UnitsConversion, spase:ValidMax, spase:ValidMin
Instance
<spase:Element xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Name>{1,1}</spase:Name>
  <spase:Qualifier>{0,unbounded}</spase:Qualifier>
  <spase:Index>{1,1}</spase:Index>
  <spase:ParameterKey>{0,1}</spase:ParameterKey>
  <spase:Units>{0,1}</spase:Units>
  <spase:UnitsConversion>{0,1}</spase:UnitsConversion>
  <spase:ValidMin>{0,1}</spase:ValidMin>
  <spase:ValidMax>{0,1}</spase:ValidMax>
  <spase:FillValue>{0,1}</spase:FillValue>
</spase:Element>
Source
<xsd:element name="Element" type="spase:Element" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Element / spase:Name
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Name
Type spase:Name
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Name" type="spase:Name" minOccurs="1" maxOccurs="1"/>
Element spase:Element / spase:Qualifier
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Qualifier
Type spase:Qualifier
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Anisotropy
Direction-dependent property.
enumeration Array
A sequence of values corresponding to the elements in a rectilinear, n-dimension matrix. Each value can be referenced by a unique index.
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Characteristic
A quantity which can be easily identified and measured in a given environment.
enumeration Circular
Relative to polarization, right-hand circularly polarized light is defined such that the electric field is rotating clockwise as seen by an observer towards whom the wave is moving. Left-hand circularly polarized light is defined such that the electric field is rotating counterclockwise as seen by an observer towards whom the wave is moving. The polarization of magnetohydrodynamic waves is specified with respect to the ambient mean magnetic field : right-hand polarized waves have a transverse electric field component which turns in a right-handed sense (that of the gyrating electrons) around the magnetic field.
enumeration Column
A two-dimensional measure of a quantity. The column is the area over which the quantity is measured.
enumeration Component
Projection of a vector along one of the base axes of a coordinate system.
enumeration Component.I
Projection of a vector along the first named axis of a coordinate system.  Typically the X axis, but could be the R axis for an RTN coordinate system.
enumeration Component.J
Projection of a vector along the second named axis of a coordinate system.  Typically the Y axis, but could be the T axis for an RTN coordinate system.
enumeration Component.K
Projection of a vector along the third named axis of a coordinate system.  Typically the Z axis, but could be the N axis for an RTN coordinate system.
enumeration CrossSpectrum
The Fourier transform of the cross correlation of two physical or empirical observations.
enumeration Deviation
The difference between an observed value and the expected value of a quantity.
enumeration Differential
A flux measurement within a narrow range of energy and/or solid angle.
enumeration Direction
The spatial relation between an object and another object, the orientation of the object or the course along which the object points or moves.
enumeration DirectionAngle
The angle between a position vector or measured vector (or one of its projections onto a plane) and one of the base axes of the coordinate system.
enumeration DirectionAngle.AzimuthAngle
The angle between the projection into the i-j plane of a position or measured vector and the i-axis of the coordinate system. Mathematically defined as arctan(j/i).
enumeration DirectionAngle.ElevationAngle
The angle between the position or measured vector and the i-j plane of the coordinate system.  Mathematically defined as arctan(k/SQRT(i^2+j^2)).
enumeration DirectionAngle.PolarAngle
The angle between the position or measured vector and the k-axis of the coordinate system.  Mathematically defined as arctan([SQRT(i^2+j^2)]/k).
enumeration FieldAligned
The component of a quantity which is oriented in the same direction of a field.
enumeration Fit
Values that make an model agree with the data.
enumeration Group
An assemblage of values that a certain relation or common characteristic.
enumeration Integral
A flux measurement in a broad range of energy and solid angle.
enumeration Integral.Area
Integration over the extent of a planar region, or of the surface of a solid.
enumeration Integral.Bandwidth
Integration over the width a frequency band.
enumeration Integral.SolidAngle
Integration over the angle in three-dimensional space that an object subtends at a point.
enumeration LineOfSight
The line of sight is the line that connects the observer with the observed object. This expression is often used with measurements of Doppler velocity and magnetic field in magnetograms, where only the component of the vector field directed along the line of sight is measured.
enumeration Linear
Polarization where the E-field vector is confined to a given plane
enumeration Magnitude
A measure of the strength of a vector quantity or length of its representational vector.
enumeration Moment
Parameters determined by integration over a distribution function convolved with a power of velocity.
enumeration Parallel
Having the same direction as a given direction
enumeration Peak
The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.
enumeration Perpendicular
At right angles to a given direction.
enumeration Perturbation
Variations in the state of a system.
enumeration Phase
A point or portion in a recurring series of changes.
enumeration PhaseAngle
Phase difference between two or more waves, normally expressed in degrees.
enumeration Projection
A measure of the length of a position or measured vector as projected into a plane of the coordinate system.
enumeration Projection.IJ
A measure of the length of a position or measured vector projected into the i-j (typically X-Y) plane of the coordinate system.
enumeration Projection.IK
A measure of the length of a position or measured vector projected into the i-k (typically X-Z) plane of the coordinate system.
enumeration Projection.JK
A measure of the length of a position or measured vector projected into the j-k (typically Y-Z) plane of the coordinate system.
enumeration Pseudo
Similar to or having the appearance of something else. Can be used to indicate an estimation or approximation of a particular quantity.
enumeration Ratio
The relative magnitudes of two quantities.
enumeration Scalar
A quantity that is completely specified by its magnitude and has no direction.
enumeration Spectral
Characterized as a range or continuum of frequencies
enumeration StandardDeviation
The square root of the average of the squares of deviations about the mean of a set of data. Standard deviation is a statistical measure of spread or variability.
enumeration StokesParameters
A set of four parameters (usually called I,Q, U and V) which describe the polarization state of an electromagnetic wave propagating through space.
enumeration Symmetric
Equal distribution about one or more axes.
enumeration Tensor
A generalized linear quantity or geometrical entity that can be expressed as a multi-dimensional array relative to a choice of basis of the particular space on which it is defined.
enumeration Total
The summation of quantities over all possible species.
enumeration Trace
The sum of the elements on the main diagonal (the diagonal from the upper left to the lower right) of a square matrix.
enumeration Uncertainty
A statistically defined discrepancy between a measured quantity and the true value of that quantity that cannot be corrected by calculation or calibration.
enumeration Variance
A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.
enumeration Vector
A set of parameter values each along some independent variable (e.g., components of a field in three orthogonal spatial directions; atmospheric temperature values at several altitudes, or at a given latitude and longitude;).
Source
<xsd:element name="Qualifier" type="spase:Qualifier" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Element / spase:Index
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Index
Type spase:Index
Type hierarchy
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Index" type="spase:Index" minOccurs="1" maxOccurs="1"/>
Element spase:Element / spase:ParameterKey
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ParameterKey
Type spase:ParameterKey
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ParameterKey" type="spase:ParameterKey" minOccurs="0" maxOccurs="1"/>
Element spase:Element / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>
Element spase:Element / spase:UnitsConversion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#UnitsConversion
Type spase:UnitsConversion
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="UnitsConversion" type="spase:UnitsConversion" minOccurs="0" maxOccurs="1"/>
Element spase:Element / spase:ValidMin
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ValidMin
Type spase:ValidMin
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ValidMin" type="spase:ValidMin" minOccurs="0" maxOccurs="1"/>
Element spase:Element / spase:ValidMax
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ValidMax
Type spase:ValidMax
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ValidMax" type="spase:ValidMax" minOccurs="0" maxOccurs="1"/>
Element spase:Element / spase:FillValue
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#FillValue
Type spase:FillValue
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="FillValue" type="spase:FillValue" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:ValidMin
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ValidMin
Type spase:ValidMin
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ValidMin" type="spase:ValidMin" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:ValidMax
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ValidMax
Type spase:ValidMax
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ValidMax" type="spase:ValidMax" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:FillValue
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#FillValue
Type spase:FillValue
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="FillValue" type="spase:FillValue" minOccurs="0" maxOccurs="1"/>
Element spase:Parameter / spase:Field
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Field_Qualifier spase-2_1_0_xsd.tmp#Field_FieldQuantity spase-2_1_0_xsd.tmp#Field_FrequencyRange spase-2_1_0_xsd.tmp#Field
Type spase:Field
Properties
content complex
Model
Children spase:FieldQuantity, spase:FrequencyRange, spase:Qualifier
Instance
<spase:Field xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Qualifier>{0,unbounded}</spase:Qualifier>
  <spase:FieldQuantity>{1,1}</spase:FieldQuantity>
  <spase:FrequencyRange>{0,1}</spase:FrequencyRange>
</spase:Field>
Source
<xsd:element name="Field" type="spase:Field"/>
Element spase:Field / spase:Qualifier
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Qualifier
Type spase:Qualifier
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Anisotropy
Direction-dependent property.
enumeration Array
A sequence of values corresponding to the elements in a rectilinear, n-dimension matrix. Each value can be referenced by a unique index.
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Characteristic
A quantity which can be easily identified and measured in a given environment.
enumeration Circular
Relative to polarization, right-hand circularly polarized light is defined such that the electric field is rotating clockwise as seen by an observer towards whom the wave is moving. Left-hand circularly polarized light is defined such that the electric field is rotating counterclockwise as seen by an observer towards whom the wave is moving. The polarization of magnetohydrodynamic waves is specified with respect to the ambient mean magnetic field : right-hand polarized waves have a transverse electric field component which turns in a right-handed sense (that of the gyrating electrons) around the magnetic field.
enumeration Column
A two-dimensional measure of a quantity. The column is the area over which the quantity is measured.
enumeration Component
Projection of a vector along one of the base axes of a coordinate system.
enumeration Component.I
Projection of a vector along the first named axis of a coordinate system.  Typically the X axis, but could be the R axis for an RTN coordinate system.
enumeration Component.J
Projection of a vector along the second named axis of a coordinate system.  Typically the Y axis, but could be the T axis for an RTN coordinate system.
enumeration Component.K
Projection of a vector along the third named axis of a coordinate system.  Typically the Z axis, but could be the N axis for an RTN coordinate system.
enumeration CrossSpectrum
The Fourier transform of the cross correlation of two physical or empirical observations.
enumeration Deviation
The difference between an observed value and the expected value of a quantity.
enumeration Differential
A flux measurement within a narrow range of energy and/or solid angle.
enumeration Direction
The spatial relation between an object and another object, the orientation of the object or the course along which the object points or moves.
enumeration DirectionAngle
The angle between a position vector or measured vector (or one of its projections onto a plane) and one of the base axes of the coordinate system.
enumeration DirectionAngle.AzimuthAngle
The angle between the projection into the i-j plane of a position or measured vector and the i-axis of the coordinate system. Mathematically defined as arctan(j/i).
enumeration DirectionAngle.ElevationAngle
The angle between the position or measured vector and the i-j plane of the coordinate system.  Mathematically defined as arctan(k/SQRT(i^2+j^2)).
enumeration DirectionAngle.PolarAngle
The angle between the position or measured vector and the k-axis of the coordinate system.  Mathematically defined as arctan([SQRT(i^2+j^2)]/k).
enumeration FieldAligned
The component of a quantity which is oriented in the same direction of a field.
enumeration Fit
Values that make an model agree with the data.
enumeration Group
An assemblage of values that a certain relation or common characteristic.
enumeration Integral
A flux measurement in a broad range of energy and solid angle.
enumeration Integral.Area
Integration over the extent of a planar region, or of the surface of a solid.
enumeration Integral.Bandwidth
Integration over the width a frequency band.
enumeration Integral.SolidAngle
Integration over the angle in three-dimensional space that an object subtends at a point.
enumeration LineOfSight
The line of sight is the line that connects the observer with the observed object. This expression is often used with measurements of Doppler velocity and magnetic field in magnetograms, where only the component of the vector field directed along the line of sight is measured.
enumeration Linear
Polarization where the E-field vector is confined to a given plane
enumeration Magnitude
A measure of the strength of a vector quantity or length of its representational vector.
enumeration Moment
Parameters determined by integration over a distribution function convolved with a power of velocity.
enumeration Parallel
Having the same direction as a given direction
enumeration Peak
The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.
enumeration Perpendicular
At right angles to a given direction.
enumeration Perturbation
Variations in the state of a system.
enumeration Phase
A point or portion in a recurring series of changes.
enumeration PhaseAngle
Phase difference between two or more waves, normally expressed in degrees.
enumeration Projection
A measure of the length of a position or measured vector as projected into a plane of the coordinate system.
enumeration Projection.IJ
A measure of the length of a position or measured vector projected into the i-j (typically X-Y) plane of the coordinate system.
enumeration Projection.IK
A measure of the length of a position or measured vector projected into the i-k (typically X-Z) plane of the coordinate system.
enumeration Projection.JK
A measure of the length of a position or measured vector projected into the j-k (typically Y-Z) plane of the coordinate system.
enumeration Pseudo
Similar to or having the appearance of something else. Can be used to indicate an estimation or approximation of a particular quantity.
enumeration Ratio
The relative magnitudes of two quantities.
enumeration Scalar
A quantity that is completely specified by its magnitude and has no direction.
enumeration Spectral
Characterized as a range or continuum of frequencies
enumeration StandardDeviation
The square root of the average of the squares of deviations about the mean of a set of data. Standard deviation is a statistical measure of spread or variability.
enumeration StokesParameters
A set of four parameters (usually called I,Q, U and V) which describe the polarization state of an electromagnetic wave propagating through space.
enumeration Symmetric
Equal distribution about one or more axes.
enumeration Tensor
A generalized linear quantity or geometrical entity that can be expressed as a multi-dimensional array relative to a choice of basis of the particular space on which it is defined.
enumeration Total
The summation of quantities over all possible species.
enumeration Trace
The sum of the elements on the main diagonal (the diagonal from the upper left to the lower right) of a square matrix.
enumeration Uncertainty
A statistically defined discrepancy between a measured quantity and the true value of that quantity that cannot be corrected by calculation or calibration.
enumeration Variance
A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.
enumeration Vector
A set of parameter values each along some independent variable (e.g., components of a field in three orthogonal spatial directions; atmospheric temperature values at several altitudes, or at a given latitude and longitude;).
Source
<xsd:element name="Qualifier" type="spase:Qualifier" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Field / spase:FieldQuantity
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#FieldQuantity
Type spase:FieldQuantity
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Current
The flow of electrons through a conductor caused by a potential difference.
enumeration Electric
The physical attribute that exerts an electrical force.
enumeration Electromagnetic
Electric and magnetic field variations in time and space that propagate through a medium or a vacuum with the waves propagation, electric field, and magnetic field vectors forming an orthogonal triad.  Waves in this category are detected by having their field quantities measured.
enumeration Gyrofrequency
The number of gyrations around a magnetic guiding center (field line) a charged particle makes per unit time due to the Lorentz force.
enumeration Magnetic
The physical attribute attributed to a magnet or its equivalent.
enumeration PlasmaFrequency
A number-density-dependent characteristic frequency of a plasma.
enumeration Potential
A field which obeys Laplaces Equation.
enumeration PoyntingFlux
Electromagnetic energy flux transported by a wave characterized as the rate of energy transport per unit area per steradian.
Source
<xsd:element name="FieldQuantity" type="spase:FieldQuantity" minOccurs="1" maxOccurs="1"/>
Element spase:Field / spase:FrequencyRange
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#FrequencyRange_SpectralRange spase-2_1_0_xsd.tmp#FrequencyRange_Low spase-2_1_0_xsd.tmp#FrequencyRange_High spase-2_1_0_xsd.tmp#FrequencyRange_Units spase-2_1_0_xsd.tmp#FrequencyRange_Bin spase-2_1_0_xsd.tmp#FrequencyRange
Type spase:FrequencyRange
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Bin, spase:High, spase:Low, spase:SpectralRange, spase:Units
Instance
<spase:FrequencyRange xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:SpectralRange>{0,1}</spase:SpectralRange>
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{1,1}</spase:High>
  <spase:Units>{1,1}</spase:Units>
  <spase:Bin>{0,unbounded}</spase:Bin>
</spase:FrequencyRange>
Source
<xsd:element name="FrequencyRange" type="spase:FrequencyRange" minOccurs="0" maxOccurs="1"/>
Element spase:FrequencyRange / spase:SpectralRange
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#SpectralRange
Type spase:SpectralRange
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration CaK
A spectrum with a wavelength of range centered near 393.5 nm. VSO nickname: Ca-K image with range of 391.9 nm to 395.2 nm.
enumeration ExtremeUltraviolet
A spectrum with a wavelength range of 10.0 nm to 125.0nm. VSO nickname: EUV image with a range of of 10.0 nm to 125.0 nm
enumeration FarUltraviolet
A spectrum with a wavelength range of 122 nm to 200.0nm. VSO nickname: FUV image with a range of 122.0 nm to 200 nm
enumeration GammaRays
Photons with a wavelength range: 0.00001 to 0.001 nm
enumeration Halpha
A spectrum with a wavelength range centered at 656.3 nm. VSO nickname: H-alpha image with a spectrum range of of 655.8 nm to 656.8 nm.
enumeration HardXrays
Photons with a wavelength range: 0.001 to 0.1 nm and an energy range of 12 keV to 120 keV
enumeration He10830
A spectrum with a wavelength range centered at 1082.9 nm. VSO nickname: He 10830 image with a range of 1082.5 nm to 1083.3 nm.
enumeration He304
A spectrum centered around the resonance line of ionised helium at 304 Angstrom (30.4 nm).
enumeration Infrared
Photons with a wavelength range: 760 to 1.00x10^6 nm
enumeration K7699
A spectrum with a wavelength range centred at 769.9 nm. VSO nickname: K-7699 dopplergram with a range of 769.8 nm to 770.0 nm.
enumeration LBHBand
Lyman-Birge-Hopfield band in the far ultraviolet range with wavelength range of 140nm to 170 nm.
enumeration Microwave
Photons with a wavelength range: 1.00x10^6 to 1.50x10^7 nm
enumeration NaD
A spectrum with a wavelength range of centered at 589.3 nm. VSO nickname: Na-D image with a range of 588.8 nm to 589.8 nm.
enumeration Ni6768
A spectrum with a wavelength range centered at 676.8 nm. VSO nickname: Ni-6768 dopplergram with a range of of 676.7 nm to 676.9 nm.
enumeration Optical
Photons with a wavelength range: 380 to 760 nm
enumeration RadioFrequency
Photons with a wavelength range: 100,000 to 1.00x10^11 nm
enumeration SoftXRays
X-Rays with an energy range of 0.12 keV to 12 keV.
enumeration Ultraviolet
Photons with a wavelength range: 10 to 400 nm.
enumeration WhiteLight
Photons with a wavelength in the visible range for humans.
enumeration XRays
Photons with a wavelength range: 0.001 <= x < 10 nm
Source
<xsd:element name="SpectralRange" type="spase:SpectralRange" minOccurs="0" maxOccurs="1"/>
Element spase:FrequencyRange / spase:Low
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Low
Type spase:Low
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
Element spase:FrequencyRange / spase:High
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#High
Type spase:High
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="High" type="spase:High" minOccurs="1" maxOccurs="1"/>
Element spase:FrequencyRange / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="1" maxOccurs="1"/>
Element spase:FrequencyRange / spase:Bin
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Bin_BandName spase-2_1_0_xsd.tmp#Bin_Low spase-2_1_0_xsd.tmp#Bin_High spase-2_1_0_xsd.tmp#Bin
Type spase:Bin
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:BandName, spase:High, spase:Low
Instance
<spase:Bin xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:BandName>{0,1}</spase:BandName>
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{1,1}</spase:High>
</spase:Bin>
Source
<xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Bin / spase:BandName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#BandName
Type spase:BandName
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="BandName" type="spase:BandName" minOccurs="0" maxOccurs="1"/>
Element spase:Bin / spase:Low
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Low
Type spase:Low
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
Element spase:Bin / spase:High
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#High
Type spase:High
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="High" type="spase:High" minOccurs="1" maxOccurs="1"/>
Element spase:Parameter / spase:Particle
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Particle_ParticleType spase-2_1_0_xsd.tmp#Particle_Qualifier spase-2_1_0_xsd.tmp#Particle_ParticleQuantity spase-2_1_0_xsd.tmp#Particle_AtomicNumber spase-2_1_0_xsd.tmp#Particle_EnergyRange spase-2_1_0_xsd.tmp#Particle_AzimuthalAngleRange spase-2_1_0_xsd.tmp#Particle_PolarAngleRange spase-2_1_0_xsd.tmp#Particle
Type spase:Particle
Properties
content complex
Model
Children spase:AtomicNumber, spase:AzimuthalAngleRange, spase:EnergyRange, spase:ParticleQuantity, spase:ParticleType, spase:PolarAngleRange, spase:Qualifier
Instance
<spase:Particle xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ParticleType>{1,unbounded}</spase:ParticleType>
  <spase:Qualifier>{0,unbounded}</spase:Qualifier>
  <spase:ParticleQuantity>{1,1}</spase:ParticleQuantity>
  <spase:AtomicNumber>{0,unbounded}</spase:AtomicNumber>
  <spase:EnergyRange>{0,1}</spase:EnergyRange>
  <spase:AzimuthalAngleRange>{0,1}</spase:AzimuthalAngleRange>
  <spase:PolarAngleRange>{0,1}</spase:PolarAngleRange>
</spase:Particle>
Source
<xsd:element name="Particle" type="spase:Particle"/>
Element spase:Particle / spase:ParticleType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#ParticleType
Type spase:ParticleType
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
enumeration Aerosol
A suspension of fine solid or liquid particles in a gas.
enumeration AlphaParticle
A positively charged nuclear particle that consists of two protons and two neutrons.
enumeration Atom
Matter consisting of a nucleus surrounded by electrons which has no net charge.
enumeration Dust
Free microscopic particles of solid material.
enumeration Electron
An elementary particle consisting of a charge of negative electricity equal to about 1.602 x 10^(-19) Coulomb and having a mass when at rest of about 9.109534 x 10^(-28) gram.
enumeration Ion
An atom that has acquired a net electric charge by gaining or losing one or more electrons.(Note: Z>2)
enumeration Molecule
A group of atoms so united and combined by chemical affinity that they form a complete, integrated whole, being the smallest portion of any particular compound that can exist in a free state
enumeration Neutron
An elementary particle that has no net charge and is a constituent of atomic nuclei, and that has a mass slightly large than a proton (1.673 x 10^(-24) gram.)
enumeration Proton
An elementary particle that is a constituent of all atomic nuclei, that carries a positive charge numerically equal to the charge of an electron, and that has a mass of 1.673 x 10^(-24) gram.
Source
<xsd:element name="ParticleType" type="spase:ParticleType" minOccurs="1" maxOccurs="unbounded"/>
Element spase:Particle / spase:Qualifier
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-2_1_0_xsd.tmp#Qualifier
Type spase:Qualifier
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Anisotropy
Direction-dependent property.
enumeration Array
A sequence of values corresponding to the elements in a rectilinear, n-dimension matrix. Each value can be referenced by a unique index.
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Characteristic
A quantity which can be easily identified and measured in a given environment.
