Main schema spase-1.1.0.xsd
Namespace http://www.spase-group.org/data/schema
Properties
attribute form default unqualified
element form default qualified
version 1.1.0
Element spase:Spase
Namespace http://www.spase-group.org/data/schema

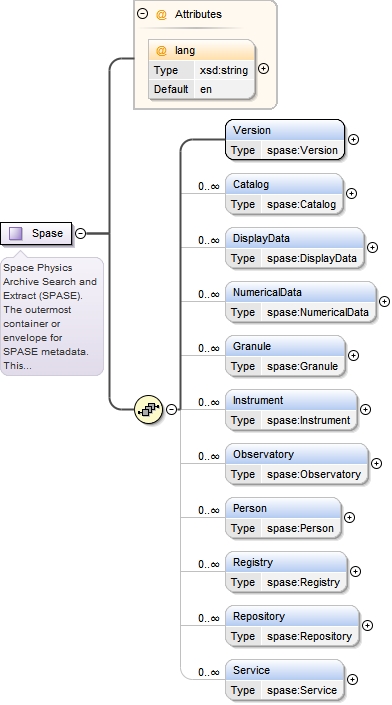

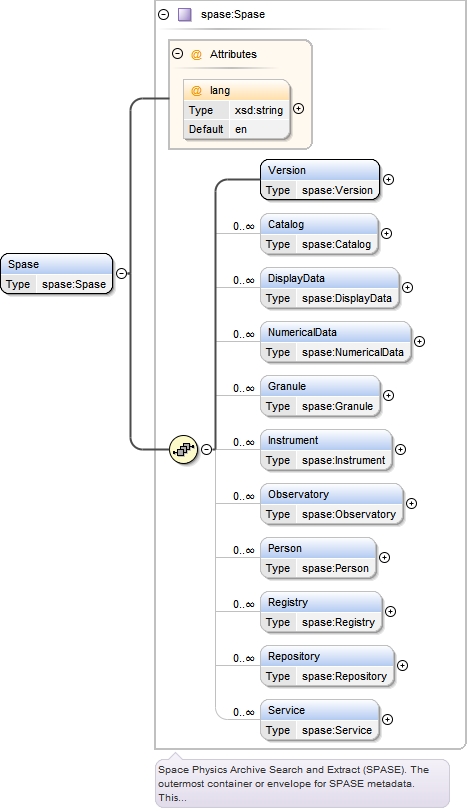

Diagram
Diagram spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_lang spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Version spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Catalog spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_DisplayData spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_NumericalData spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Granule spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Instrument spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Observatory spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Person spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Registry spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Repository spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Service spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase
Type spase:Spase
Properties
content complex
Model
Children spase:Catalog, spase:DisplayData, spase:Granule, spase:Instrument, spase:NumericalData, spase:Observatory, spase:Person, spase:Registry, spase:Repository, spase:Service, spase:Version
Instance
<spase:Spase lang="en" xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Version>{1,1}</spase:Version>
  <spase:Catalog>{0,unbounded}</spase:Catalog>

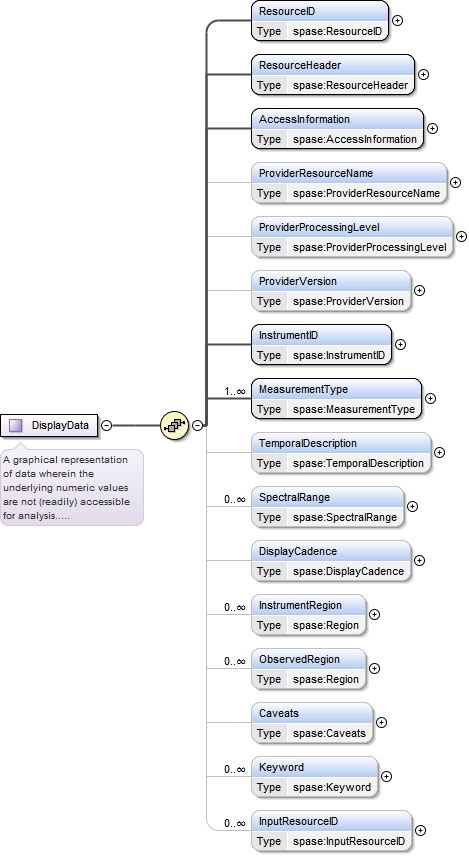

  <spase:DisplayData>{0,unbounded}</spase:DisplayData>

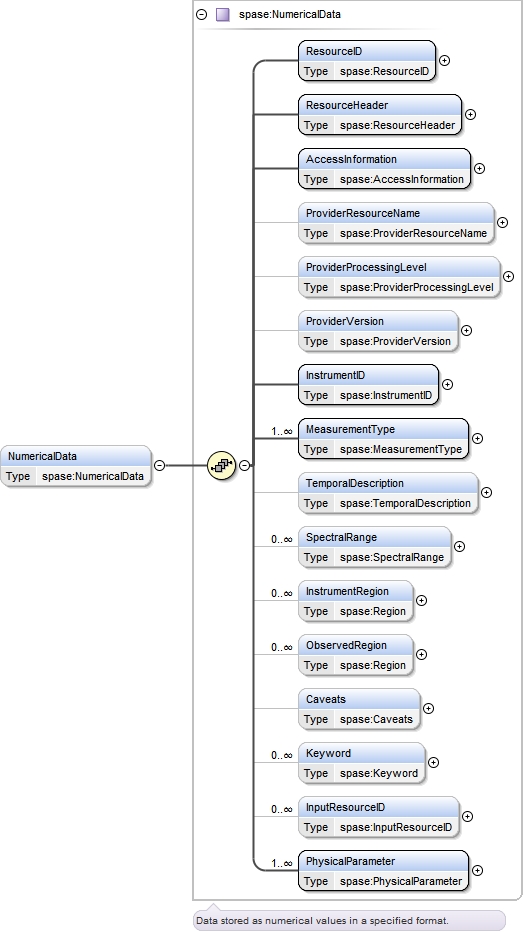

  <spase:NumericalData>{0,unbounded}</spase:NumericalData>

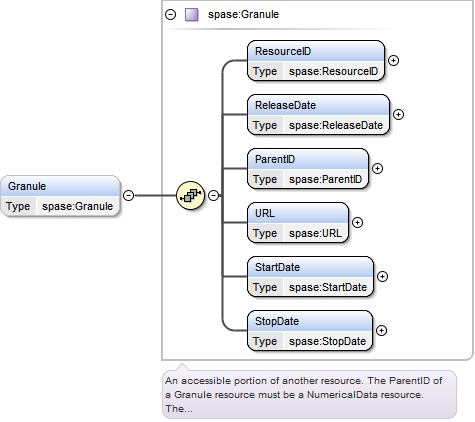

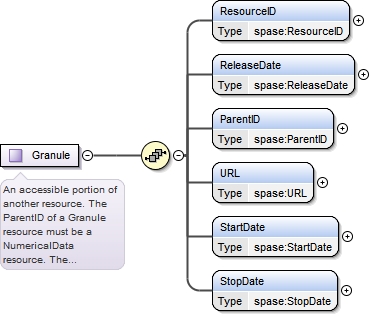

  <spase:Granule>{0,unbounded}</spase:Granule>
  <spase:Instrument>{0,unbounded}</spase:Instrument>

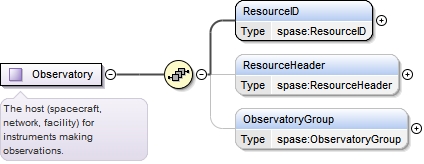

  <spase:Observatory>{0,unbounded}</spase:Observatory>

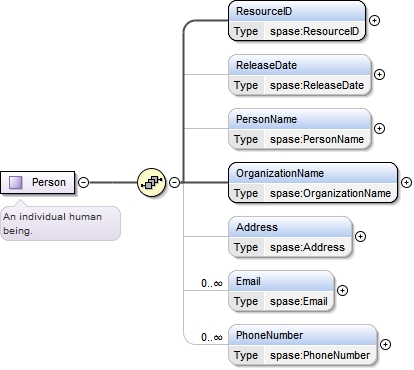

  <spase:Person>{0,unbounded}</spase:Person>

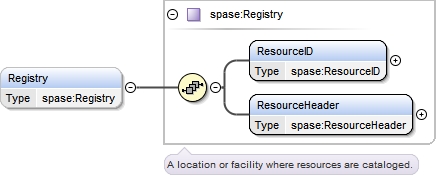

  <spase:Registry>{0,unbounded}</spase:Registry>
  <spase:Repository>{0,unbounded}</spase:Repository>
  <spase:Service>{0,unbounded}</spase:Service>
</spase:Spase>
Attributes
QName Type Default Use
lang xsd:string en optional
Source
<xsd:element name="Spase" type="spase:Spase"/>
Element spase:Spase / spase:Version
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Version
Type spase:Version
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration 1.1.0
Source
<xsd:element name="Version" type="spase:Version" minOccurs="1" maxOccurs="1"/>

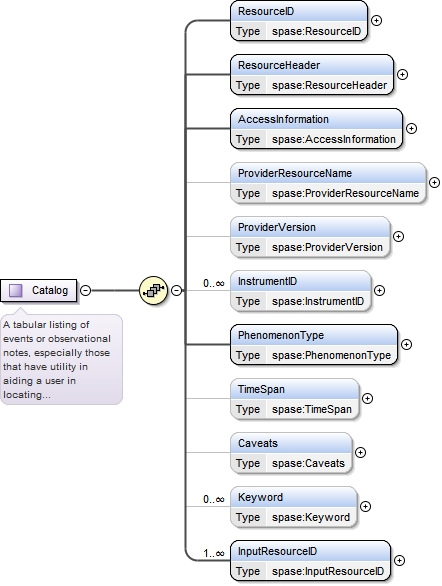

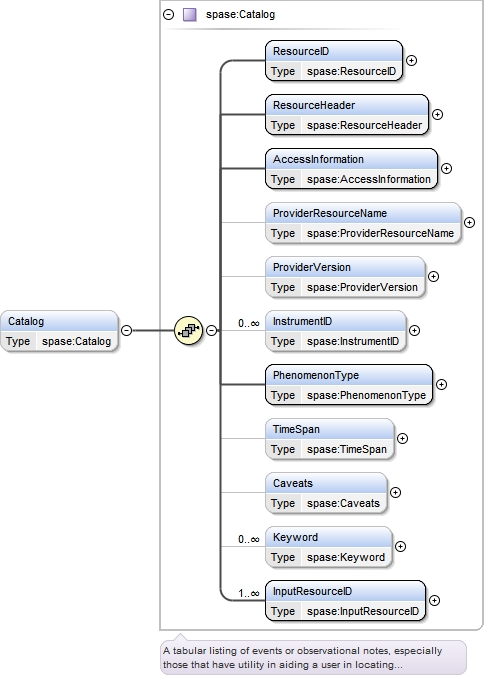

Element spase:Spase / spase:Catalog
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Catalog_ResourceID spase-1_1_0_xsd.tmp#Catalog_ResourceHeader spase-1_1_0_xsd.tmp#Catalog_AccessInformation spase-1_1_0_xsd.tmp#Catalog_ProviderResourceName spase-1_1_0_xsd.tmp#Catalog_ProviderVersion spase-1_1_0_xsd.tmp#Catalog_InstrumentID spase-1_1_0_xsd.tmp#Catalog_PhenomenonType spase-1_1_0_xsd.tmp#Catalog_TimeSpan spase-1_1_0_xsd.tmp#Catalog_Caveats spase-1_1_0_xsd.tmp#Catalog_Keyword spase-1_1_0_xsd.tmp#Catalog_InputResourceID spase-1_1_0_xsd.tmp#Catalog
Type spase:Catalog
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:AccessInformation, spase:Caveats, spase:InputResourceID, spase:InstrumentID, spase:Keyword, spase:PhenomenonType, spase:ProviderResourceName, spase:ProviderVersion, spase:ResourceHeader, spase:ResourceID, spase:TimeSpan
Instance
<spase:Catalog xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{1,1}</spase:ResourceHeader>
  <spase:AccessInformation>{1,1}</spase:AccessInformation>
  <spase:ProviderResourceName>{0,1}</spase:ProviderResourceName>

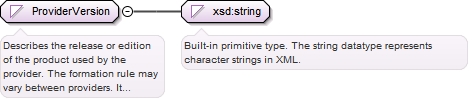

  <spase:ProviderVersion>{0,1}</spase:ProviderVersion>
  <spase:InstrumentID>{0,unbounded}</spase:InstrumentID>
  <spase:PhenomenonType>{1,1}</spase:PhenomenonType>

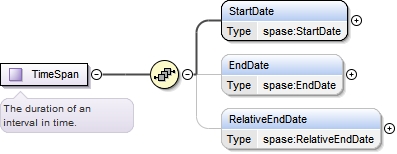

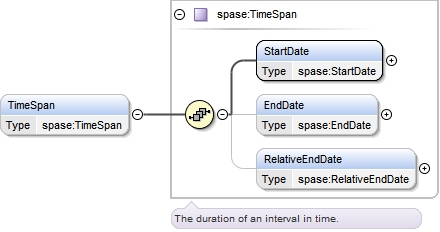

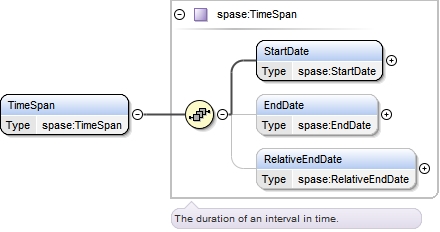

  <spase:TimeSpan>{0,1}</spase:TimeSpan>

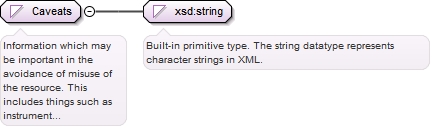

  <spase:Caveats>{0,1}</spase:Caveats>

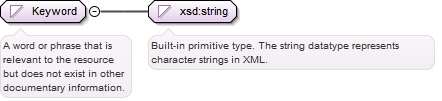

  <spase:Keyword>{0,unbounded}</spase:Keyword>
  <spase:InputResourceID>{1,unbounded}</spase:InputResourceID>
</spase:Catalog>
Source
<xsd:element name="Catalog" type="spase:Catalog" minOccurs="0" maxOccurs="unbounded"/>

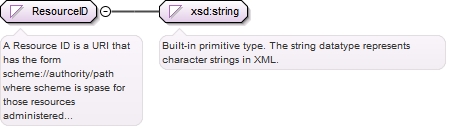

Element spase:Catalog / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>

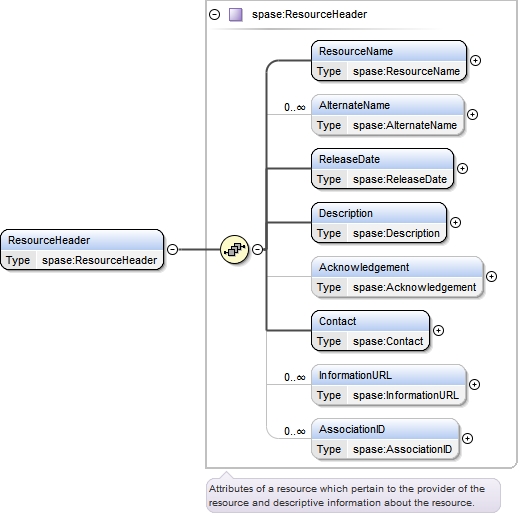

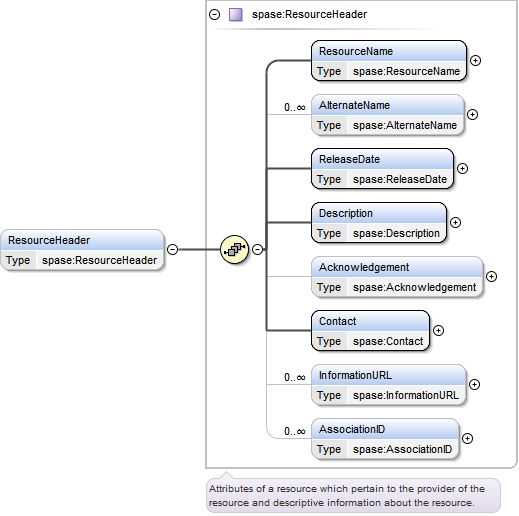

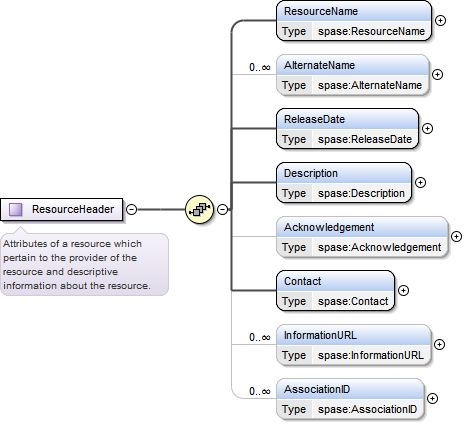

Element spase:Catalog / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID spase-1_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,1}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:AssociationID>{0,unbounded}</spase:AssociationID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
Element spase:ResourceHeader / spase:ResourceName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceName
Type spase:ResourceName
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceName" type="spase:ResourceName" minOccurs="1" maxOccurs="1"/>

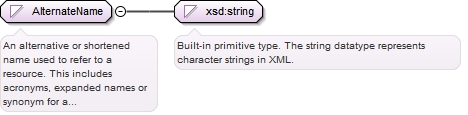

Element spase:ResourceHeader / spase:AlternateName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AlternateName
Type spase:AlternateName
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="AlternateName" type="spase:AlternateName" minOccurs="0" maxOccurs="unbounded"/>
Element spase:ResourceHeader / spase:ReleaseDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ReleaseDate
Type spase:ReleaseDate
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ReleaseDate" type="spase:ReleaseDate" minOccurs="1" maxOccurs="1"/>
Element spase:ResourceHeader / spase:Description
Namespace http://www.spase-group.org/data/schema

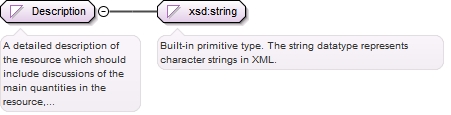

Diagram
Diagram spase-1_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="1" maxOccurs="1"/>

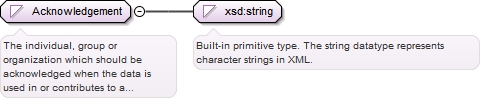

Element spase:ResourceHeader / spase:Acknowledgement
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Acknowledgement
Type spase:Acknowledgement
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Acknowledgement" type="spase:Acknowledgement" minOccurs="0" maxOccurs="1"/>

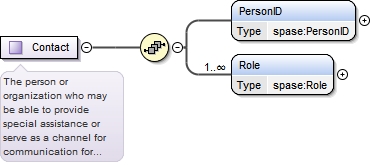

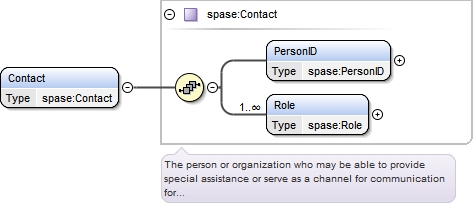

Element spase:ResourceHeader / spase:Contact
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Contact_PersonID spase-1_1_0_xsd.tmp#Contact_Role spase-1_1_0_xsd.tmp#Contact
Type spase:Contact
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:PersonID, spase:Role
Instance
<spase:Contact xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:PersonID>{1,1}</spase:PersonID>
  <spase:Role>{1,unbounded}</spase:Role>
</spase:Contact>
Source
<xsd:element name="Contact" type="spase:Contact" minOccurs="1" maxOccurs="1"/>
Element spase:Contact / spase:PersonID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#PersonID
Type spase:PersonID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="PersonID" type="spase:PersonID" minOccurs="1" maxOccurs="1"/>

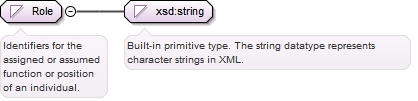

Element spase:Contact / spase:Role
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Role
Type spase:Role
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
enumeration CoInvestigator
An individual who is a scientific peer and major participant for an investigation.
enumeration DataProducer
An individual who generated the resource and is familiar with its provenance.
enumeration GeneralContact
An individual who can provide information on a range of subjects or who can direct you to a domain expert.
enumeration PrincipalInvestigator
An individual who is the administrative and scientific lead for an investigation.
enumeration ProjectScientist
An individual who is an expert in the phenomenon and related physics explored by the project. A project scientist may also have a manageral role within the project.
enumeration Scientist
An individual who is an expert in the phenomenon and related physics represented by the resource.
enumeration TeamLeader
An individual who is the scientific and administrative lead for an investigation.
enumeration TeamMember
An individual who is a major participant in an investigation.
enumeration TechnicalContact
An individual who can provide specific information with regard to the resource or supporting software
Source
<xsd:element name="Role" type="spase:Role" minOccurs="1" maxOccurs="unbounded"/>

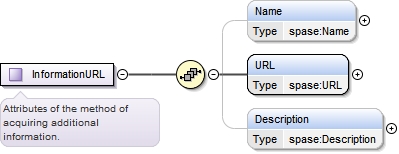

Element spase:ResourceHeader / spase:InformationURL
Namespace http://www.spase-group.org/data/schema

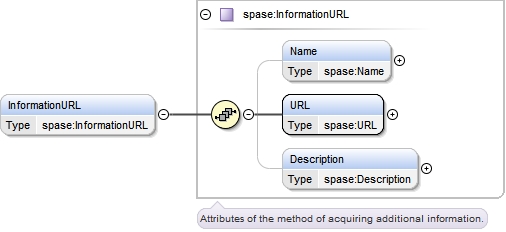

Diagram
Diagram spase-1_1_0_xsd.tmp#InformationURL_Name spase-1_1_0_xsd.tmp#InformationURL_URL spase-1_1_0_xsd.tmp#InformationURL_Description spase-1_1_0_xsd.tmp#InformationURL
Type spase:InformationURL
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:Description, spase:Name, spase:URL
Instance
<spase:InformationURL xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Name>{0,1}</spase:Name>
  <spase:URL>{1,1}</spase:URL>
  <spase:Description>{0,1}</spase:Description>
</spase:InformationURL>
Source
<xsd:element name="InformationURL" type="spase:InformationURL" minOccurs="0" maxOccurs="unbounded"/>
Element spase:InformationURL / spase:Name
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Name
Type spase:Name
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Name" type="spase:Name" minOccurs="0" maxOccurs="1"/>

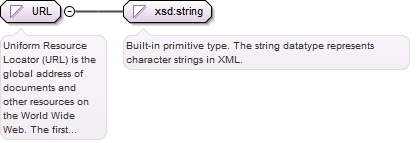

Element spase:InformationURL / spase:URL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#URL
Type spase:URL
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="URL" type="spase:URL" minOccurs="1" maxOccurs="1"/>
Element spase:InformationURL / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>
Element spase:ResourceHeader / spase:AssociationID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AssociationID
Type spase:AssociationID
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="AssociationID" type="spase:AssociationID" minOccurs="0" maxOccurs="unbounded"/>

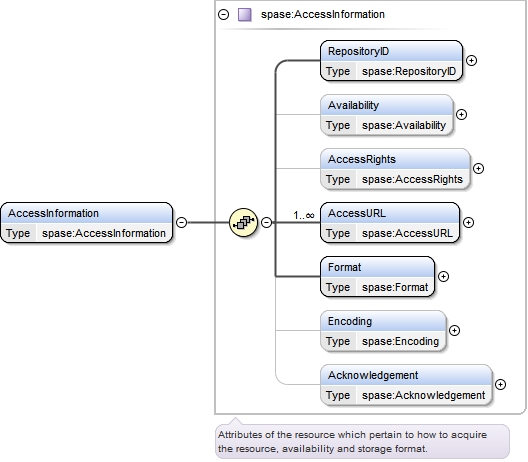

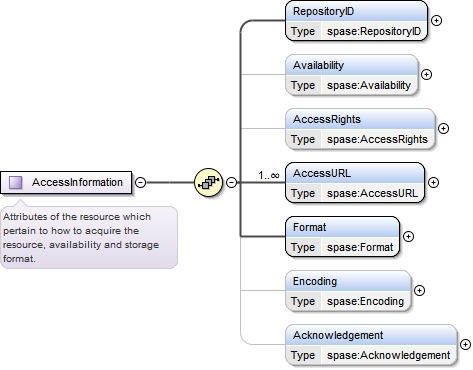

Element spase:Catalog / spase:AccessInformation
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AccessInformation_RepositoryID spase-1_1_0_xsd.tmp#AccessInformation_Availability spase-1_1_0_xsd.tmp#AccessInformation_AccessRights spase-1_1_0_xsd.tmp#AccessInformation_AccessURL spase-1_1_0_xsd.tmp#AccessInformation_Format spase-1_1_0_xsd.tmp#AccessInformation_Encoding spase-1_1_0_xsd.tmp#AccessInformation_Acknowledgement spase-1_1_0_xsd.tmp#AccessInformation
Type spase:AccessInformation
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:AccessRights, spase:AccessURL, spase:Acknowledgement, spase:Availability, spase:Encoding, spase:Format, spase:RepositoryID
Instance
<spase:AccessInformation xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:RepositoryID>{1,1}</spase:RepositoryID>
  <spase:Availability>{0,1}</spase:Availability>
  <spase:AccessRights>{0,1}</spase:AccessRights>
  <spase:AccessURL>{1,unbounded}</spase:AccessURL>
  <spase:Format>{1,1}</spase:Format>
  <spase:Encoding>{0,1}</spase:Encoding>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
</spase:AccessInformation>
Source
<xsd:element name="AccessInformation" type="spase:AccessInformation" minOccurs="1" maxOccurs="1"/>
Element spase:AccessInformation / spase:RepositoryID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#RepositoryID
Type spase:RepositoryID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="RepositoryID" type="spase:RepositoryID" minOccurs="1" maxOccurs="1"/>

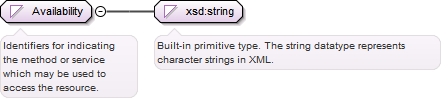

Element spase:AccessInformation / spase:Availability
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Availability
Type spase:Availability
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Offline
Not directly accessible electronically. This includes resources which may to be moved to an online status in response to a given request.
enumeration Online
Directly accessible electronically.
Source
<xsd:element name="Availability" type="spase:Availability" minOccurs="0" maxOccurs="1"/>

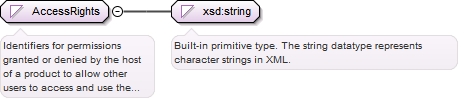

Element spase:AccessInformation / spase:AccessRights
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AccessRights
Type spase:AccessRights
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Open
Access is granted to everyone.
enumeration Restricted
Access to the product is regulated and requires some form of identification.
Source
<xsd:element name="AccessRights" type="spase:AccessRights" minOccurs="0" maxOccurs="1"/>

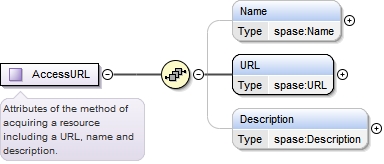

Element spase:AccessInformation / spase:AccessURL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AccessURL_Name spase-1_1_0_xsd.tmp#AccessURL_URL spase-1_1_0_xsd.tmp#AccessURL_Description spase-1_1_0_xsd.tmp#AccessURL
Type spase:AccessURL
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children spase:Description, spase:Name, spase:URL
Instance
<spase:AccessURL xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Name>{0,1}</spase:Name>
  <spase:URL>{1,1}</spase:URL>
  <spase:Description>{0,1}</spase:Description>
</spase:AccessURL>
Source
<xsd:element name="AccessURL" type="spase:AccessURL" minOccurs="1" maxOccurs="unbounded"/>
Element spase:AccessURL / spase:Name
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Name
Type spase:Name
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Name" type="spase:Name" minOccurs="0" maxOccurs="1"/>
Element spase:AccessURL / spase:URL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#URL
Type spase:URL
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="URL" type="spase:URL" minOccurs="1" maxOccurs="1"/>
Element spase:AccessURL / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>
Element spase:AccessInformation / spase:Format
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Format
Type spase:Format
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration AVI
Audio Video Interleave (AVI) a digital format for movies that conforms to the Microsoft Windows Resource Interchange File Format (RIFF).
enumeration Binary
A direct representation of the bits which may be stored in memory on a computer.
enumeration CDF
Common Data Format (CDF). A binary storage format developed at Goddard Space Flight Center (GSFC).
enumeration CEF
Cluster Exchange Format (CEF) is a self-documenting ASCII format designed for the exchange of data. There are two versions of CEF which are not totally compatible.
enumeration CEF1
Cluster Exchange Format (CEF), version 1, is a self-documenting ASCII format designed for the exchange of data. The metadata contains information compatible with the ISTP recommendations for CDF.
enumeration CEF2
Cluster Exchange Format (CEF), version 2, is a self-documenting ASCII format designed for the exchange of data and introduced for Cluster Active Archive. Compared to version 1, the metadata description of vectors and tensors is different.
enumeration FITS
Flexible Image Transport System (FITS) is a digital format primarily designed to store scientific data sets consisting of multi-dimensional arrays (1-D spectra, 2-D images or 3-D data cubes) and 2-dimensional tables containing rows and columns of data.
enumeration GIF
Graphic Interchange Format (GIF) first introduced in 1987 by CompuServe. GIF uses LZW compression and images are limited to 256 colours.
enumeration HDF
Hierarchical Data Format
enumeration HDF4
Hierarchical Data Format, Version 4
enumeration HDF5
Hierarchical Data Format, Version 5
enumeration HTML
A text file containing structured information represented in the HyperText Mark-up Language (HTML). See <http://www.w3.org/MarkUp/>
enumeration IDFS
Instrument Data File Set (IDFS) is a set of files written in a prescribed format which contain data, timing data, and meta-data. IDFS was developed at Southwest Research Institute (SwRI).
enumeration IDL
Interactive Data Language (IDL) save set. IDL is a proprietary format.
enumeration JPEG
A binary format for still images defined by the Joint Photographic Experts Group
enumeration MATLAB_4
MATLAB Workspace save set, version 4. MAT-files are double-precision, binary, MATLAB format files. MATLAB is a proprietary product of The MathWorks.
enumeration MATLAB_6
MATLAB Workspace save set, version 6. MAT-files are double-precision, binary, MATLAB format files. MATLAB is a proprietary product of The MathWorks.
enumeration MATLAB_7
MATLAB Workspace save set, version 7. MAT-files are double-precision, binary, MATLAB format files. Version 7 includes data compression and Unicode encoding. MATLAB is a proprietary product of The MathWorks.
enumeration MPEG
A digital format for movies defined by the Motion Picture Experts Group
enumeration NCAR
The National Center for Atmospheric Research (NCAR) format. A complete description of that standard is given in appendix C of the Report on Establishment & Operation of the Incoherent- Scatter Data Base, dated August 23, 1984, obtainable from NCAR, P.O. Box 3000 Boulder, Colorado 80307-3000.
enumeration NetCDF
Unidata Program Centers Network Common Data Form (NetCDF). A self-describing data portable data format for array-oriented data access. See <http://my.unidata.ucar.edu/content/software/netcdf>
enumeration PDF
A document expressed in the Portable Document Format (PDF) as defined by Adobe.
enumeration PNG
A digital format for still images. Portable Network Graphics (PNG)
enumeration QuickTime
A format for digital movies, as defined by Apple Computer. See <http://developer.apple.com/quicktime/>
enumeration TIFF
A binary format for still pictures. Tagged Image Format File (TIFF). Originally developed by Aldus and now controlled by Adobe.
enumeration Text
ASCII text
enumeration UDF
Universal Data Format (UDF). The Optical Technology Storage Associations Universal Disk Format, based on ISO 13346. See <http://www.osta.org/specs/index.htm>
enumeration VOTable
A proposed XML standard designed as a flexible storage and exchange format for tabular data.
enumeration XML
eXtensible Mark-up Language (XML). A structured format for representing information. See <http://www.w3.org/XML/>
Source
<xsd:element name="Format" type="spase:Format" minOccurs="1" maxOccurs="1"/>
Element spase:AccessInformation / spase:Encoding
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Encoding
Type spase:Encoding
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration ASCII
A sequence of characters that adheres to American Standard Code for Information Interchange (ASCII) which is an 7-bit character-coding scheme.
enumeration BZIP2
An open standard algorithm by Julian Seward using Burrows-Wheeler block sorting and Huffman coding. See <http://www.bzip.org/>
enumeration Base64
A data encoding scheme whereby binary-encoded data is converted to printable ASCII characters. It is defined as a MIME content transfer encoding for use in internet e-mail. The only characters used are the upper- and lower-case Roman alphabet characters (A-Z, a-z), the numerals (0-9), and the + and / symbols, with the = symbol as a special suffix (padding) code.
enumeration GZIP
An open standard algorithm distributed by GHU based on LZ77 and Huffman coding. See <http://www.gnu.org/software/gzip/gzip.html> or <http://www.gzip.org/>
enumeration None
A lack or absence of anything.
enumeration Unicode
Text in multi-byte Unicode format.
enumeration ZIP
An open standard for compression which is a variation of the LZW method and was originally used in the PKZIP utility.
Source
<xsd:element name="Encoding" type="spase:Encoding" minOccurs="0" maxOccurs="1"/>
Element spase:AccessInformation / spase:Acknowledgement
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Acknowledgement
Type spase:Acknowledgement
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Acknowledgement" type="spase:Acknowledgement" minOccurs="0" maxOccurs="1"/>
Element spase:Catalog / spase:ProviderResourceName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ProviderResourceName
Type spase:ProviderResourceName
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderResourceName" type="spase:ProviderResourceName" minOccurs="0" maxOccurs="1"/>
Element spase:Catalog / spase:ProviderVersion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ProviderVersion
Type spase:ProviderVersion
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderVersion" type="spase:ProviderVersion" minOccurs="0" maxOccurs="1"/>
Element spase:Catalog / spase:InstrumentID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#InstrumentID
Type spase:InstrumentID
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="InstrumentID" type="spase:InstrumentID" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Catalog / spase:PhenomenonType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#PhenomenonType
Type spase:PhenomenonType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration BowShockCrossing
A crossing of the boundary between the undisturbed (except for foreshock effects) solar wind and the shocked, decelerated solar wind of the magnetosheath.
enumeration CoronalMassEjection
A solar event which involves a burst of plasma which is ejected from the Sun into the interplanetary medium.
enumeration EnergeticSolarParticleEvent
An enhancement of interplanetary fluxes of energetic ions accelerated by interplanetary shocks and/or solar flares.
enumeration ForbushDecrease
A rapid decrease in the observed galactic cosmic ray intensity following the passage of an outwardly convecting interplanetary magnetic field disturbance, such as those associated with large CMEs, that sweep some galactic cosmic rays away from Earth.
enumeration GeomagneticStorm
A magnetospheric disturbance typically defined by variations in the horizontal component of the Earths surface magnetic field.  The variation typically starts with a field enhancement associated with a solar wind pressure pulse and continues with a field depression associated with an enhancement of the diamagnetic magnetospheric ring current.
enumeration InterplanetaryShock
A shock propagating generally antisunward through the slower solar wind, often seen in front of CME-associated plasma clouds.
enumeration MagnetopauseCrossing
A crossing of the interface between the shocked solar wind in the magnetosheath and the magnetic field and plasma in the magnetosphere.
enumeration SolarFlare
An explosive event in the Suns atmosphere which produces electromagnetic radiation across the electromagnetic spectrum at multiple wavelengths from long-wave radio to the shortest wavelength gamma rays.
enumeration SolarWindExtreme
Intervals of unusually large or small values of solar wind attributes such as flow speed and ion density.
Source
<xsd:element name="PhenomenonType" type="spase:PhenomenonType" minOccurs="1" maxOccurs="1"/>
Element spase:Catalog / spase:TimeSpan
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#TimeSpan_StartDate spase-1_1_0_xsd.tmp#TimeSpan_EndDate spase-1_1_0_xsd.tmp#TimeSpan_RelativeEndDate spase-1_1_0_xsd.tmp#TimeSpan
Type spase:TimeSpan
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:EndDate, spase:RelativeEndDate, spase:StartDate
Instance
<spase:TimeSpan xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:StartDate>{1,1}</spase:StartDate>
  <spase:EndDate>{0,1}</spase:EndDate>
  <spase:RelativeEndDate>{0,1}</spase:RelativeEndDate>
</spase:TimeSpan>
Source
<xsd:element name="TimeSpan" type="spase:TimeSpan" minOccurs="0" maxOccurs="1"/>
Element spase:TimeSpan / spase:StartDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#StartDate
Type spase:StartDate
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="StartDate" type="spase:StartDate" minOccurs="1" maxOccurs="1"/>
Element spase:TimeSpan / spase:EndDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#EndDate
Type spase:EndDate
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="EndDate" type="spase:EndDate" minOccurs="0" maxOccurs="1"/>
Element spase:TimeSpan / spase:RelativeEndDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#RelativeEndDate
Type spase:RelativeEndDate
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="RelativeEndDate" type="spase:RelativeEndDate" minOccurs="0" maxOccurs="1"/>
Element spase:Catalog / spase:Caveats
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Caveats
Type spase:Caveats
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
Element spase:Catalog / spase:Keyword
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Keyword
Type spase:Keyword
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="Keyword" type="spase:Keyword" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Catalog / spase:InputResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#InputResourceID
Type spase:InputResourceID
Properties
content simple
minOccurs 1
maxOccurs unbounded
Source
<xsd:element name="InputResourceID" type="spase:InputResourceID" minOccurs="1" maxOccurs="unbounded"/>

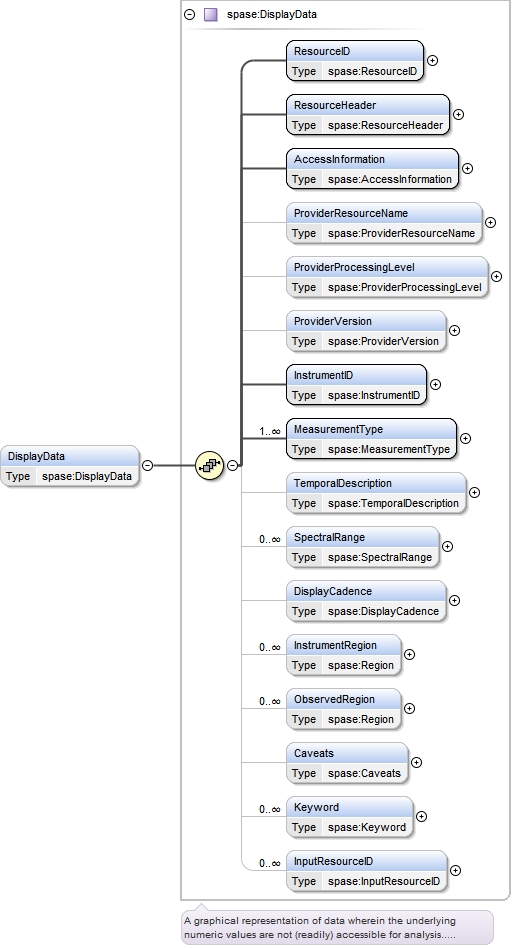

Element spase:Spase / spase:DisplayData
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#DisplayData_ResourceID spase-1_1_0_xsd.tmp#DisplayData_ResourceHeader spase-1_1_0_xsd.tmp#DisplayData_AccessInformation spase-1_1_0_xsd.tmp#DisplayData_ProviderResourceName spase-1_1_0_xsd.tmp#DisplayData_ProviderProcessingLevel spase-1_1_0_xsd.tmp#DisplayData_ProviderVersion spase-1_1_0_xsd.tmp#DisplayData_InstrumentID spase-1_1_0_xsd.tmp#DisplayData_MeasurementType spase-1_1_0_xsd.tmp#DisplayData_TemporalDescription spase-1_1_0_xsd.tmp#DisplayData_SpectralRange spase-1_1_0_xsd.tmp#DisplayData_DisplayCadence spase-1_1_0_xsd.tmp#DisplayData_InstrumentRegion spase-1_1_0_xsd.tmp#DisplayData_ObservedRegion spase-1_1_0_xsd.tmp#DisplayData_Caveats spase-1_1_0_xsd.tmp#DisplayData_Keyword spase-1_1_0_xsd.tmp#DisplayData_InputResourceID spase-1_1_0_xsd.tmp#DisplayData
Type spase:DisplayData
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:AccessInformation, spase:Caveats, spase:DisplayCadence, spase:InputResourceID, spase:InstrumentID, spase:InstrumentRegion, spase:Keyword, spase:MeasurementType, spase:ObservedRegion, spase:ProviderProcessingLevel, spase:ProviderResourceName, spase:ProviderVersion, spase:ResourceHeader, spase:ResourceID, spase:SpectralRange, spase:TemporalDescription
Instance
<spase:DisplayData xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{1,1}</spase:ResourceHeader>
  <spase:AccessInformation>{1,1}</spase:AccessInformation>
  <spase:ProviderResourceName>{0,1}</spase:ProviderResourceName>
  <spase:ProviderProcessingLevel>{0,1}</spase:ProviderProcessingLevel>
  <spase:ProviderVersion>{0,1}</spase:ProviderVersion>
  <spase:InstrumentID>{1,1}</spase:InstrumentID>
  <spase:MeasurementType>{1,unbounded}</spase:MeasurementType>
  <spase:TemporalDescription>{0,1}</spase:TemporalDescription>
  <spase:SpectralRange>{0,unbounded}</spase:SpectralRange>
  <spase:DisplayCadence>{0,1}</spase:DisplayCadence>
  <spase:InstrumentRegion>{0,unbounded}</spase:InstrumentRegion>
  <spase:ObservedRegion>{0,unbounded}</spase:ObservedRegion>
  <spase:Caveats>{0,1}</spase:Caveats>
  <spase:Keyword>{0,unbounded}</spase:Keyword>
  <spase:InputResourceID>{0,unbounded}</spase:InputResourceID>
</spase:DisplayData>
Source
<xsd:element name="DisplayData" type="spase:DisplayData" minOccurs="0" maxOccurs="unbounded"/>
Element spase:DisplayData / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:DisplayData / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID spase-1_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,1}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:AssociationID>{0,unbounded}</spase:AssociationID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
Element spase:DisplayData / spase:AccessInformation
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AccessInformation_RepositoryID spase-1_1_0_xsd.tmp#AccessInformation_Availability spase-1_1_0_xsd.tmp#AccessInformation_AccessRights spase-1_1_0_xsd.tmp#AccessInformation_AccessURL spase-1_1_0_xsd.tmp#AccessInformation_Format spase-1_1_0_xsd.tmp#AccessInformation_Encoding spase-1_1_0_xsd.tmp#AccessInformation_Acknowledgement spase-1_1_0_xsd.tmp#AccessInformation
Type spase:AccessInformation
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:AccessRights, spase:AccessURL, spase:Acknowledgement, spase:Availability, spase:Encoding, spase:Format, spase:RepositoryID
Instance
<spase:AccessInformation xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:RepositoryID>{1,1}</spase:RepositoryID>
  <spase:Availability>{0,1}</spase:Availability>
  <spase:AccessRights>{0,1}</spase:AccessRights>
  <spase:AccessURL>{1,unbounded}</spase:AccessURL>
  <spase:Format>{1,1}</spase:Format>
  <spase:Encoding>{0,1}</spase:Encoding>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
</spase:AccessInformation>
Source
<xsd:element name="AccessInformation" type="spase:AccessInformation" minOccurs="1" maxOccurs="1"/>
Element spase:DisplayData / spase:ProviderResourceName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ProviderResourceName
Type spase:ProviderResourceName
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderResourceName" type="spase:ProviderResourceName" minOccurs="0" maxOccurs="1"/>
Element spase:DisplayData / spase:ProviderProcessingLevel
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ProviderProcessingLevel
Type spase:ProviderProcessingLevel
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderProcessingLevel" type="spase:ProviderProcessingLevel" minOccurs="0" maxOccurs="1"/>
Element spase:DisplayData / spase:ProviderVersion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ProviderVersion
Type spase:ProviderVersion
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderVersion" type="spase:ProviderVersion" minOccurs="0" maxOccurs="1"/>
Element spase:DisplayData / spase:InstrumentID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#InstrumentID
Type spase:InstrumentID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="InstrumentID" type="spase:InstrumentID" minOccurs="1" maxOccurs="1"/>

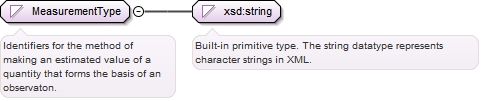

Element spase:DisplayData / spase:MeasurementType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#MeasurementType
Type spase:MeasurementType
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
enumeration ActivityIndex
An indication, derived from one or more measurements, of the level of activity of an object or region, such as sunspot number, F10.7 flux, Dst, or the Polar Cap Indices.
enumeration ChargedParticleFlux
Measurements of fluxes of charged or ionized particles at above thermal energies, including relativistic particles of solar and galactic origin. May give simple fluxes, but more complete distributions are sometimes possible. Composition measurements may also be made.
enumeration Dopplergram
A map or image depicting the spatial distribution of line-of-sight velocities of the observed object.
enumeration DynamicSpectra
A three-dimensional representation of successive spectra which allows time evolution to be clearly seen. Time is plotted along the abscissa, frequency (or particle energy) along the ordinate, and the spectral power density (or differential particle flux) is represented by different shades of grey, or color. This representation is also known as a spectrogram.
enumeration ElectricField
Measurements of electric field vectors (sometimes not all components) as a time series.
enumeration EnergeticParticles
Pieces of matter that are moving very fast. Energetic particles include protons, electrons, neutrons, neutrinos, the nuclei of atoms, and other sub-atomic particles.
enumeration ImageIntensity
Measurements of the two-dimensional distribution of the intensity of photons from some region or object such as the Sun or the polar auroral regions; can be in any wavelength band, and polarized, etc.
enumeration IonComposition
In situ measurements of the relative flux or density of electrically charged particles in the space environment. May give simple fluxes, but full distribution functions are sometimes measured.
enumeration Irradiance
A radiometric term for the power of electromagnetic radiation at a surface, per unit area. Irradiance is used when the electromagnetic radiation is incident on the surface. The SI unit of irradiance is watts per square meter (W7m-2).
enumeration MagneticField
Measurements of magnetic field vectors (sometimes not all components) as time series; can be space- or ground-based. Also, [Zeeman splitting, etc. based]: A region of space near a magnetized body where magnetic forces can be detected [as measured by methods such as Zeeman splitting, etc.]
enumeration Magnetogram
Measurements of the vector or line-of-sight magnetic field determined from remote sensing measurements of the detailed structure of spectral lines, including their splitting and polarization. (Magnetogram.)
enumeration NeutralAtomImages
Measurements of neutral atom fluxes as a function of look direction; often related to remote energetic charged particles that lose their charge through charge-exchange and then reach the detector on a line.
enumeration NeutralGas
Measurements of neutral atomic and molecular components of a body and its surrounding environments.
enumeration Profile
Measurements of a quantity as a function of height above an object such as the limb of a body.
enumeration Radiance
A radiometric measurement that describe the amount of electromagnetic radiation that passes through or is emitted from a particular area, and falls within a given solid angle in a specified direction. They are used to characterize both emission from diffuse sources and reflection from diffuse surfaces. The SI unit of radiance is watts per steradian per square meter (W7sr-17m-2).
enumeration RadioSoundings
Measurements of plasma density, magnetic field and possibly other parameters of the space environment by active probing of the plasma by radio waves.
enumeration RadioandPlasmaWaves
Measurements of electric and/or magnetic fields using electric or magnetic antennas at frequencies anywhere between the spacecraft spin frequency and the characteristic frequencies of the ambient plasma.  The output can be waveform, power spectral density, or other statistical parameters.
enumeration ThermalPlasma
Measurements of the plasma in the energy regime where the most of the plasma occurs.  May be the basic fluxes in the form of distribution functions or the derived bulk parameters (density, flow velocity, etc.).
Source
<xsd:element name="MeasurementType" type="spase:MeasurementType" minOccurs="1" maxOccurs="unbounded"/>

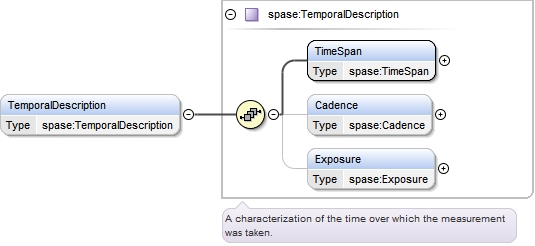

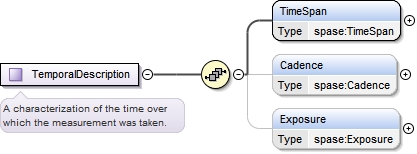

Element spase:DisplayData / spase:TemporalDescription
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#TemporalDescription_TimeSpan spase-1_1_0_xsd.tmp#TemporalDescription_Cadence spase-1_1_0_xsd.tmp#TemporalDescription_Exposure spase-1_1_0_xsd.tmp#TemporalDescription
Type spase:TemporalDescription
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Cadence, spase:Exposure, spase:TimeSpan
Instance
<spase:TemporalDescription xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:TimeSpan>{1,1}</spase:TimeSpan>
  <spase:Cadence>{0,1}</spase:Cadence>
  <spase:Exposure>{0,1}</spase:Exposure>
</spase:TemporalDescription>
Source
<xsd:element name="TemporalDescription" type="spase:TemporalDescription" minOccurs="0" maxOccurs="1"/>
Element spase:TemporalDescription / spase:TimeSpan
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#TimeSpan_StartDate spase-1_1_0_xsd.tmp#TimeSpan_EndDate spase-1_1_0_xsd.tmp#TimeSpan_RelativeEndDate spase-1_1_0_xsd.tmp#TimeSpan
Type spase:TimeSpan
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:EndDate, spase:RelativeEndDate, spase:StartDate
Instance
<spase:TimeSpan xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:StartDate>{1,1}</spase:StartDate>
  <spase:EndDate>{0,1}</spase:EndDate>
  <spase:RelativeEndDate>{0,1}</spase:RelativeEndDate>
</spase:TimeSpan>
Source
<xsd:element name="TimeSpan" type="spase:TimeSpan" minOccurs="1" maxOccurs="1"/>

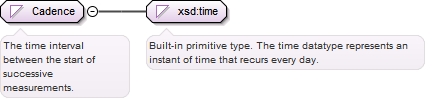

Element spase:TemporalDescription / spase:Cadence
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Cadence
Type spase:Cadence
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Cadence" type="spase:Cadence" minOccurs="0" maxOccurs="1"/>
Element spase:TemporalDescription / spase:Exposure
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Exposure
Type spase:Exposure
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Exposure" type="spase:Exposure" minOccurs="0" maxOccurs="1"/>

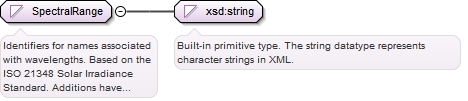

Element spase:DisplayData / spase:SpectralRange
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#SpectralRange
Type spase:SpectralRange
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration GammaRays
Photons with a wavelength range: 0.00001 to 0.001 nm
enumeration HardXrays
Photons with a wavelength range: 0.001 to 0.1 nm
enumeration Infrared
Photons with a wavelength range: 760 to 1.00x10^6 nm
enumeration Microwave
Photons with a wavelength range: 1.00x10^6 to 1.50x10^7 nm
enumeration Optical
Photons with a wavelength range: 380 to 760 nm
enumeration RadioFrequency
Photons with a wavelength range: 100,000 to 1.00x10^11 nm
enumeration Ultraviolet
Photons with a wavelength range: 10 to 400 nm
enumeration XRays
Photons with a wavelength range: 0.001 <= x < 10 nm
Source
<xsd:element name="SpectralRange" type="spase:SpectralRange" minOccurs="0" maxOccurs="unbounded"/>
Element spase:DisplayData / spase:DisplayCadence
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#DisplayCadence
Type spase:DisplayCadence
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="DisplayCadence" type="spase:DisplayCadence" minOccurs="0" maxOccurs="1"/>
Element spase:DisplayData / spase:InstrumentRegion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Region

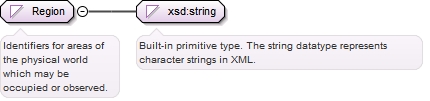

Type spase:Region
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Earth
The third planet from the sun in our solar system.
enumeration Earth.Magnetosheath
The region between the bow shock and the magnetopause, characterized by very turbulent plasma.

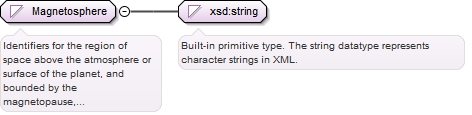

enumeration Earth.Magnetosphere
The region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of the planets magnetic field.
enumeration Earth.Magnetosphere.Magnetotail
The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).
enumeration Earth.Magnetosphere.Main
The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.
enumeration Earth.Magnetosphere.Polar
The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.
enumeration Earth.Magnetosphere.RadiationBelt
The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.

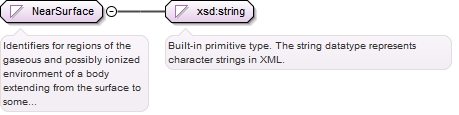

enumeration Earth.NearSurface
The gaseous and possibly ionized environment of a body extending from the surface to some specified altitude.  For the Earth, this altitude is 2000 km.
enumeration Earth.NearSurface.Atmosphere
The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.
enumeration Earth.NearSurface.AuroralRegion
The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.
enumeration Earth.NearSurface.Ionosphere
The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..
enumeration Earth.Surface
The outermost area of a solid object.

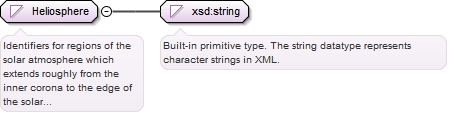

enumeration Heliosphere
The solar atmosphere extending roughly from the outer corona to the edge of the solar plasma at the heliopause separating primarily solar plasma from interstellar plasma.
enumeration Heliosphere.Inner
The region of the heliosphere extending radially out from the surface of the Sun to 1 AU.
enumeration Heliosphere.NearEarth
The heliospheric region near the Earth which extends to and includes the area near the L1 and L2 Lagrange point.
enumeration Heliosphere.Outer
The region of the heliosphere from, but not including, 1 AU to the farthest extent of the heliosphere (heliopause).
enumeration Heliosphere.Remote1AU
The heliospheric region near the Earths orbit, but exclusive of the region near the Earth.

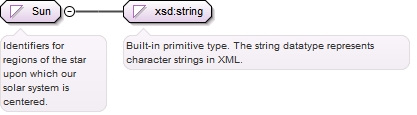

enumeration Sun
The star upon which our solar system is centered.
enumeration Sun.Chromosphere
The region of the Suns (or a stars) atmosphere above the temperature minimum and below the Transition Region.  The solar chromosphere is approximately 400 km to 2100 km above the photosphere, and characterized by temperatures from 4500 - 28000 K.
enumeration Sun.Corona
The outermost atmospheric region of the Sun or a star, characterized by ionization temperatures above 10^5 K.  The solar corona starts at about 2100 km above the photosphere; there is no generally defined upper limit.
enumeration Sun.Interior
The region inside the body which is not visible from outside the body.
enumeration Sun.Photosphere
The atmospheric layer of the Sun or a star from which continuum radiation, especially optical, is emitted to space.  For the Sun, the photosphere is about 500 km thick.
enumeration Sun.TransitionRegion
A very narrow (<100 km) layer between the chromosphere and the corona where the temperature rises abruptly from about 8000 to about 500,000 K.
Source
<xsd:element name="InstrumentRegion" type="spase:Region" minOccurs="0" maxOccurs="unbounded"/>
Element spase:DisplayData / spase:ObservedRegion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Region
Type spase:Region
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Earth
The third planet from the sun in our solar system.
enumeration Earth.Magnetosheath
The region between the bow shock and the magnetopause, characterized by very turbulent plasma.
enumeration Earth.Magnetosphere
The region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of the planets magnetic field.
enumeration Earth.Magnetosphere.Magnetotail
The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).
enumeration Earth.Magnetosphere.Main
The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.
enumeration Earth.Magnetosphere.Polar
The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.
enumeration Earth.Magnetosphere.RadiationBelt
The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.
enumeration Earth.NearSurface
The gaseous and possibly ionized environment of a body extending from the surface to some specified altitude.  For the Earth, this altitude is 2000 km.
enumeration Earth.NearSurface.Atmosphere
The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.
enumeration Earth.NearSurface.AuroralRegion
The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.
enumeration Earth.NearSurface.Ionosphere
The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..
enumeration Earth.Surface
The outermost area of a solid object.
enumeration Heliosphere
The solar atmosphere extending roughly from the outer corona to the edge of the solar plasma at the heliopause separating primarily solar plasma from interstellar plasma.
enumeration Heliosphere.Inner
The region of the heliosphere extending radially out from the surface of the Sun to 1 AU.
enumeration Heliosphere.NearEarth
The heliospheric region near the Earth which extends to and includes the area near the L1 and L2 Lagrange point.
enumeration Heliosphere.Outer
The region of the heliosphere from, but not including, 1 AU to the farthest extent of the heliosphere (heliopause).
enumeration Heliosphere.Remote1AU
The heliospheric region near the Earths orbit, but exclusive of the region near the Earth.
enumeration Sun
The star upon which our solar system is centered.
enumeration Sun.Chromosphere
The region of the Suns (or a stars) atmosphere above the temperature minimum and below the Transition Region.  The solar chromosphere is approximately 400 km to 2100 km above the photosphere, and characterized by temperatures from 4500 - 28000 K.
enumeration Sun.Corona
The outermost atmospheric region of the Sun or a star, characterized by ionization temperatures above 10^5 K.  The solar corona starts at about 2100 km above the photosphere; there is no generally defined upper limit.
enumeration Sun.Interior
The region inside the body which is not visible from outside the body.
enumeration Sun.Photosphere
The atmospheric layer of the Sun or a star from which continuum radiation, especially optical, is emitted to space.  For the Sun, the photosphere is about 500 km thick.
enumeration Sun.TransitionRegion
A very narrow (<100 km) layer between the chromosphere and the corona where the temperature rises abruptly from about 8000 to about 500,000 K.
Source
<xsd:element name="ObservedRegion" type="spase:Region" minOccurs="0" maxOccurs="unbounded"/>
Element spase:DisplayData / spase:Caveats
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Caveats
Type spase:Caveats
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
Element spase:DisplayData / spase:Keyword
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Keyword
Type spase:Keyword
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="Keyword" type="spase:Keyword" minOccurs="0" maxOccurs="unbounded"/>
Element spase:DisplayData / spase:InputResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#InputResourceID
Type spase:InputResourceID
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="InputResourceID" type="spase:InputResourceID" minOccurs="0" maxOccurs="unbounded"/>

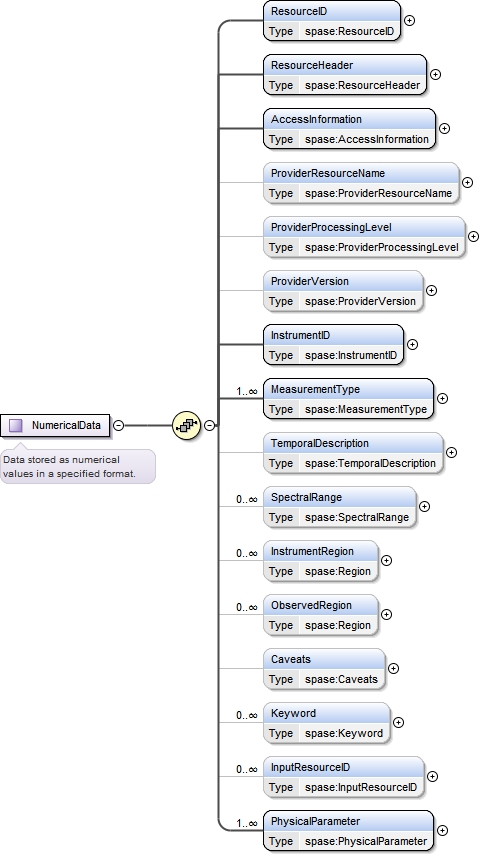

Element spase:Spase / spase:NumericalData
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#NumericalData_ResourceID spase-1_1_0_xsd.tmp#NumericalData_ResourceHeader spase-1_1_0_xsd.tmp#NumericalData_AccessInformation spase-1_1_0_xsd.tmp#NumericalData_ProviderResourceName spase-1_1_0_xsd.tmp#NumericalData_ProviderProcessingLevel spase-1_1_0_xsd.tmp#NumericalData_ProviderVersion spase-1_1_0_xsd.tmp#NumericalData_InstrumentID spase-1_1_0_xsd.tmp#NumericalData_MeasurementType spase-1_1_0_xsd.tmp#NumericalData_TemporalDescription spase-1_1_0_xsd.tmp#NumericalData_SpectralRange spase-1_1_0_xsd.tmp#NumericalData_InstrumentRegion spase-1_1_0_xsd.tmp#NumericalData_ObservedRegion spase-1_1_0_xsd.tmp#NumericalData_Caveats spase-1_1_0_xsd.tmp#NumericalData_Keyword spase-1_1_0_xsd.tmp#NumericalData_InputResourceID spase-1_1_0_xsd.tmp#NumericalData_PhysicalParameter spase-1_1_0_xsd.tmp#NumericalData
Type spase:NumericalData
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:AccessInformation, spase:Caveats, spase:InputResourceID, spase:InstrumentID, spase:InstrumentRegion, spase:Keyword, spase:MeasurementType, spase:ObservedRegion, spase:PhysicalParameter, spase:ProviderProcessingLevel, spase:ProviderResourceName, spase:ProviderVersion, spase:ResourceHeader, spase:ResourceID, spase:SpectralRange, spase:TemporalDescription
Instance
<spase:NumericalData xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{1,1}</spase:ResourceHeader>
  <spase:AccessInformation>{1,1}</spase:AccessInformation>
  <spase:ProviderResourceName>{0,1}</spase:ProviderResourceName>
  <spase:ProviderProcessingLevel>{0,1}</spase:ProviderProcessingLevel>
  <spase:ProviderVersion>{0,1}</spase:ProviderVersion>
  <spase:InstrumentID>{1,1}</spase:InstrumentID>
  <spase:MeasurementType>{1,unbounded}</spase:MeasurementType>
  <spase:TemporalDescription>{0,1}</spase:TemporalDescription>
  <spase:SpectralRange>{0,unbounded}</spase:SpectralRange>
  <spase:InstrumentRegion>{0,unbounded}</spase:InstrumentRegion>
  <spase:ObservedRegion>{0,unbounded}</spase:ObservedRegion>
  <spase:Caveats>{0,1}</spase:Caveats>
  <spase:Keyword>{0,unbounded}</spase:Keyword>
  <spase:InputResourceID>{0,unbounded}</spase:InputResourceID>

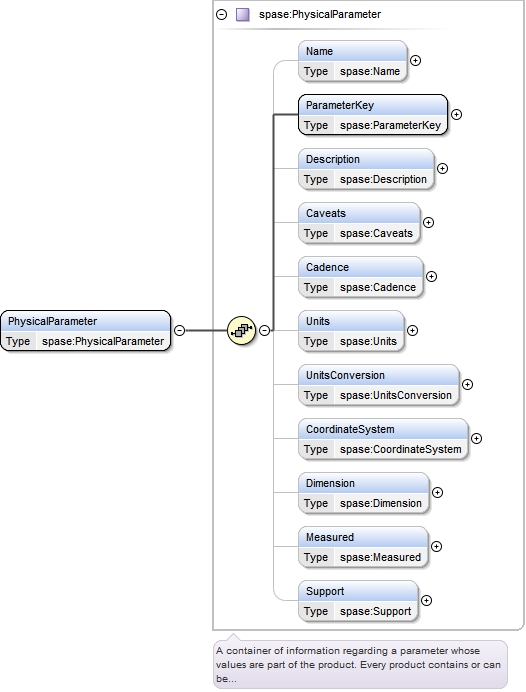

  <spase:PhysicalParameter>{1,unbounded}</spase:PhysicalParameter>
</spase:NumericalData>
Source
<xsd:element name="NumericalData" type="spase:NumericalData" minOccurs="0" maxOccurs="unbounded"/>
Element spase:NumericalData / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:NumericalData / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID spase-1_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,1}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:AssociationID>{0,unbounded}</spase:AssociationID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
Element spase:NumericalData / spase:AccessInformation
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AccessInformation_RepositoryID spase-1_1_0_xsd.tmp#AccessInformation_Availability spase-1_1_0_xsd.tmp#AccessInformation_AccessRights spase-1_1_0_xsd.tmp#AccessInformation_AccessURL spase-1_1_0_xsd.tmp#AccessInformation_Format spase-1_1_0_xsd.tmp#AccessInformation_Encoding spase-1_1_0_xsd.tmp#AccessInformation_Acknowledgement spase-1_1_0_xsd.tmp#AccessInformation
Type spase:AccessInformation
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:AccessRights, spase:AccessURL, spase:Acknowledgement, spase:Availability, spase:Encoding, spase:Format, spase:RepositoryID
Instance
<spase:AccessInformation xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:RepositoryID>{1,1}</spase:RepositoryID>
  <spase:Availability>{0,1}</spase:Availability>
  <spase:AccessRights>{0,1}</spase:AccessRights>
  <spase:AccessURL>{1,unbounded}</spase:AccessURL>
  <spase:Format>{1,1}</spase:Format>
  <spase:Encoding>{0,1}</spase:Encoding>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
</spase:AccessInformation>
Source
<xsd:element name="AccessInformation" type="spase:AccessInformation" minOccurs="1" maxOccurs="1"/>
Element spase:NumericalData / spase:ProviderResourceName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ProviderResourceName
Type spase:ProviderResourceName
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderResourceName" type="spase:ProviderResourceName" minOccurs="0" maxOccurs="1"/>
Element spase:NumericalData / spase:ProviderProcessingLevel
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ProviderProcessingLevel
Type spase:ProviderProcessingLevel
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderProcessingLevel" type="spase:ProviderProcessingLevel" minOccurs="0" maxOccurs="1"/>
Element spase:NumericalData / spase:ProviderVersion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ProviderVersion
Type spase:ProviderVersion
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ProviderVersion" type="spase:ProviderVersion" minOccurs="0" maxOccurs="1"/>
Element spase:NumericalData / spase:InstrumentID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#InstrumentID
Type spase:InstrumentID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="InstrumentID" type="spase:InstrumentID" minOccurs="1" maxOccurs="1"/>
Element spase:NumericalData / spase:MeasurementType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#MeasurementType
Type spase:MeasurementType
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
enumeration ActivityIndex
An indication, derived from one or more measurements, of the level of activity of an object or region, such as sunspot number, F10.7 flux, Dst, or the Polar Cap Indices.
enumeration ChargedParticleFlux
Measurements of fluxes of charged or ionized particles at above thermal energies, including relativistic particles of solar and galactic origin. May give simple fluxes, but more complete distributions are sometimes possible. Composition measurements may also be made.
enumeration Dopplergram
A map or image depicting the spatial distribution of line-of-sight velocities of the observed object.
enumeration DynamicSpectra
A three-dimensional representation of successive spectra which allows time evolution to be clearly seen. Time is plotted along the abscissa, frequency (or particle energy) along the ordinate, and the spectral power density (or differential particle flux) is represented by different shades of grey, or color. This representation is also known as a spectrogram.
enumeration ElectricField
Measurements of electric field vectors (sometimes not all components) as a time series.
enumeration EnergeticParticles
Pieces of matter that are moving very fast. Energetic particles include protons, electrons, neutrons, neutrinos, the nuclei of atoms, and other sub-atomic particles.
enumeration ImageIntensity
Measurements of the two-dimensional distribution of the intensity of photons from some region or object such as the Sun or the polar auroral regions; can be in any wavelength band, and polarized, etc.
enumeration IonComposition
In situ measurements of the relative flux or density of electrically charged particles in the space environment. May give simple fluxes, but full distribution functions are sometimes measured.
enumeration Irradiance
A radiometric term for the power of electromagnetic radiation at a surface, per unit area. Irradiance is used when the electromagnetic radiation is incident on the surface. The SI unit of irradiance is watts per square meter (W7m-2).
enumeration MagneticField
Measurements of magnetic field vectors (sometimes not all components) as time series; can be space- or ground-based. Also, [Zeeman splitting, etc. based]: A region of space near a magnetized body where magnetic forces can be detected [as measured by methods such as Zeeman splitting, etc.]
enumeration Magnetogram
Measurements of the vector or line-of-sight magnetic field determined from remote sensing measurements of the detailed structure of spectral lines, including their splitting and polarization. (Magnetogram.)
enumeration NeutralAtomImages
Measurements of neutral atom fluxes as a function of look direction; often related to remote energetic charged particles that lose their charge through charge-exchange and then reach the detector on a line.
enumeration NeutralGas
Measurements of neutral atomic and molecular components of a body and its surrounding environments.
enumeration Profile
Measurements of a quantity as a function of height above an object such as the limb of a body.
enumeration Radiance
A radiometric measurement that describe the amount of electromagnetic radiation that passes through or is emitted from a particular area, and falls within a given solid angle in a specified direction. They are used to characterize both emission from diffuse sources and reflection from diffuse surfaces. The SI unit of radiance is watts per steradian per square meter (W7sr-17m-2).
enumeration RadioSoundings
Measurements of plasma density, magnetic field and possibly other parameters of the space environment by active probing of the plasma by radio waves.
enumeration RadioandPlasmaWaves
Measurements of electric and/or magnetic fields using electric or magnetic antennas at frequencies anywhere between the spacecraft spin frequency and the characteristic frequencies of the ambient plasma.  The output can be waveform, power spectral density, or other statistical parameters.
enumeration ThermalPlasma
Measurements of the plasma in the energy regime where the most of the plasma occurs.  May be the basic fluxes in the form of distribution functions or the derived bulk parameters (density, flow velocity, etc.).
Source
<xsd:element name="MeasurementType" type="spase:MeasurementType" minOccurs="1" maxOccurs="unbounded"/>
Element spase:NumericalData / spase:TemporalDescription
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#TemporalDescription_TimeSpan spase-1_1_0_xsd.tmp#TemporalDescription_Cadence spase-1_1_0_xsd.tmp#TemporalDescription_Exposure spase-1_1_0_xsd.tmp#TemporalDescription
Type spase:TemporalDescription
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Cadence, spase:Exposure, spase:TimeSpan
Instance
<spase:TemporalDescription xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:TimeSpan>{1,1}</spase:TimeSpan>
  <spase:Cadence>{0,1}</spase:Cadence>
  <spase:Exposure>{0,1}</spase:Exposure>
</spase:TemporalDescription>
Source
<xsd:element name="TemporalDescription" type="spase:TemporalDescription" minOccurs="0" maxOccurs="1"/>
Element spase:NumericalData / spase:SpectralRange
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#SpectralRange
Type spase:SpectralRange
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration GammaRays
Photons with a wavelength range: 0.00001 to 0.001 nm
enumeration HardXrays
Photons with a wavelength range: 0.001 to 0.1 nm
enumeration Infrared
Photons with a wavelength range: 760 to 1.00x10^6 nm
enumeration Microwave
Photons with a wavelength range: 1.00x10^6 to 1.50x10^7 nm
enumeration Optical
Photons with a wavelength range: 380 to 760 nm
enumeration RadioFrequency
Photons with a wavelength range: 100,000 to 1.00x10^11 nm
enumeration Ultraviolet
Photons with a wavelength range: 10 to 400 nm
enumeration XRays
Photons with a wavelength range: 0.001 <= x < 10 nm
Source
<xsd:element name="SpectralRange" type="spase:SpectralRange" minOccurs="0" maxOccurs="unbounded"/>
Element spase:NumericalData / spase:InstrumentRegion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Region
Type spase:Region
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Earth
The third planet from the sun in our solar system.
enumeration Earth.Magnetosheath
The region between the bow shock and the magnetopause, characterized by very turbulent plasma.
enumeration Earth.Magnetosphere
The region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of the planets magnetic field.
enumeration Earth.Magnetosphere.Magnetotail
The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).
enumeration Earth.Magnetosphere.Main
The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.
enumeration Earth.Magnetosphere.Polar
The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.
enumeration Earth.Magnetosphere.RadiationBelt
The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.
enumeration Earth.NearSurface
The gaseous and possibly ionized environment of a body extending from the surface to some specified altitude.  For the Earth, this altitude is 2000 km.
enumeration Earth.NearSurface.Atmosphere
The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.
enumeration Earth.NearSurface.AuroralRegion
The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.
enumeration Earth.NearSurface.Ionosphere
The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..
enumeration Earth.Surface
The outermost area of a solid object.
enumeration Heliosphere
The solar atmosphere extending roughly from the outer corona to the edge of the solar plasma at the heliopause separating primarily solar plasma from interstellar plasma.
enumeration Heliosphere.Inner
The region of the heliosphere extending radially out from the surface of the Sun to 1 AU.
enumeration Heliosphere.NearEarth
The heliospheric region near the Earth which extends to and includes the area near the L1 and L2 Lagrange point.
enumeration Heliosphere.Outer
The region of the heliosphere from, but not including, 1 AU to the farthest extent of the heliosphere (heliopause).
enumeration Heliosphere.Remote1AU
The heliospheric region near the Earths orbit, but exclusive of the region near the Earth.
enumeration Sun
The star upon which our solar system is centered.
enumeration Sun.Chromosphere
The region of the Suns (or a stars) atmosphere above the temperature minimum and below the Transition Region.  The solar chromosphere is approximately 400 km to 2100 km above the photosphere, and characterized by temperatures from 4500 - 28000 K.
enumeration Sun.Corona
The outermost atmospheric region of the Sun or a star, characterized by ionization temperatures above 10^5 K.  The solar corona starts at about 2100 km above the photosphere; there is no generally defined upper limit.
enumeration Sun.Interior
The region inside the body which is not visible from outside the body.
enumeration Sun.Photosphere
The atmospheric layer of the Sun or a star from which continuum radiation, especially optical, is emitted to space.  For the Sun, the photosphere is about 500 km thick.
enumeration Sun.TransitionRegion
A very narrow (<100 km) layer between the chromosphere and the corona where the temperature rises abruptly from about 8000 to about 500,000 K.
Source
<xsd:element name="InstrumentRegion" type="spase:Region" minOccurs="0" maxOccurs="unbounded"/>
Element spase:NumericalData / spase:ObservedRegion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Region
Type spase:Region
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Earth
The third planet from the sun in our solar system.
enumeration Earth.Magnetosheath
The region between the bow shock and the magnetopause, characterized by very turbulent plasma.
enumeration Earth.Magnetosphere
The region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of the planets magnetic field.
enumeration Earth.Magnetosphere.Magnetotail
The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).
enumeration Earth.Magnetosphere.Main
The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.
enumeration Earth.Magnetosphere.Polar
The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.
enumeration Earth.Magnetosphere.RadiationBelt
The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.
enumeration Earth.NearSurface
The gaseous and possibly ionized environment of a body extending from the surface to some specified altitude.  For the Earth, this altitude is 2000 km.
enumeration Earth.NearSurface.Atmosphere
The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.
enumeration Earth.NearSurface.AuroralRegion
The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.
enumeration Earth.NearSurface.Ionosphere
The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..
enumeration Earth.Surface
The outermost area of a solid object.
enumeration Heliosphere
The solar atmosphere extending roughly from the outer corona to the edge of the solar plasma at the heliopause separating primarily solar plasma from interstellar plasma.
enumeration Heliosphere.Inner
The region of the heliosphere extending radially out from the surface of the Sun to 1 AU.
enumeration Heliosphere.NearEarth
The heliospheric region near the Earth which extends to and includes the area near the L1 and L2 Lagrange point.
enumeration Heliosphere.Outer
The region of the heliosphere from, but not including, 1 AU to the farthest extent of the heliosphere (heliopause).
enumeration Heliosphere.Remote1AU
The heliospheric region near the Earths orbit, but exclusive of the region near the Earth.
enumeration Sun
The star upon which our solar system is centered.
enumeration Sun.Chromosphere
The region of the Suns (or a stars) atmosphere above the temperature minimum and below the Transition Region.  The solar chromosphere is approximately 400 km to 2100 km above the photosphere, and characterized by temperatures from 4500 - 28000 K.
enumeration Sun.Corona
The outermost atmospheric region of the Sun or a star, characterized by ionization temperatures above 10^5 K.  The solar corona starts at about 2100 km above the photosphere; there is no generally defined upper limit.
enumeration Sun.Interior
The region inside the body which is not visible from outside the body.
enumeration Sun.Photosphere
The atmospheric layer of the Sun or a star from which continuum radiation, especially optical, is emitted to space.  For the Sun, the photosphere is about 500 km thick.
enumeration Sun.TransitionRegion
A very narrow (<100 km) layer between the chromosphere and the corona where the temperature rises abruptly from about 8000 to about 500,000 K.
Source
<xsd:element name="ObservedRegion" type="spase:Region" minOccurs="0" maxOccurs="unbounded"/>
Element spase:NumericalData / spase:Caveats
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Caveats
Type spase:Caveats
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
Element spase:NumericalData / spase:Keyword
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Keyword
Type spase:Keyword
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="Keyword" type="spase:Keyword" minOccurs="0" maxOccurs="unbounded"/>
Element spase:NumericalData / spase:InputResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#InputResourceID
Type spase:InputResourceID
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="InputResourceID" type="spase:InputResourceID" minOccurs="0" maxOccurs="unbounded"/>
Element spase:NumericalData / spase:PhysicalParameter
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#PhysicalParameter_Name spase-1_1_0_xsd.tmp#PhysicalParameter_ParameterKey spase-1_1_0_xsd.tmp#PhysicalParameter_Description spase-1_1_0_xsd.tmp#PhysicalParameter_Caveats spase-1_1_0_xsd.tmp#PhysicalParameter_Cadence spase-1_1_0_xsd.tmp#PhysicalParameter_Units spase-1_1_0_xsd.tmp#PhysicalParameter_UnitsConversion spase-1_1_0_xsd.tmp#PhysicalParameter_CoordinateSystem spase-1_1_0_xsd.tmp#PhysicalParameter_Dimension spase-1_1_0_xsd.tmp#PhysicalParameter_Measured spase-1_1_0_xsd.tmp#PhysicalParameter_Support spase-1_1_0_xsd.tmp#PhysicalParameter
Type spase:PhysicalParameter
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children spase:Cadence, spase:Caveats, spase:CoordinateSystem, spase:Description, spase:Dimension, spase:Measured, spase:Name, spase:ParameterKey, spase:Support, spase:Units, spase:UnitsConversion
Instance
<spase:PhysicalParameter xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Name>{0,1}</spase:Name>
  <spase:ParameterKey>{1,1}</spase:ParameterKey>
  <spase:Description>{0,1}</spase:Description>
  <spase:Caveats>{0,1}</spase:Caveats>
  <spase:Cadence>{0,1}</spase:Cadence>
  <spase:Units>{0,1}</spase:Units>
  <spase:UnitsConversion>{0,1}</spase:UnitsConversion>
  <spase:CoordinateSystem>{0,1}</spase:CoordinateSystem>
  <spase:Dimension>{0,1}</spase:Dimension>
  <spase:Measured>{0,1}</spase:Measured>
  <spase:Support>{0,1}</spase:Support>
</spase:PhysicalParameter>
Source
<xsd:element name="PhysicalParameter" type="spase:PhysicalParameter" minOccurs="1" maxOccurs="unbounded"/>
Element spase:PhysicalParameter / spase:Name
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Name
Type spase:Name
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Name" type="spase:Name" minOccurs="0" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:ParameterKey
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ParameterKey
Type spase:ParameterKey
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ParameterKey" type="spase:ParameterKey" minOccurs="1" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:Caveats
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Caveats
Type spase:Caveats
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:Cadence
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Cadence
Type spase:Cadence
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Cadence" type="spase:Cadence" minOccurs="0" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:UnitsConversion
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#UnitsConversion
Type spase:UnitsConversion
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="UnitsConversion" type="spase:UnitsConversion" minOccurs="0" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:CoordinateSystem
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#CoordinateSystem_CoordinateRepresentation spase-1_1_0_xsd.tmp#CoordinateSystem_CoordinateSystemName spase-1_1_0_xsd.tmp#CoordinateSystem
Type spase:CoordinateSystem
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:CoordinateRepresentation, spase:CoordinateSystemName
Instance
<spase:CoordinateSystem xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:CoordinateRepresentation>{0,1}</spase:CoordinateRepresentation>
  <spase:CoordinateSystemName>{0,1}</spase:CoordinateSystemName>
</spase:CoordinateSystem>
Source
<xsd:element name="CoordinateSystem" type="spase:CoordinateSystem" minOccurs="0" maxOccurs="1"/>
Element spase:CoordinateSystem / spase:CoordinateRepresentation
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#CoordinateRepresentation
Type spase:CoordinateRepresentation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration Cartesian
A coordinate system in which the position of a point is determined by its distance from two or three mutually perpendicular axes.
enumeration Cylindrical
A system of curvilinear coordinates in which the position of a point in space is determined by its perpendicular distance from a given line, its distance from a selected reference plane perpendicular to this line, and its angular distance from a selected reference line when projected onto this plane.
enumeration Spherical
A system of curvilinear coordinates characterized by an azimuthal angle (longitude),  a polar angle (latitude), and a distance (radius) from a point to the origin.
Source
<xsd:element name="CoordinateRepresentation" type="spase:CoordinateRepresentation" minOccurs="0" maxOccurs="1"/>
Element spase:CoordinateSystem / spase:CoordinateSystemName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#CoordinateSystemName
Type spase:CoordinateSystemName
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration CGM
Corrected Geomagnetic - A coordinate system from a spatial point with GEO radial distance and geomagnetic latitude and longitude, follow the epoch-appropriate IGRF/DGRF model field vector through to the point where the field line crosses the geomagnetic dipole equatorial plane. Then trace the dipole magnetic field vector Earthward from that point on the equatorial plane, in the same hemisphere as the original point, until the initial radial distance is reached. Designate the dipole latitude and longitude at that point as the CGM latitude and longitude of the original point. See <http://nssdc.gsfc.nasa.gov/space/cgm/cgmm_des.html>
enumeration DM
Dipole Meridian - A coordinate system centered at the observation point. Z axis is parallel to the Earths dipole axis, positive northward. X is in the plane defined by Z and the line linking the observation point with the Earths center. Y is positive eastward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration GEI
Geocentric Equatorial Inertial - A coordinate system where the Z axis is along Earths spin vector, positive northward. X axis points towards the first point of Aries (from the Earth towards the Sun at the vernal equinox). See Russell, 1971
enumeration GEO
Geographic - geocentric corotating - A coordinate system where the Z axis is along Earths spin vector, positive northward. X axis lies in Greenwich meridian, positive towards Greenwich. See Russell, 1971.
enumeration GSE
Geocentric Solar Ecliptic - A coordinate system where the X axis is from Earth to Sun. Z axis is normal to the ecliptic, positive northward. See Russell, 1971.
enumeration GSEQ
Geocentric Solar Equatorial - A coordinate system where the X axis is from Earth to Sun. Y axis is parallel to solar equatorial plane. Z axis is positive northward. See Russell, 1971
enumeration GSM
Geocentric Solar Magnetospheric - A coordinate system where the X axis is from Earth to Sun, Z axis is northward in a plane containing the X axis and the geomagnetic dipole axis. See Russell, 1971
enumeration HAE
Heliocentric Aries Ecliptic - A coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis is positive towards the first point of Aries (from Earth to Sun at vernal equinox). Same as SE below. See Hapgood, 1992.
enumeration HEE
Heliocentric Earth Ecliptic - A coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis points from Sun to Earth. See Hapgood, 1992
enumeration HEEQ
Heliocentric Earth Equatorial - A coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X axis is generally Earthward in the plane defined by the Z axis and the Sun-Earth direction. See Hapgood, 1992.
enumeration HG
Heliographic - A heliocentric rotating coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X, Y axes rotate with a 25.38 day period. The zero longitude (X axis) is defined as the longitude that passed through the ascending node of the solar equator on the ecliptic plane on 1 January, 1854 at 12 UT. See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration HGI
Heliographic Inertial - A heliocentric coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X axis is along the intersection line between solar equatorial and ecliptic planes. The X axis was positive at SE longitude of 74.367 deg on Jan 1, 1900. (See SE below.) See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration J2000
An astronomical coordinate system which uses the mean equator and equinox of Julian date 2451545.0 TT (Terrestrial Time), or January 1, 2000, noon TT. (aka J2000) to define a celestial reference frame.
enumeration LGM
Local Geomagnetic - A coordinate system used mainly for Earth surface or near Earth surface magnetic field data. X axis northward from observation point in a geographic meridian. Z axis downward towards Earths center. In this system, H (total horizontal component) = SQRT (Bx**2 + By**2) and D (declination angle) = arctan (By/Bx)
enumeration MAG
Geomagnetic - geocentric. Z axis is parallel to the geomagnetic dipole axis, positive north. X is in the plane defined by the Z axis and the Earths rotation axis. If N is a unit vector from the Earths center to the north geographic pole, the signs of the X and Y axes are given by Y = N x Z, X = Y x Z.. See Russell, 1971, and <http://cdpp.cnes.fr/00428.pdf>
enumeration MFA
Magnetic Field Aligned - A coordinate system spacecraft-centered system with Z in the direction of the ambient magnetic field vector. X is in the plane defined by Z and the spacecraft-Sun line, positive sunward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration RTN
Radial Tangential Normal. Typically centered at a spacecraft. Used for IMF and plasma V vectors. R (radial) axis is radially away from the Sun, T (tangential) axis is normal to the plane formed by R and the Suns spin vector, positive in the direction of planetary motion. N (normal) is R x T.
enumeration SC
Spacecraft - A coordinate system defined by the spacecraft geometry and/or spin. Often has Z axis parallel to spacecraft spin vector. X and Y axes may or may not corotate with the spacecraft. See SR and SR2 below.
enumeration SE
Solar Ecliptic - A heliocentric coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis is positive towards the first point of Aries (from Earth to Sun at vernal equinox). Same as HAE above. See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration SM
Solar Magnetic - A geocentric coordinate system where the Z axis is northward along Earths dipole axis, X axis is in plane of z axis and Earth-Sun line, positive sunward. See Russell, 1971.
enumeration SR
Spin Reference - A special case of a Spacecraft (SC) coordinate system for a spinning spacecraft. Z is parallel to the spacecraft spin vector. X and Y rotate with the spacecraft. See <http://cdpp.cnes.fr/00428.pdf>
enumeration SR2
Spin Reference 2 - A special case of a Spacecraft (SC) coordinate system for a spinning spacecraft. Z is parallel to the spacecraft spin vector. X is in the plane defined by Z and the spacecraft-Sun line, positive sunward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration SSE
Spacecraft Solar Ecliptic - A coordinate system used for deep space spacecraft, for example Helios. - X axis from spacecraft to Sun. Z axis normal to ecliptic plane, positive northward. Note: Angle between normals to ecliptic and to Helios orbit plane ~ 0.25 deg.
Source
<xsd:element name="CoordinateSystemName" type="spase:CoordinateSystemName" minOccurs="0" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:Dimension
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Dimension_Size spase-1_1_0_xsd.tmp#Dimension_Description spase-1_1_0_xsd.tmp#Dimension
Type spase:Dimension
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Description, spase:Size
Instance
<spase:Dimension xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Size>{1,1}</spase:Size>
  <spase:Description>{1,1}</spase:Description>
</spase:Dimension>
Source
<xsd:element name="Dimension" type="spase:Dimension" minOccurs="0" maxOccurs="1"/>
Element spase:Dimension / spase:Size
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Size
Type spase:Size
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Size" type="spase:Size" minOccurs="1" maxOccurs="1"/>
Element spase:Dimension / spase:Description
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Description
Type spase:Description
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Description" type="spase:Description" minOccurs="1" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:Measured
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Measured_Field spase-1_1_0_xsd.tmp#Measured_Particle spase-1_1_0_xsd.tmp#Measured_Photon spase-1_1_0_xsd.tmp#Measured_Mixed spase-1_1_0_xsd.tmp#Measured
Type spase:Measured
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Field, spase:Mixed, spase:Particle, spase:Photon
Instance
<spase:Measured xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Field>{0,1}</spase:Field>
  <spase:Particle>{0,1}</spase:Particle>
  <spase:Photon>{0,1}</spase:Photon>
  <spase:Mixed>{0,1}</spase:Mixed>
</spase:Measured>
Source
<xsd:element name="Measured" type="spase:Measured" minOccurs="0" maxOccurs="1"/>
Element spase:Measured / spase:Field
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Field_Orientation spase-1_1_0_xsd.tmp#Field_FieldQualifier spase-1_1_0_xsd.tmp#Field_FieldQuantity spase-1_1_0_xsd.tmp#Field
Type spase:Field
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:FieldQualifier, spase:FieldQuantity, spase:Orientation
Instance
<spase:Field xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Orientation>{0,1}</spase:Orientation>
  <spase:FieldQualifier>{0,unbounded}</spase:FieldQualifier>
  <spase:FieldQuantity>{1,1}</spase:FieldQuantity>
</spase:Field>
Source
<xsd:element name="Field" type="spase:Field" minOccurs="0" maxOccurs="1"/>
Element spase:Field / spase:Orientation
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Orientation
Type spase:Orientation
Properties
content simple
minOccurs 0
maxOccurs 1
Facets
enumeration H
TheHierarchical Data Format
enumeration Phi
The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.
enumeration R
The component of a vector along in the radial direction in a spherical system.
enumeration Theta
The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.
enumeration X
The component of a vector along the X-axis in a cartessian coordinate system.
enumeration Y
The component of a vector along the Y-axis in a cartessian coordinate system.
enumeration Z
The component of a vector along the Z-axis in a cartessian coordinate system.
Source
<xsd:element name="Orientation" type="spase:Orientation" minOccurs="0" maxOccurs="1"/>
Element spase:Field / spase:FieldQualifier
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#FieldQualifier
Type spase:FieldQualifier
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Component
A part of a multi-part entity, e.g., the components of a vector.
enumeration Component.H
TheHierarchical Data Format
enumeration Component.Phi
The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.
enumeration Component.R
The component of a vector along in the radial direction in a spherical system.
enumeration Component.Theta
The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.
enumeration Component.X
The component of a vector along the X-axis in a cartessian coordinate system.
enumeration Component.Y
The component of a vector along the Y-axis in a cartessian coordinate system.
enumeration Component.Z
The component of a vector along the Z-axis in a cartessian coordinate system.
enumeration Deviation
The difference between an observed value and the expected value of a quantity.
enumeration Magnitude
A measure of the strength or size of a vector quantity.
enumeration Peak
The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.
enumeration Perpendicular
At right angles to a given direction.
enumeration Variance
A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.
enumeration Vector
A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.
Source
<xsd:element name="FieldQualifier" type="spase:FieldQualifier" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Field / spase:FieldQuantity
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#FieldQuantity
Type spase:FieldQuantity
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration CrossSpectrum
The Fourier transform of the cross correlation of two physical or empirical observations.
enumeration Electric
The physical attribute that exerts an electrical force.
enumeration Magnetic
The physical attribute attributed to a magnet or its equivalent.
enumeration Potential
A field which obeys Laplaces Equation.
enumeration PoyntingFlux
The rate of energy transport per unit area per steradian.
Source
<xsd:element name="FieldQuantity" type="spase:FieldQuantity" minOccurs="1" maxOccurs="1"/>
Element spase:Measured / spase:Particle
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Particle_ParticleType spase-1_1_0_xsd.tmp#Particle_ParticleQualifier spase-1_1_0_xsd.tmp#Particle_ParticleQuantity spase-1_1_0_xsd.tmp#Particle_AtomicNumber spase-1_1_0_xsd.tmp#Particle_EnergyRange spase-1_1_0_xsd.tmp#Particle_AzimuthalAngleRange spase-1_1_0_xsd.tmp#Particle_PolarAngleRange spase-1_1_0_xsd.tmp#Particle
Type spase:Particle
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:AtomicNumber, spase:AzimuthalAngleRange, spase:EnergyRange, spase:ParticleQualifier, spase:ParticleQuantity, spase:ParticleType, spase:PolarAngleRange
Instance
<spase:Particle xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ParticleType>{1,unbounded}</spase:ParticleType>
  <spase:ParticleQualifier>{0,unbounded}</spase:ParticleQualifier>
  <spase:ParticleQuantity>{1,1}</spase:ParticleQuantity>
  <spase:AtomicNumber>{0,unbounded}</spase:AtomicNumber>
  <spase:EnergyRange>{0,1}</spase:EnergyRange>
  <spase:AzimuthalAngleRange>{0,1}</spase:AzimuthalAngleRange>
  <spase:PolarAngleRange>{0,1}</spase:PolarAngleRange>
</spase:Particle>
Source
<xsd:element name="Particle" type="spase:Particle" minOccurs="0" maxOccurs="1"/>
Element spase:Particle / spase:ParticleType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ParticleType
Type spase:ParticleType
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
enumeration Aerosol
A suspension of fine solid or liquid particles in gas.
enumeration AlphaParticle
A positively charged nuclear particle that consists of two protons and two neutrons.
enumeration Dust
Free microscopic particles of solid material.
enumeration Electron
An elementary particle consisting of a charge of negative electricity equal to about 1.602 x 10**(-19) Coulomb and having a mass when at rest of about 9.109534 x 10**(-28) gram.
enumeration Ion
An atom that has acquired a net electric charge by gaining or losing one or more electrons.(Note: Z>2)
enumeration Molecule
A group of atoms so united and combined by chemical affinity that they form a complete, integrated whole, being the smallest portion of any particular compound that can exist in a free state
enumeration Neutral
Either a particle, an object, or a system that has a net electric charge of zero
enumeration Proton
An elementary particle that is a constituent of all atomic nuclei, that carries a positive charge numerically equal to the charge of an electron, and that has a mass of 1.673 x 10**(-24) gram.
Source
<xsd:element name="ParticleType" type="spase:ParticleType" minOccurs="1" maxOccurs="unbounded"/>
Element spase:Particle / spase:ParticleQualifier
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ParticleQualifier
Type spase:ParticleQualifier
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Component
A part of a multi-part entity, e.g., the components of a vector.
enumeration Component.H
TheHierarchical Data Format
enumeration Component.Phi
The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.
enumeration Component.R
The component of a vector along in the radial direction in a spherical system.
enumeration Component.Theta
The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.
enumeration Component.X
The component of a vector along the X-axis in a cartessian coordinate system.
enumeration Component.Y
The component of a vector along the Y-axis in a cartessian coordinate system.
enumeration Component.Z
The component of a vector along the Z-axis in a cartessian coordinate system.
enumeration Deviation
The difference between an observed value and the expected value of a quantity.
enumeration Differential
The ratio of the intensity of radiant energy scattered in a given direction to the incident irradiance and thus has dimensions of area per unit solid angle.
enumeration Fit
Values that make an model agree with the data.
enumeration Integral
The summation of values over a given area or range.
enumeration Magnitude
A measure of the strength or size of a vector quantity.
enumeration Moment
Parameters determined by integration over a distribution function convolved with a power of velocity.
enumeration Parallel
Having the same direction as a given direction
enumeration Peak
The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.
enumeration Perpendicular
At right angles to a given direction.
enumeration Ratio
The relative magnitudes of two quantities.
enumeration Variance
A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.
enumeration Vector
A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.
Source
<xsd:element name="ParticleQualifier" type="spase:ParticleQualifier" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Particle / spase:ParticleQuantity
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ParticleQuantity
Type spase:ParticleQuantity
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration AlfvenMachNumber
The ratio of the bulk flow speed to the Alfven speed.
enumeration AverageChargeState
A measure of the composite deficit (positive) or excess (negative) of electrons with respect to protons.
enumeration Counts
An enumeration of the number of detection events occurring in a particle detector per unit time or over detector accumulation times.
enumeration Flux
In radiation studies, this refers to the amount of radiant energy passing through a unit area
enumeration HeatFlux
Flow of thermal energy through a gas or plasma; typically computed as third moment of a distribution function.
enumeration Mass
The measure of inertia (mass) of individual objects (e.g., aerosols).
enumeration MassDensity
The mass of particles per unit volume.
enumeration NumberDensity
The number of particles per unit volume.
enumeration PhaseSpaceDensity
The number of particles per unit volume in the six-dimensional space of position and velocity.
enumeration PlasmaBeta
The ratio of the plasma pressure to the magnetic pressure.
enumeration Pressure
The force per unit area exerted by a particle distribution or field.
enumeration SonicMachNumber
The ratio of the bulk flow speed to the speed of sound in the medium.
enumeration Temperature
A measure of the kinetic energy of random motion with respect to the average. Temperature is properly defined only for an equilibrium particle distribution (Maxwellian distribution).
enumeration ThermalSpeed
For a Maxwellian distribution, the difference between the mean speed and the speed within which ~69% (one sigma) of all the members of the speed distribution occur.
enumeration Velocity
Rate of change of position. Also used for the average velocity of a collection of particles, also referred to as bulk velocity.
Source
<xsd:element name="ParticleQuantity" type="spase:ParticleQuantity" minOccurs="1" maxOccurs="1"/>
Element spase:Particle / spase:AtomicNumber
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AtomicNumber
Type spase:AtomicNumber
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="AtomicNumber" type="spase:AtomicNumber" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Particle / spase:EnergyRange
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#EnergyRange_Low spase-1_1_0_xsd.tmp#EnergyRange_High spase-1_1_0_xsd.tmp#EnergyRange_Units spase-1_1_0_xsd.tmp#EnergyRange_Bin spase-1_1_0_xsd.tmp#EnergyRange
Type spase:EnergyRange
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Bin, spase:High, spase:Low, spase:Units
Instance
<spase:EnergyRange xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{0,1}</spase:High>
  <spase:Units>{1,1}</spase:Units>
  <spase:Bin>{0,unbounded}</spase:Bin>
</spase:EnergyRange>
Source
<xsd:element name="EnergyRange" type="spase:EnergyRange" minOccurs="0" maxOccurs="1"/>
Element spase:EnergyRange / spase:Low
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Low
Type spase:Low
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
Element spase:EnergyRange / spase:High
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#High
Type spase:High
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="High" type="spase:High" minOccurs="0" maxOccurs="1"/>
Element spase:EnergyRange / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="1" maxOccurs="1"/>
Element spase:EnergyRange / spase:Bin
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Bin_Low spase-1_1_0_xsd.tmp#Bin_High spase-1_1_0_xsd.tmp#Bin
Type spase:Bin
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:High, spase:Low
Instance
<spase:Bin xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{1,1}</spase:High>
</spase:Bin>
Source
<xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Bin / spase:Low
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Low
Type spase:Low
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
Element spase:Bin / spase:High
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#High
Type spase:High
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="High" type="spase:High" minOccurs="1" maxOccurs="1"/>
Element spase:Particle / spase:AzimuthalAngleRange
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AzimuthalAngleRange_Low spase-1_1_0_xsd.tmp#AzimuthalAngleRange_High spase-1_1_0_xsd.tmp#AzimuthalAngleRange_Units spase-1_1_0_xsd.tmp#AzimuthalAngleRange_Bin spase-1_1_0_xsd.tmp#AzimuthalAngleRange
Type spase:AzimuthalAngleRange
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Bin, spase:High, spase:Low, spase:Units
Instance
<spase:AzimuthalAngleRange xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{1,1}</spase:High>
  <spase:Units>{0,1}</spase:Units>
  <spase:Bin>{0,unbounded}</spase:Bin>
</spase:AzimuthalAngleRange>
Source
<xsd:element name="AzimuthalAngleRange" type="spase:AzimuthalAngleRange" minOccurs="0" maxOccurs="1"/>
Element spase:AzimuthalAngleRange / spase:Low
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Low
Type spase:Low
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
Element spase:AzimuthalAngleRange / spase:High
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#High
Type spase:High
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="High" type="spase:High" minOccurs="1" maxOccurs="1"/>
Element spase:AzimuthalAngleRange / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>
Element spase:AzimuthalAngleRange / spase:Bin
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Bin_Low spase-1_1_0_xsd.tmp#Bin_High spase-1_1_0_xsd.tmp#Bin
Type spase:Bin
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:High, spase:Low
Instance
<spase:Bin xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{1,1}</spase:High>
</spase:Bin>
Source
<xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Particle / spase:PolarAngleRange
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#PolarAngleRange_Low spase-1_1_0_xsd.tmp#PolarAngleRange_High spase-1_1_0_xsd.tmp#PolarAngleRange_Units spase-1_1_0_xsd.tmp#PolarAngleRange_Bin spase-1_1_0_xsd.tmp#PolarAngleRange
Type spase:PolarAngleRange
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Bin, spase:High, spase:Low, spase:Units
Instance
<spase:PolarAngleRange xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{1,1}</spase:High>
  <spase:Units>{0,1}</spase:Units>
  <spase:Bin>{0,1}</spase:Bin>
</spase:PolarAngleRange>
Source
<xsd:element name="PolarAngleRange" type="spase:PolarAngleRange" minOccurs="0" maxOccurs="1"/>
Element spase:PolarAngleRange / spase:Low
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Low
Type spase:Low
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
Element spase:PolarAngleRange / spase:High
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#High
Type spase:High
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="High" type="spase:High" minOccurs="1" maxOccurs="1"/>
Element spase:PolarAngleRange / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>
Element spase:PolarAngleRange / spase:Bin
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Bin_Low spase-1_1_0_xsd.tmp#Bin_High spase-1_1_0_xsd.tmp#Bin
Type spase:Bin
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:High, spase:Low
Instance
<spase:Bin xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{1,1}</spase:High>
</spase:Bin>
Source
<xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="1"/>
Element spase:Measured / spase:Photon
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Photon_PhotonQualifier spase-1_1_0_xsd.tmp#Photon_PhotonQuantity spase-1_1_0_xsd.tmp#Photon_FrequencyRange spase-1_1_0_xsd.tmp#Photon
Type spase:Photon
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:FrequencyRange, spase:PhotonQualifier, spase:PhotonQuantity
Instance
<spase:Photon xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:PhotonQualifier>{0,unbounded}</spase:PhotonQualifier>
  <spase:PhotonQuantity>{1,1}</spase:PhotonQuantity>
  <spase:FrequencyRange>{0,1}</spase:FrequencyRange>
</spase:Photon>
Source
<xsd:element name="Photon" type="spase:Photon" minOccurs="0" maxOccurs="1"/>
Element spase:Photon / spase:PhotonQualifier
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#PhotonQualifier
Type spase:PhotonQualifier
Properties
content simple
minOccurs 0
maxOccurs unbounded
Facets
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Circular
Relative to polarization, right-hand circularly polarized light is defined such that the electric field is rotating clockwise as seen by an observer towards whom the wave is moving. Left-hand circularly polarized light is defined such that the electric field is rotating counterclockwise as seen by an observer towards whom the wave is moving. The polarization of magnetohydrodynamic waves is specified with respect to the ambient mean magnetic field : right-hand polarized waves have a transverse electric field component which turns in a right-handed sense (that of the gyrating electrons) around the magnetic field.
enumeration LineofSight
The line of sight is the line that connects the observer with the observed object. This expression is often used with measurements of Doppler velocity and magnetic field in magnetograms, where only the component of the vector field directed along the line of sight is measured.
enumeration Linear
Relative to polarization, confinement of the E-field vector to a given plane
enumeration Peak
The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.
enumeration StokesParameters
The four coordinates (usually called I, Q, U, and V) relative to a particular basis for the representation of the polarization state of an electromagnetic wave propagating through space.
enumeration Variance
A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.
enumeration Vector
A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.
Source
<xsd:element name="PhotonQualifier" type="spase:PhotonQualifier" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Photon / spase:PhotonQuantity
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#PhotonQuantity
Type spase:PhotonQuantity
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Emissivity
The ratio of radiant energy from a material to that from a blackbody at the same kinetic temperature
enumeration EquivalentWidth
The area of the spectral line profile divided by the peak height or depth.
enumeration Flux
In radiation studies, this refers to the amount of radiant energy passing through a unit area
enumeration Intensity
The amount of energy transmitted by electromagnetic radiation, for example, the number of photons arriving in a given time.
enumeration LineDepth
In spectra, a measure of the amount of absorption for a particular wavelength or frequency in the spectrum
enumeration MagneticField
Measurements of magnetic field vectors (sometimes not all components) as time series; can be space- or ground-based. Also, [Zeeman splitting, etc. based]: A region of space near a magnetized body where magnetic forces can be detected [as measured by methods such as Zeeman splitting, etc.]
enumeration ModeAmplitude
In helioseismology the magnitude of oscillation of waves of a particular geometry.
enumeration Polarization
Direction of the electric vector of an electromagnetic wave. The wave can be linearly polarized in any direction perpendicular to the direction of travel, circularly polarized (clockwise or counterclockwise), unpolarized, or mixtures of the above.
enumeration StokesParameters
The four coordinates (usually called I, Q, U, and V) relative to a particular basis for the representation of the polarization state of an electromagnetic wave propagating through space.
enumeration Velocity
Rate of change of position. Also used for the average velocity of a collection of particles, also referred to as bulk velocity.
Source
<xsd:element name="PhotonQuantity" type="spase:PhotonQuantity" minOccurs="1" maxOccurs="1"/>
Element spase:Photon / spase:FrequencyRange
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#FrequencyRange_Low spase-1_1_0_xsd.tmp#FrequencyRange_High spase-1_1_0_xsd.tmp#FrequencyRange_Units spase-1_1_0_xsd.tmp#FrequencyRange_Bin spase-1_1_0_xsd.tmp#FrequencyRange
Type spase:FrequencyRange
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Bin, spase:High, spase:Low, spase:Units
Instance
<spase:FrequencyRange xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{0,1}</spase:High>
  <spase:Units>{1,1}</spase:Units>
  <spase:Bin>{0,unbounded}</spase:Bin>
</spase:FrequencyRange>
Source
<xsd:element name="FrequencyRange" type="spase:FrequencyRange" minOccurs="0" maxOccurs="1"/>
Element spase:FrequencyRange / spase:Low
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Low
Type spase:Low
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
Element spase:FrequencyRange / spase:High
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#High
Type spase:High
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="High" type="spase:High" minOccurs="0" maxOccurs="1"/>
Element spase:FrequencyRange / spase:Units
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Units
Type spase:Units
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Units" type="spase:Units" minOccurs="1" maxOccurs="1"/>
Element spase:FrequencyRange / spase:Bin
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Bin_Low spase-1_1_0_xsd.tmp#Bin_High spase-1_1_0_xsd.tmp#Bin
Type spase:Bin
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:High, spase:Low
Instance
<spase:Bin xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Low>{1,1}</spase:Low>
  <spase:High>{1,1}</spase:High>
</spase:Bin>
Source
<xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Measured / spase:Mixed
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Mixed
Type spase:Mixed
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Mixed" type="spase:Mixed" minOccurs="0" maxOccurs="1"/>
Element spase:PhysicalParameter / spase:Support
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Support_Other spase-1_1_0_xsd.tmp#Support_Positional spase-1_1_0_xsd.tmp#Support_Temporal spase-1_1_0_xsd.tmp#Support
Type spase:Support
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Other, spase:Positional, spase:Temporal
Instance
<spase:Support xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Other>{0,1}</spase:Other>
  <spase:Positional>{0,1}</spase:Positional>
  <spase:Temporal>{0,1}</spase:Temporal>
</spase:Support>
Source
<xsd:element name="Support" type="spase:Support" minOccurs="0" maxOccurs="1"/>
Element spase:Support / spase:Other
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Other
Type spase:Other
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Other" type="spase:Other" minOccurs="0" maxOccurs="1"/>
Element spase:Support / spase:Positional
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Positional_Orientation spase-1_1_0_xsd.tmp#Positional
Type spase:Positional
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Orientation
Instance
<spase:Positional xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Orientation>{1,unbounded}</spase:Orientation>
</spase:Positional>
Source
<xsd:element name="Positional" type="spase:Positional" minOccurs="0" maxOccurs="1"/>
Element spase:Positional / spase:Orientation
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Orientation
Type spase:Orientation
Properties
content simple
minOccurs 1
maxOccurs unbounded
Facets
enumeration H
TheHierarchical Data Format
enumeration Phi
The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.
enumeration R
The component of a vector along in the radial direction in a spherical system.
enumeration Theta
The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.
enumeration X
The component of a vector along the X-axis in a cartessian coordinate system.
enumeration Y
The component of a vector along the Y-axis in a cartessian coordinate system.
enumeration Z
The component of a vector along the Z-axis in a cartessian coordinate system.
Source
<xsd:element name="Orientation" type="spase:Orientation" minOccurs="1" maxOccurs="unbounded"/>
Element spase:Support / spase:Temporal
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Temporal
Type spase:Temporal
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Temporal" type="spase:Temporal" minOccurs="0" maxOccurs="1"/>
Element spase:Spase / spase:Granule
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Granule_ResourceID spase-1_1_0_xsd.tmp#Granule_ReleaseDate spase-1_1_0_xsd.tmp#Granule_ParentID spase-1_1_0_xsd.tmp#Granule_URL spase-1_1_0_xsd.tmp#Granule_StartDate spase-1_1_0_xsd.tmp#Granule_StopDate spase-1_1_0_xsd.tmp#Granule
Type spase:Granule
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:ParentID, spase:ReleaseDate, spase:ResourceID, spase:StartDate, spase:StopDate, spase:URL
Instance
<spase:Granule xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:ParentID>{1,1}</spase:ParentID>
  <spase:URL>{1,1}</spase:URL>
  <spase:StartDate>{1,1}</spase:StartDate>
  <spase:StopDate>{1,1}</spase:StopDate>
</spase:Granule>
Source
<xsd:element name="Granule" type="spase:Granule" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Granule / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:Granule / spase:ReleaseDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ReleaseDate
Type spase:ReleaseDate
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ReleaseDate" type="spase:ReleaseDate" minOccurs="1" maxOccurs="1"/>
Element spase:Granule / spase:ParentID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ParentID
Type spase:ParentID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ParentID" type="spase:ParentID" minOccurs="1" maxOccurs="1"/>
Element spase:Granule / spase:URL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#URL
Type spase:URL
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="URL" type="spase:URL" minOccurs="1" maxOccurs="1"/>
Element spase:Granule / spase:StartDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#StartDate
Type spase:StartDate
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="StartDate" type="spase:StartDate" minOccurs="1" maxOccurs="1"/>
Element spase:Granule / spase:StopDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#StopDate
Type spase:StopDate
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="StopDate" type="spase:StopDate" minOccurs="1" maxOccurs="1"/>
Element spase:Spase / spase:Instrument
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Instrument_ResourceID spase-1_1_0_xsd.tmp#Instrument_ResourceHeader spase-1_1_0_xsd.tmp#Instrument_InstrumentType spase-1_1_0_xsd.tmp#Instrument_InvestigationName spase-1_1_0_xsd.tmp#Instrument_ObservatoryID spase-1_1_0_xsd.tmp#Instrument_Caveats spase-1_1_0_xsd.tmp#Instrument
Type spase:Instrument
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:Caveats, spase:InstrumentType, spase:InvestigationName, spase:ObservatoryID, spase:ResourceHeader, spase:ResourceID
Instance
<spase:Instrument xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{1,1}</spase:ResourceHeader>
  <spase:InstrumentType>{1,1}</spase:InstrumentType>
  <spase:InvestigationName>{1,1}</spase:InvestigationName>
  <spase:ObservatoryID>{1,1}</spase:ObservatoryID>
  <spase:Caveats>{1,1}</spase:Caveats>
</spase:Instrument>
Source
<xsd:element name="Instrument" type="spase:Instrument" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Instrument / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:Instrument / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID spase-1_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,1}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:AssociationID>{0,unbounded}</spase:AssociationID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
Element spase:Instrument / spase:InstrumentType
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#InstrumentType
Type spase:InstrumentType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Antenna
A sensor used to measure electric potential.
enumeration Channeltron
An instrument that detects electrons, ions, and UV-radiation, according to the principle of a secondary emission multiplier. It is typically used in electron spectroscopy and mass spectrometry.
enumeration DoubleSphere
A dipole antenna of which the active (sensor) elements are small spheres located at the ends of two wires deployed in the equatorial plane, on opposite sides of a spinning spacecraft.
enumeration ElectronDriftInstrument
An active experiment to measure the electron drift velocity based on sensing the displacement of a weak beam of electrons after one gyration in the ambient magnetic field.
enumeration ElectrostaticAnalyser
An instrument which uses charged plates to analyze the mass, charge and kinetic energies of charged particles which enter the instrument.
enumeration EnergeticParticleInstrument
An instrument that measures fluxes of charged particles as a function of time, direction of motion, mass, charge and/or species
enumeration FaradayCup
An instrument consisting of an electrode from which electrical current is measured while a charged particle beam (electrons or ions) impinges on it. Used to determine energy spectrum and sometimes ion composition of the impinging particles.
enumeration FluxFeedback
A search coil whose bandwidth and signal/noise ratio are increased by the application of negative feedback at the sensor (flux) level by driving a collocated coil with a signal from the preamplifier.
enumeration FourierTransformSpectrograph
An instrument that determines the spectra of a radiative source, using time-domain measurements and a Fourier transform.
enumeration Imager
An instrument which samples the radiation from an area at one or more spectral ranges emitted or reflected by an object.
enumeration LangmuirProbe
A monopole antenna associated with an instrument. The instrument applies a potential to the antenna which is swept to determine the voltage/current characteristic. This provides information about the plasma surrounding the probe and spacecraft.
enumeration LongWire
A dipole antenna whose active (sensor) elements are two wires deployed in the equatorial plane on opposite sides of a spinning spacecraft, and whose length is several times greater than the spacecraft diameter.
enumeration Magnetometer
An instrument which measures the ambient magnetic field.
enumeration MassSpectrometer
An instrument which distinguishes chemical species in terms of their different isotopic masses.
enumeration MicrochannelPlate
An instrument used for the detection of elementary particles, ions, ultraviolet rays and soft X-rays constructed from very thin conductive glass capillaries.
enumeration ParticleCorrelator
An instrument which correlates particle flux to help identify wave/particle interactions.
enumeration QuadrisphericalAnalyser
An instrument used for the 3-D detection of plasma, energetic electrons and ions, and for positive-ion composition measurements.
enumeration Radar
An instrument which uses radar to obtain an image of an object.
enumeration ResonanceSounder
A combination of a radio receiver and a pulsed transmitter used to study the plasma surrounding a spacecraft by identifying resonances or cut-offs (of the wave dispersion relation), whose frequencies are related to the ambient plasma density and magnetic field. When the transmitter is off it is essentially a high frequency-resolution spectral power receiver.
enumeration SearchCoil
A loop of wire used to determine the time variation of the magnetic flux threading the loop by measurement of the electric potential difference induced between the ends of the wire.
enumeration SpacecraftPotentialControl
An instrument to control the electric potential of a spacecraft with respect to the ambient plasma by emitting a variable current of positive ions.
enumeration SpectralPowerReceiver
A radio receiver which determines the power spectral density of the electric or magnetic field, or both, at one or more frequencies.
enumeration Spectrometer
An instrument that measures the component wavelengths of light or other electromagnetic radiation into its component wavelengths.
enumeration WaveformReceiver
A radio receiver which outputs the value of one or more components of the electric and/or magnetic field as a function of time.
Source
<xsd:element name="InstrumentType" type="spase:InstrumentType" minOccurs="1" maxOccurs="1"/>
Element spase:Instrument / spase:InvestigationName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#InvestigationName
Type spase:InvestigationName
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="InvestigationName" type="spase:InvestigationName" minOccurs="1" maxOccurs="1"/>
Element spase:Instrument / spase:ObservatoryID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ObservatoryID
Type spase:ObservatoryID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ObservatoryID" type="spase:ObservatoryID" minOccurs="1" maxOccurs="1"/>
Element spase:Instrument / spase:Caveats
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Caveats
Type spase:Caveats
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="Caveats" type="spase:Caveats" minOccurs="1" maxOccurs="1"/>
Element spase:Spase / spase:Observatory
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Observatory_ResourceID spase-1_1_0_xsd.tmp#Observatory_ResourceHeader spase-1_1_0_xsd.tmp#Observatory_ObservatoryGroup spase-1_1_0_xsd.tmp#Observatory
Type spase:Observatory
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:ObservatoryGroup, spase:ResourceHeader, spase:ResourceID
Instance
<spase:Observatory xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{0,1}</spase:ResourceHeader>
  <spase:ObservatoryGroup>{0,1}</spase:ObservatoryGroup>
</spase:Observatory>
Source
<xsd:element name="Observatory" type="spase:Observatory" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Observatory / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:Observatory / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID spase-1_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,1}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:AssociationID>{0,unbounded}</spase:AssociationID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="0" maxOccurs="1"/>
Element spase:Observatory / spase:ObservatoryGroup
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ObservatoryGroup
Type spase:ObservatoryGroup
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ObservatoryGroup" type="spase:ObservatoryGroup" minOccurs="0" maxOccurs="1"/>
Element spase:Spase / spase:Person
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Person_ResourceID spase-1_1_0_xsd.tmp#Person_ReleaseDate spase-1_1_0_xsd.tmp#Person_PersonName spase-1_1_0_xsd.tmp#Person_OrganizationName spase-1_1_0_xsd.tmp#Person_Address spase-1_1_0_xsd.tmp#Person_Email spase-1_1_0_xsd.tmp#Person_PhoneNumber spase-1_1_0_xsd.tmp#Person
Type spase:Person
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:Address, spase:Email, spase:OrganizationName, spase:PersonName, spase:PhoneNumber, spase:ReleaseDate, spase:ResourceID
Instance
<spase:Person xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ReleaseDate>{0,1}</spase:ReleaseDate>
  <spase:PersonName>{0,1}</spase:PersonName>
  <spase:OrganizationName>{1,1}</spase:OrganizationName>
  <spase:Address>{0,1}</spase:Address>
  <spase:Email>{0,unbounded}</spase:Email>
  <spase:PhoneNumber>{0,unbounded}</spase:PhoneNumber>
</spase:Person>
Source
<xsd:element name="Person" type="spase:Person" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Person / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:Person / spase:ReleaseDate
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ReleaseDate
Type spase:ReleaseDate
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="ReleaseDate" type="spase:ReleaseDate" minOccurs="0" maxOccurs="1"/>
Element spase:Person / spase:PersonName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#PersonName
Type spase:PersonName
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="PersonName" type="spase:PersonName" minOccurs="0" maxOccurs="1"/>
Element spase:Person / spase:OrganizationName
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#OrganizationName
Type spase:OrganizationName
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="OrganizationName" type="spase:OrganizationName" minOccurs="1" maxOccurs="1"/>
Element spase:Person / spase:Address
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Address
Type spase:Address
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xsd:element name="Address" type="spase:Address" minOccurs="0" maxOccurs="1"/>
Element spase:Person / spase:Email
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Email
Type spase:Email
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="Email" type="spase:Email" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Person / spase:PhoneNumber
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#PhoneNumber
Type spase:PhoneNumber
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source
<xsd:element name="PhoneNumber" type="spase:PhoneNumber" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Spase / spase:Registry
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Registry_ResourceID spase-1_1_0_xsd.tmp#Registry_ResourceHeader spase-1_1_0_xsd.tmp#Registry
Type spase:Registry
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:ResourceHeader, spase:ResourceID
Instance
<spase:Registry xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{1,1}</spase:ResourceHeader>
</spase:Registry>
Source
<xsd:element name="Registry" type="spase:Registry" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Registry / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:Registry / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID spase-1_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,1}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:AssociationID>{0,unbounded}</spase:AssociationID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
Element spase:Spase / spase:Repository
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Repository_ResourceID spase-1_1_0_xsd.tmp#Repository_ResourceHeader spase-1_1_0_xsd.tmp#Repository
Type spase:Repository
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:ResourceHeader, spase:ResourceID
Instance
<spase:Repository xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{1,1}</spase:ResourceHeader>
</spase:Repository>
Source
<xsd:element name="Repository" type="spase:Repository" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Repository / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:Repository / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID spase-1_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,1}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:AssociationID>{0,unbounded}</spase:AssociationID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
Element spase:Spase / spase:Service
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#Service_ResourceID spase-1_1_0_xsd.tmp#Service_ResourceHeader spase-1_1_0_xsd.tmp#Service_AccessURL spase-1_1_0_xsd.tmp#Service
Type spase:Service
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children spase:AccessURL, spase:ResourceHeader, spase:ResourceID
Instance
<spase:Service xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceID>{1,1}</spase:ResourceID>
  <spase:ResourceHeader>{1,1}</spase:ResourceHeader>
  <spase:AccessURL>{1,1}</spase:AccessURL>
</spase:Service>
Source
<xsd:element name="Service" type="spase:Service" minOccurs="0" maxOccurs="unbounded"/>
Element spase:Service / spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceID
Type spase:ResourceID
Properties
content simple
minOccurs 1
maxOccurs 1
Source
<xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
Element spase:Service / spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID spase-1_1_0_xsd.tmp#ResourceHeader
Type spase:ResourceHeader
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Instance
<spase:ResourceHeader xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:ResourceName>{1,1}</spase:ResourceName>
  <spase:AlternateName>{0,unbounded}</spase:AlternateName>
  <spase:ReleaseDate>{1,1}</spase:ReleaseDate>
  <spase:Description>{1,1}</spase:Description>
  <spase:Acknowledgement>{0,1}</spase:Acknowledgement>
  <spase:Contact>{1,1}</spase:Contact>
  <spase:InformationURL>{0,unbounded}</spase:InformationURL>
  <spase:AssociationID>{0,unbounded}</spase:AssociationID>
</spase:ResourceHeader>
Source
<xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
Element spase:Service / spase:AccessURL
Namespace http://www.spase-group.org/data/schema
Diagram
Diagram spase-1_1_0_xsd.tmp#AccessURL_Name spase-1_1_0_xsd.tmp#AccessURL_URL spase-1_1_0_xsd.tmp#AccessURL_Description spase-1_1_0_xsd.tmp#AccessURL
Type spase:AccessURL
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children spase:Description, spase:Name, spase:URL
Instance
<spase:AccessURL xmlns:spase="http://www.spase-group.org/data/schema">
  <spase:Name>{0,1}</spase:Name>
  <spase:URL>{1,1}</spase:URL>
  <spase:Description>{0,1}</spase:Description>
</spase:AccessURL>
Source
<xsd:element name="AccessURL" type="spase:AccessURL" minOccurs="1" maxOccurs="1"/>
Element spase:ObservatoryGroup
Namespace http://www.spase-group.org/data/schema
Annotations
Diagram
Diagram
Type xsd:string
Properties
content simple
Source
<xsd:element name="ObservatoryGroup" type="xsd:string">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">
    </xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element spase:ObservatoryName
Namespace http://www.spase-group.org/data/schema
Annotations
Diagram
Diagram
Type xsd:string
Properties
content simple
Source
<xsd:element name="ObservatoryName" type="xsd:string">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">
    </xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element spase:RepositoryName
Namespace http://www.spase-group.org/data/schema
Annotations
Diagram
Diagram
Type xsd:string
Properties
content simple
Source
<xsd:element name="RepositoryName" type="xsd:string">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">
    </xsd:documentation>
  </xsd:annotation>
</xsd:element>
Complex Type spase:Spase
Namespace http://www.spase-group.org/data/schema
Annotations
Space Physics Archive Search and Extract (SPASE). The outermost container or envelope for SPASE metadata. This indicates the start of the SPASE metadata.
Diagram
Diagram spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_lang spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Version spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Catalog spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_DisplayData spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_NumericalData spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Granule spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Instrument spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Observatory spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Person spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Registry spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Repository spase-1_1_0_xsd.tmp#http___www.spase-group.org_data_schema_Spase_Service
Used by
Element spase:Spase
Model
Children spase:Catalog, spase:DisplayData, spase:Granule, spase:Instrument, spase:NumericalData, spase:Observatory, spase:Person, spase:Registry, spase:Repository, spase:Service, spase:Version
Attributes
QName Type Default Use
lang xsd:string en optional
Source
<xsd:complexType name="Spase">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Space Physics Archive Search and Extract (SPASE). The outermost container or envelope for SPASE metadata. This indicates the start of the SPASE metadata.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Version" type="spase:Version" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Catalog" type="spase:Catalog" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="DisplayData" type="spase:DisplayData" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="NumericalData" type="spase:NumericalData" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Granule" type="spase:Granule" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Instrument" type="spase:Instrument" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Observatory" type="spase:Observatory" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Person" type="spase:Person" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Registry" type="spase:Registry" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Repository" type="spase:Repository" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Service" type="spase:Service" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
  <xsd:attribute name="lang" type="xsd:string" default="en"/>
</xsd:complexType>
Simple Type spase:Version
Namespace http://www.spase-group.org/data/schema
Annotations
Version number.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration 1.1.0
Used by
Source
<xsd:simpleType name="Version">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Version number.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="1.1.0"/>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:Catalog
Namespace http://www.spase-group.org/data/schema
Annotations
A tabular listing of events or observational notes, especially those that have utility in aiding a user in locating data. Catalogues include lists of events, files in a product, and data availability.
Diagram
Diagram spase-1_1_0_xsd.tmp#Catalog_ResourceID spase-1_1_0_xsd.tmp#Catalog_ResourceHeader spase-1_1_0_xsd.tmp#Catalog_AccessInformation spase-1_1_0_xsd.tmp#Catalog_ProviderResourceName spase-1_1_0_xsd.tmp#Catalog_ProviderVersion spase-1_1_0_xsd.tmp#Catalog_InstrumentID spase-1_1_0_xsd.tmp#Catalog_PhenomenonType spase-1_1_0_xsd.tmp#Catalog_TimeSpan spase-1_1_0_xsd.tmp#Catalog_Caveats spase-1_1_0_xsd.tmp#Catalog_Keyword spase-1_1_0_xsd.tmp#Catalog_InputResourceID
Used by
Model
Children spase:AccessInformation, spase:Caveats, spase:InputResourceID, spase:InstrumentID, spase:Keyword, spase:PhenomenonType, spase:ProviderResourceName, spase:ProviderVersion, spase:ResourceHeader, spase:ResourceID, spase:TimeSpan
Source
<xsd:complexType name="Catalog">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A tabular listing of events or observational notes, especially those that have utility in aiding a user in locating data. Catalogues include lists of events, files in a product, and data availability.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="AccessInformation" type="spase:AccessInformation" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ProviderResourceName" type="spase:ProviderResourceName" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="ProviderVersion" type="spase:ProviderVersion" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="InstrumentID" type="spase:InstrumentID" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="PhenomenonType" type="spase:PhenomenonType" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="TimeSpan" type="spase:TimeSpan" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Keyword" type="spase:Keyword" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="InputResourceID" type="spase:InputResourceID" minOccurs="1" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:ResourceID
Namespace http://www.spase-group.org/data/schema
Annotations
A Resource ID is a URI that has the form scheme://authority/path where scheme is spase for those resources administered through the SPASE framework, authority is the unique identifier for the resource provider registered within the SPASE framework and path is the unique identifier of the resource within the context of the authority. The resource ID must be unique within the SPASE framework.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ResourceID">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A Resource ID is a URI that has the form scheme://authority/path where scheme is spase for those resources administered through the SPASE framework, authority is the unique identifier for the resource provider registered within the SPASE framework and path is the unique identifier of the resource within the context of the authority. The resource ID must be unique within the SPASE framework.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:ResourceHeader
Namespace http://www.spase-group.org/data/schema
Annotations
Attributes of a resource which pertain to the provider of the resource and descriptive information about the resource.
Diagram
Diagram spase-1_1_0_xsd.tmp#ResourceHeader_ResourceName spase-1_1_0_xsd.tmp#ResourceHeader_AlternateName spase-1_1_0_xsd.tmp#ResourceHeader_ReleaseDate spase-1_1_0_xsd.tmp#ResourceHeader_Description spase-1_1_0_xsd.tmp#ResourceHeader_Acknowledgement spase-1_1_0_xsd.tmp#ResourceHeader_Contact spase-1_1_0_xsd.tmp#ResourceHeader_InformationURL spase-1_1_0_xsd.tmp#ResourceHeader_AssociationID
Used by
Model
Children spase:Acknowledgement, spase:AlternateName, spase:AssociationID, spase:Contact, spase:Description, spase:InformationURL, spase:ReleaseDate, spase:ResourceName
Source
<xsd:complexType name="ResourceHeader">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Attributes of a resource which pertain to the provider of the resource and descriptive information about the resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceName" type="spase:ResourceName" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="AlternateName" type="spase:AlternateName" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="ReleaseDate" type="spase:ReleaseDate" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Description" type="spase:Description" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Acknowledgement" type="spase:Acknowledgement" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Contact" type="spase:Contact" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="InformationURL" type="spase:InformationURL" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="AssociationID" type="spase:AssociationID" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:ResourceName
Namespace http://www.spase-group.org/data/schema
Annotations
A short textual description of a resource which may be useful when read by a person.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ResourceName">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A short textual description of a resource which may be useful when read by a person.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:AlternateName
Namespace http://www.spase-group.org/data/schema
Annotations
An alternative or shortened name used to refer to a resource. This includes acronyms, expanded names or synonym for a resource.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="AlternateName">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">An alternative or shortened name used to refer to a resource. This includes acronyms, expanded names or synonym for a resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:ReleaseDate
Namespace http://www.spase-group.org/data/schema
Annotations
The point in time when an item is made available.
Diagram
Diagram
Type xsd:dateTime
Used by
Source
<xsd:simpleType name="ReleaseDate">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The point in time when an item is made available.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:dateTime"/>
</xsd:simpleType>
Simple Type spase:Description
Namespace http://www.spase-group.org/data/schema
Annotations
A detailed description of the resource which should include discussions of the main quantities in the resource, possible uses and search terms. A description should also include whether any corrections (i.e, geometry, inertial) have been applied to it.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Description">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A detailed description of the resource which should include discussions of the main quantities in the resource, possible uses and search terms. A description should also include whether any corrections (i.e, geometry, inertial) have been applied to it.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:Acknowledgement
Namespace http://www.spase-group.org/data/schema
Annotations
The individual, group or organization which should be acknowledged when the data is used in or contributes to a presentation or publication.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Acknowledgement">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The individual, group or organization which should be acknowledged when the data is used in or contributes to a presentation or publication.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:Contact
Namespace http://www.spase-group.org/data/schema
Annotations
The person or organization who may be able to provide special assistance or serve as a channel for communication for additional information about a resource.
Diagram
Diagram spase-1_1_0_xsd.tmp#Contact_PersonID spase-1_1_0_xsd.tmp#Contact_Role
Used by
Model
Children spase:PersonID, spase:Role
Source
<xsd:complexType name="Contact">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The person or organization who may be able to provide special assistance or serve as a channel for communication for additional information about a resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="PersonID" type="spase:PersonID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Role" type="spase:Role" minOccurs="1" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:PersonID
Namespace http://www.spase-group.org/data/schema
Annotations
The identifier assigned to a Person description.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="PersonID">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The identifier assigned to a Person description.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:Role
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the assigned or assumed function or position of an individual.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration CoInvestigator
An individual who is a scientific peer and major participant for an investigation.
enumeration DataProducer
An individual who generated the resource and is familiar with its provenance.
enumeration GeneralContact
An individual who can provide information on a range of subjects or who can direct you to a domain expert.
enumeration PrincipalInvestigator
An individual who is the administrative and scientific lead for an investigation.
enumeration ProjectScientist
An individual who is an expert in the phenomenon and related physics explored by the project. A project scientist may also have a manageral role within the project.
enumeration Scientist
An individual who is an expert in the phenomenon and related physics represented by the resource.
enumeration TeamLeader
An individual who is the scientific and administrative lead for an investigation.
enumeration TeamMember
An individual who is a major participant in an investigation.
enumeration TechnicalContact
An individual who can provide specific information with regard to the resource or supporting software
Used by
Source
<xsd:simpleType name="Role">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the assigned or assumed function or position of an individual.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="CoInvestigator">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who is a scientific peer and major participant for an investigation.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="DataProducer">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who generated the resource and is familiar with its provenance.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GeneralContact">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who can provide information on a range of subjects or who can direct you to a domain expert.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="PrincipalInvestigator">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who is the administrative and scientific lead for an investigation.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ProjectScientist">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who is an expert in the phenomenon and related physics explored by the project. A project scientist may also have a manageral role within the project.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Scientist">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who is an expert in the phenomenon and related physics represented by the resource.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="TeamLeader">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who is the scientific and administrative lead for an investigation.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="TeamMember">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who is a major participant in an investigation.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="TechnicalContact">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An individual who can provide specific information with regard to the resource or supporting software</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:InformationURL
Namespace http://www.spase-group.org/data/schema
Annotations
Attributes of the method of acquiring additional information.
Diagram
Diagram spase-1_1_0_xsd.tmp#InformationURL_Name spase-1_1_0_xsd.tmp#InformationURL_URL spase-1_1_0_xsd.tmp#InformationURL_Description
Used by
Model
Children spase:Description, spase:Name, spase:URL
Source
<xsd:complexType name="InformationURL">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Attributes of the method of acquiring additional information.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Name" type="spase:Name" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="URL" type="spase:URL" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Name
Namespace http://www.spase-group.org/data/schema
Annotations
A language unit by which a person or thing is known.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Name">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A language unit by which a person or thing is known.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:URL
Namespace http://www.spase-group.org/data/schema
Annotations
Uniform Resource Locator (URL) is the global address of documents and other resources on the World Wide Web. The first part of the address indicates what protocol to use, and the second part specifies the IP address or the domain name where the resource is located followed by the pathname of the resource. A URL is specified in the form protocol://server.domain.name:port/pathname. Example protocols are HTTP or FTP, server domain name is the Internet name.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="URL">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Uniform Resource Locator (URL) is the global address of documents and other resources on the World Wide Web. The first part of the address indicates what protocol to use, and the second part specifies the IP address or the domain name where the resource is located followed by the pathname of the resource. A URL is specified in the form protocol://server.domain.name:port/pathname. Example protocols are HTTP or FTP, server domain name is the Internet name.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:AssociationID
Namespace http://www.spase-group.org/data/schema
Annotations
The resource identifier for a resource with which this resource is closely associated.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="AssociationID">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The resource identifier for a resource with which this resource is closely associated.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:AccessInformation
Namespace http://www.spase-group.org/data/schema
Annotations
Attributes of the resource which pertain to how to acquire the resource, availability and storage format.
Diagram
Diagram spase-1_1_0_xsd.tmp#AccessInformation_RepositoryID spase-1_1_0_xsd.tmp#AccessInformation_Availability spase-1_1_0_xsd.tmp#AccessInformation_AccessRights spase-1_1_0_xsd.tmp#AccessInformation_AccessURL spase-1_1_0_xsd.tmp#AccessInformation_Format spase-1_1_0_xsd.tmp#AccessInformation_Encoding spase-1_1_0_xsd.tmp#AccessInformation_Acknowledgement
Used by
Model
Children spase:AccessRights, spase:AccessURL, spase:Acknowledgement, spase:Availability, spase:Encoding, spase:Format, spase:RepositoryID
Source
<xsd:complexType name="AccessInformation">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Attributes of the resource which pertain to how to acquire the resource, availability and storage format.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="RepositoryID" type="spase:RepositoryID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Availability" type="spase:Availability" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="AccessRights" type="spase:AccessRights" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="AccessURL" type="spase:AccessURL" minOccurs="1" maxOccurs="unbounded"/>
    <xsd:element name="Format" type="spase:Format" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Encoding" type="spase:Encoding" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Acknowledgement" type="spase:Acknowledgement" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:RepositoryID
Namespace http://www.spase-group.org/data/schema
Annotations
The identifier of an Repository resource.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="RepositoryID">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The identifier of an Repository resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:Availability
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for indicating the method or service which may be used to access the resource.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Offline
Not directly accessible electronically. This includes resources which may to be moved to an online status in response to a given request.
enumeration Online
Directly accessible electronically.
Used by
Source
<xsd:simpleType name="Availability">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for indicating the method or service which may be used to access the resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Offline">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Not directly accessible electronically. This includes resources which may to be moved to an online status in response to a given request.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Online">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Directly accessible electronically.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:AccessRights
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for permissions granted or denied by the host of a product to allow other users to access and use the resource.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Open
Access is granted to everyone.
enumeration Restricted
Access to the product is regulated and requires some form of identification.
Used by
Source
<xsd:simpleType name="AccessRights">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for permissions granted or denied by the host of a product to allow other users to access and use the resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Open">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Access is granted to everyone.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Restricted">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Access to the product is regulated and requires some form of identification.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:AccessURL
Namespace http://www.spase-group.org/data/schema
Annotations
Attributes of the method of acquiring a resource including a URL, name and description.
Diagram
Diagram spase-1_1_0_xsd.tmp#AccessURL_Name spase-1_1_0_xsd.tmp#AccessURL_URL spase-1_1_0_xsd.tmp#AccessURL_Description
Used by
Model
Children spase:Description, spase:Name, spase:URL
Source
<xsd:complexType name="AccessURL">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Attributes of the method of acquiring a resource including a URL, name and description.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Name" type="spase:Name" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="URL" type="spase:URL" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Format
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for data organized according to preset specifications.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration AVI
Audio Video Interleave (AVI) a digital format for movies that conforms to the Microsoft Windows Resource Interchange File Format (RIFF).
enumeration Binary
A direct representation of the bits which may be stored in memory on a computer.
enumeration CDF
Common Data Format (CDF). A binary storage format developed at Goddard Space Flight Center (GSFC).
enumeration CEF
Cluster Exchange Format (CEF) is a self-documenting ASCII format designed for the exchange of data. There are two versions of CEF which are not totally compatible.
enumeration CEF1
Cluster Exchange Format (CEF), version 1, is a self-documenting ASCII format designed for the exchange of data. The metadata contains information compatible with the ISTP recommendations for CDF.
enumeration CEF2
Cluster Exchange Format (CEF), version 2, is a self-documenting ASCII format designed for the exchange of data and introduced for Cluster Active Archive. Compared to version 1, the metadata description of vectors and tensors is different.
enumeration FITS
Flexible Image Transport System (FITS) is a digital format primarily designed to store scientific data sets consisting of multi-dimensional arrays (1-D spectra, 2-D images or 3-D data cubes) and 2-dimensional tables containing rows and columns of data.
enumeration GIF
Graphic Interchange Format (GIF) first introduced in 1987 by CompuServe. GIF uses LZW compression and images are limited to 256 colours.
enumeration HDF
Hierarchical Data Format
enumeration HDF4
Hierarchical Data Format, Version 4
enumeration HDF5
Hierarchical Data Format, Version 5
enumeration HTML
A text file containing structured information represented in the HyperText Mark-up Language (HTML). See <http://www.w3.org/MarkUp/>
enumeration IDFS
Instrument Data File Set (IDFS) is a set of files written in a prescribed format which contain data, timing data, and meta-data. IDFS was developed at Southwest Research Institute (SwRI).
enumeration IDL
Interactive Data Language (IDL) save set. IDL is a proprietary format.
enumeration JPEG
A binary format for still images defined by the Joint Photographic Experts Group
enumeration MATLAB_4
MATLAB Workspace save set, version 4. MAT-files are double-precision, binary, MATLAB format files. MATLAB is a proprietary product of The MathWorks.
enumeration MATLAB_6
MATLAB Workspace save set, version 6. MAT-files are double-precision, binary, MATLAB format files. MATLAB is a proprietary product of The MathWorks.
enumeration MATLAB_7
MATLAB Workspace save set, version 7. MAT-files are double-precision, binary, MATLAB format files. Version 7 includes data compression and Unicode encoding. MATLAB is a proprietary product of The MathWorks.
enumeration MPEG
A digital format for movies defined by the Motion Picture Experts Group
enumeration NCAR
The National Center for Atmospheric Research (NCAR) format. A complete description of that standard is given in appendix C of the Report on Establishment & Operation of the Incoherent- Scatter Data Base, dated August 23, 1984, obtainable from NCAR, P.O. Box 3000 Boulder, Colorado 80307-3000.
enumeration NetCDF
Unidata Program Centers Network Common Data Form (NetCDF). A self-describing data portable data format for array-oriented data access. See <http://my.unidata.ucar.edu/content/software/netcdf>
enumeration PDF
A document expressed in the Portable Document Format (PDF) as defined by Adobe.
enumeration PNG
A digital format for still images. Portable Network Graphics (PNG)
enumeration QuickTime
A format for digital movies, as defined by Apple Computer. See <http://developer.apple.com/quicktime/>
enumeration TIFF
A binary format for still pictures. Tagged Image Format File (TIFF). Originally developed by Aldus and now controlled by Adobe.
enumeration Text
ASCII text
enumeration UDF
Universal Data Format (UDF). The Optical Technology Storage Associations Universal Disk Format, based on ISO 13346. See <http://www.osta.org/specs/index.htm>
enumeration VOTable
A proposed XML standard designed as a flexible storage and exchange format for tabular data.
enumeration XML
eXtensible Mark-up Language (XML). A structured format for representing information. See <http://www.w3.org/XML/>
Used by
Source
<xsd:simpleType name="Format">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for data organized according to preset specifications.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="AVI">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Audio Video Interleave (AVI) a digital format for movies that conforms to the Microsoft Windows Resource Interchange File Format (RIFF).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Binary">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A direct representation of the bits which may be stored in memory on a computer.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="CDF">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Common Data Format (CDF). A binary storage format developed at Goddard Space Flight Center (GSFC).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="CEF">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Cluster Exchange Format (CEF) is a self-documenting ASCII format designed for the exchange of data. There are two versions of CEF which are not totally compatible.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="CEF1">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Cluster Exchange Format (CEF), version 1, is a self-documenting ASCII format designed for the exchange of data. The metadata contains information compatible with the ISTP recommendations for CDF.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="CEF2">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Cluster Exchange Format (CEF), version 2, is a self-documenting ASCII format designed for the exchange of data and introduced for Cluster Active Archive. Compared to version 1, the metadata description of vectors and tensors is different.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="FITS">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Flexible Image Transport System (FITS) is a digital format primarily designed to store scientific data sets consisting of multi-dimensional arrays (1-D spectra, 2-D images or 3-D data cubes) and 2-dimensional tables containing rows and columns of data.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GIF">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Graphic Interchange Format (GIF) first introduced in 1987 by CompuServe. GIF uses LZW compression and images are limited to 256 colours.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HDF">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Hierarchical Data Format</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HDF4">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Hierarchical Data Format, Version 4</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HDF5">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Hierarchical Data Format, Version 5</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HTML">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A text file containing structured information represented in the HyperText Mark-up Language (HTML). See <http://www.w3.org/MarkUp/></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="IDFS">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Instrument Data File Set (IDFS) is a set of files written in a prescribed format which contain data, timing data, and meta-data. IDFS was developed at Southwest Research Institute (SwRI).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="IDL">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Interactive Data Language (IDL) save set. IDL is a proprietary format.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="JPEG">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A binary format for still images defined by the Joint Photographic Experts Group</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MATLAB_4">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">MATLAB Workspace save set, version 4. MAT-files are double-precision, binary, MATLAB format files. MATLAB is a proprietary product of The MathWorks.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MATLAB_6">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">MATLAB Workspace save set, version 6. MAT-files are double-precision, binary, MATLAB format files. MATLAB is a proprietary product of The MathWorks.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MATLAB_7">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">MATLAB Workspace save set, version 7. MAT-files are double-precision, binary, MATLAB format files. Version 7 includes data compression and Unicode encoding. MATLAB is a proprietary product of The MathWorks.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MPEG">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A digital format for movies defined by the Motion Picture Experts Group</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NCAR">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The National Center for Atmospheric Research (NCAR) format. A complete description of that standard is given in appendix C of the Report on Establishment & Operation of the Incoherent- Scatter Data Base, dated August 23, 1984, obtainable from NCAR, P.O. Box 3000 Boulder, Colorado 80307-3000.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NetCDF">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Unidata Program Center&#39;s Network Common Data Form (NetCDF). A self-describing data portable data format for array-oriented data access. See <http://my.unidata.ucar.edu/content/software/netcdf></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="PDF">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A document expressed in the Portable Document Format (PDF) as defined by Adobe.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="PNG">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A digital format for still images. Portable Network Graphics (PNG)</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="QuickTime">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A format for digital movies, as defined by Apple Computer. See <http://developer.apple.com/quicktime/></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="TIFF">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A binary format for still pictures. Tagged Image Format File (TIFF). Originally developed by Aldus and now controlled by Adobe.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Text">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">ASCII text</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="UDF">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Universal Data Format (UDF). The Optical Technology Storage Association&#39;s Universal Disk Format, based on ISO 13346. See <http://www.osta.org/specs/index.htm></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="VOTable">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A proposed XML standard designed as a flexible storage and exchange format for tabular data.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="XML">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">eXtensible Mark-up Language (XML). A structured format for representing information. See <http://www.w3.org/XML/></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:Encoding
Namespace http://www.spase-group.org/data/schema
Annotations
Identifier for unambiguous rules that establishes the representation of information within a file.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration ASCII
A sequence of characters that adheres to American Standard Code for Information Interchange (ASCII) which is an 7-bit character-coding scheme.
enumeration BZIP2
An open standard algorithm by Julian Seward using Burrows-Wheeler block sorting and Huffman coding. See <http://www.bzip.org/>
enumeration Base64
A data encoding scheme whereby binary-encoded data is converted to printable ASCII characters. It is defined as a MIME content transfer encoding for use in internet e-mail. The only characters used are the upper- and lower-case Roman alphabet characters (A-Z, a-z), the numerals (0-9), and the + and / symbols, with the = symbol as a special suffix (padding) code.
enumeration GZIP
An open standard algorithm distributed by GHU based on LZ77 and Huffman coding. See <http://www.gnu.org/software/gzip/gzip.html> or <http://www.gzip.org/>
enumeration None
A lack or absence of anything.
enumeration Unicode
Text in multi-byte Unicode format.
enumeration ZIP
An open standard for compression which is a variation of the LZW method and was originally used in the PKZIP utility.
Used by
Source
<xsd:simpleType name="Encoding">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifier for unambiguous rules that establishes the representation of information within a file.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="ASCII">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A sequence of characters that adheres to American Standard Code for Information Interchange (ASCII) which is an 7-bit character-coding scheme.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="BZIP2">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An open standard algorithm by Julian Seward using Burrows-Wheeler block sorting and Huffman coding. See <http://www.bzip.org/></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Base64">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A data encoding scheme whereby binary-encoded data is converted to printable ASCII characters. It is defined as a MIME content transfer encoding for use in internet e-mail. The only characters used are the upper- and lower-case Roman alphabet characters (A-Z, a-z), the numerals (0-9), and the + and / symbols, with the = symbol as a special suffix (padding) code.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GZIP">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An open standard algorithm distributed by GHU based on LZ77 and Huffman coding. See <http://www.gnu.org/software/gzip/gzip.html> or <http://www.gzip.org/></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="None">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A lack or absence of anything.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Unicode">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Text in multi-byte Unicode format.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ZIP">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An open standard for compression which is a variation of the LZW method and was originally used in the PKZIP utility.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:ProviderResourceName
Namespace http://www.spase-group.org/data/schema
Annotations
A short textual description of a resource used by the provider which may be used to identify a resource.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ProviderResourceName">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A short textual description of a resource used by the provider which may be used to identify a resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:ProviderVersion
Namespace http://www.spase-group.org/data/schema
Annotations
Describes the release or edition of the product used by the provider. The formation rule may vary between providers. It is intended to aid in queries to the provider regarding the product.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ProviderVersion">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Describes the release or edition of the product used by the provider. The formation rule may vary between providers. It is intended to aid in queries to the provider regarding the product.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:InstrumentID
Namespace http://www.spase-group.org/data/schema
Annotations
The identifier of an Instrument resource.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="InstrumentID">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The identifier of an Instrument resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:PhenomenonType
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the characteristics or categorization of an observation. Note: Joe King to provide.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration BowShockCrossing
A crossing of the boundary between the undisturbed (except for foreshock effects) solar wind and the shocked, decelerated solar wind of the magnetosheath.
enumeration CoronalMassEjection
A solar event which involves a burst of plasma which is ejected from the Sun into the interplanetary medium.
enumeration EnergeticSolarParticleEvent
An enhancement of interplanetary fluxes of energetic ions accelerated by interplanetary shocks and/or solar flares.
enumeration ForbushDecrease
A rapid decrease in the observed galactic cosmic ray intensity following the passage of an outwardly convecting interplanetary magnetic field disturbance, such as those associated with large CMEs, that sweep some galactic cosmic rays away from Earth.
enumeration GeomagneticStorm
A magnetospheric disturbance typically defined by variations in the horizontal component of the Earths surface magnetic field.  The variation typically starts with a field enhancement associated with a solar wind pressure pulse and continues with a field depression associated with an enhancement of the diamagnetic magnetospheric ring current.
enumeration InterplanetaryShock
A shock propagating generally antisunward through the slower solar wind, often seen in front of CME-associated plasma clouds.
enumeration MagnetopauseCrossing
A crossing of the interface between the shocked solar wind in the magnetosheath and the magnetic field and plasma in the magnetosphere.
enumeration SolarFlare
An explosive event in the Suns atmosphere which produces electromagnetic radiation across the electromagnetic spectrum at multiple wavelengths from long-wave radio to the shortest wavelength gamma rays.
enumeration SolarWindExtreme
Intervals of unusually large or small values of solar wind attributes such as flow speed and ion density.
Used by
Source
<xsd:simpleType name="PhenomenonType">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the characteristics or categorization of an observation. Note: Joe King to provide.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="BowShockCrossing">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A crossing of the boundary between the undisturbed (except for foreshock effects) solar wind and the shocked, decelerated solar wind of the magnetosheath.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="CoronalMassEjection">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A solar event which involves a burst of plasma which is ejected from the Sun into the interplanetary medium.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="EnergeticSolarParticleEvent">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An enhancement of interplanetary fluxes of energetic ions accelerated by interplanetary shocks and/or solar flares.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ForbushDecrease">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A rapid decrease in the observed galactic cosmic ray intensity following the passage of an outwardly convecting interplanetary magnetic field disturbance, such as those associated with large CME&#39;s, that sweep some galactic cosmic rays away from Earth.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GeomagneticStorm">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A magnetospheric disturbance typically defined by variations in the horizontal component of the Earth&#39;s surface magnetic field. The variation typically starts with a field enhancement associated with a solar wind pressure pulse and continues with a field depression associated with an enhancement of the diamagnetic magnetospheric ring current.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="InterplanetaryShock">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A shock propagating generally antisunward through the slower solar wind, often seen in front of CME-associated plasma clouds.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MagnetopauseCrossing">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A crossing of the interface between the shocked solar wind in the magnetosheath and the magnetic field and plasma in the magnetosphere.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SolarFlare">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An explosive event in the Sun&#39;s atmosphere which produces electromagnetic radiation across the electromagnetic spectrum at multiple wavelengths from long-wave radio to the shortest wavelength gamma rays.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SolarWindExtreme">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Intervals of unusually large or small values of solar wind attributes such as flow speed and ion density.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:TimeSpan
Namespace http://www.spase-group.org/data/schema
Annotations
The duration of an interval in time.
Diagram
Diagram spase-1_1_0_xsd.tmp#TimeSpan_StartDate spase-1_1_0_xsd.tmp#TimeSpan_EndDate spase-1_1_0_xsd.tmp#TimeSpan_RelativeEndDate
Used by
Model
Children spase:EndDate, spase:RelativeEndDate, spase:StartDate
Source
<xsd:complexType name="TimeSpan">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The duration of an interval in time.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="StartDate" type="spase:StartDate" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="EndDate" type="spase:EndDate" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="RelativeEndDate" type="spase:RelativeEndDate" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:StartDate
Namespace http://www.spase-group.org/data/schema
Annotations
The specification of a starting point in time.
Diagram
Diagram
Type xsd:dateTime
Used by
Source
<xsd:simpleType name="StartDate">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The specification of a starting point in time.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:dateTime"/>
</xsd:simpleType>
Simple Type spase:EndDate
Namespace http://www.spase-group.org/data/schema
Annotations
The specification of a stopping point in time.
Diagram
Diagram
Type xsd:dateTime
Used by
Source
<xsd:simpleType name="EndDate">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The specification of a stopping point in time.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:dateTime"/>
</xsd:simpleType>
Simple Type spase:RelativeEndDate
Namespace http://www.spase-group.org/data/schema
Annotations
An indication of the nominal end date relative to the present.
Diagram
Diagram
Type xsd:dateTime
Used by
Source
<xsd:simpleType name="RelativeEndDate">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">An indication of the nominal end date relative to the present.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:dateTime"/>
</xsd:simpleType>
Simple Type spase:Caveats
Namespace http://www.spase-group.org/data/schema
Annotations
Information which may be important in the avoidance of misuse of the resource. This includes things such as instrument maladies, corruption or contamination.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Caveats">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Information which may be important in the avoidance of misuse of the resource. This includes things such as instrument maladies, corruption or contamination.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:Keyword
Namespace http://www.spase-group.org/data/schema
Annotations
A word or phrase that is relevant to the resource but does not exist in other documentary information.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Keyword">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A word or phrase that is relevant to the resource but does not exist in other documentary information.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:InputResourceID
Namespace http://www.spase-group.org/data/schema
Annotations
The resource identifier for a resource which was used to generate this resource.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="InputResourceID">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The resource identifier for a resource which was used to generate this resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:DisplayData
Namespace http://www.spase-group.org/data/schema
Annotations
A graphical representation of data wherein the underlying numeric values are not (readily) accessible for analysis.. Examples are line plots and spectrograms.
Diagram
Diagram spase-1_1_0_xsd.tmp#DisplayData_ResourceID spase-1_1_0_xsd.tmp#DisplayData_ResourceHeader spase-1_1_0_xsd.tmp#DisplayData_AccessInformation spase-1_1_0_xsd.tmp#DisplayData_ProviderResourceName spase-1_1_0_xsd.tmp#DisplayData_ProviderProcessingLevel spase-1_1_0_xsd.tmp#DisplayData_ProviderVersion spase-1_1_0_xsd.tmp#DisplayData_InstrumentID spase-1_1_0_xsd.tmp#DisplayData_MeasurementType spase-1_1_0_xsd.tmp#DisplayData_TemporalDescription spase-1_1_0_xsd.tmp#DisplayData_SpectralRange spase-1_1_0_xsd.tmp#DisplayData_DisplayCadence spase-1_1_0_xsd.tmp#DisplayData_InstrumentRegion spase-1_1_0_xsd.tmp#DisplayData_ObservedRegion spase-1_1_0_xsd.tmp#DisplayData_Caveats spase-1_1_0_xsd.tmp#DisplayData_Keyword spase-1_1_0_xsd.tmp#DisplayData_InputResourceID
Used by
Model
Children spase:AccessInformation, spase:Caveats, spase:DisplayCadence, spase:InputResourceID, spase:InstrumentID, spase:InstrumentRegion, spase:Keyword, spase:MeasurementType, spase:ObservedRegion, spase:ProviderProcessingLevel, spase:ProviderResourceName, spase:ProviderVersion, spase:ResourceHeader, spase:ResourceID, spase:SpectralRange, spase:TemporalDescription
Source
<xsd:complexType name="DisplayData">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A graphical representation of data wherein the underlying numeric values are not (readily) accessible for analysis.. Examples are line plots and spectrograms.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="AccessInformation" type="spase:AccessInformation" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ProviderResourceName" type="spase:ProviderResourceName" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="ProviderProcessingLevel" type="spase:ProviderProcessingLevel" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="ProviderVersion" type="spase:ProviderVersion" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="InstrumentID" type="spase:InstrumentID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="MeasurementType" type="spase:MeasurementType" minOccurs="1" maxOccurs="unbounded"/>
    <xsd:element name="TemporalDescription" type="spase:TemporalDescription" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="SpectralRange" type="spase:SpectralRange" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="DisplayCadence" type="spase:DisplayCadence" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="InstrumentRegion" type="spase:Region" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="ObservedRegion" type="spase:Region" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Keyword" type="spase:Keyword" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="InputResourceID" type="spase:InputResourceID" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:ProviderProcessingLevel
Namespace http://www.spase-group.org/data/schema
Annotations
The provider specific classification of the processing performed on the product.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ProviderProcessingLevel">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The provider specific classification of the processing performed on the product.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:MeasurementType
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the method of making an estimated value of a quantity that forms the basis of an observaton.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration ActivityIndex
An indication, derived from one or more measurements, of the level of activity of an object or region, such as sunspot number, F10.7 flux, Dst, or the Polar Cap Indices.
enumeration ChargedParticleFlux
Measurements of fluxes of charged or ionized particles at above thermal energies, including relativistic particles of solar and galactic origin. May give simple fluxes, but more complete distributions are sometimes possible. Composition measurements may also be made.
enumeration Dopplergram
A map or image depicting the spatial distribution of line-of-sight velocities of the observed object.
enumeration DynamicSpectra
A three-dimensional representation of successive spectra which allows time evolution to be clearly seen. Time is plotted along the abscissa, frequency (or particle energy) along the ordinate, and the spectral power density (or differential particle flux) is represented by different shades of grey, or color. This representation is also known as a spectrogram.
enumeration ElectricField
Measurements of electric field vectors (sometimes not all components) as a time series.
enumeration EnergeticParticles
Pieces of matter that are moving very fast. Energetic particles include protons, electrons, neutrons, neutrinos, the nuclei of atoms, and other sub-atomic particles.
enumeration ImageIntensity
Measurements of the two-dimensional distribution of the intensity of photons from some region or object such as the Sun or the polar auroral regions; can be in any wavelength band, and polarized, etc.
enumeration IonComposition
In situ measurements of the relative flux or density of electrically charged particles in the space environment. May give simple fluxes, but full distribution functions are sometimes measured.
enumeration Irradiance
A radiometric term for the power of electromagnetic radiation at a surface, per unit area. Irradiance is used when the electromagnetic radiation is incident on the surface. The SI unit of irradiance is watts per square meter (W7m-2).
enumeration MagneticField
Measurements of magnetic field vectors (sometimes not all components) as time series; can be space- or ground-based. Also, [Zeeman splitting, etc. based]: A region of space near a magnetized body where magnetic forces can be detected [as measured by methods such as Zeeman splitting, etc.]
enumeration Magnetogram
Measurements of the vector or line-of-sight magnetic field determined from remote sensing measurements of the detailed structure of spectral lines, including their splitting and polarization. (Magnetogram.)
enumeration NeutralAtomImages
Measurements of neutral atom fluxes as a function of look direction; often related to remote energetic charged particles that lose their charge through charge-exchange and then reach the detector on a line.
enumeration NeutralGas
Measurements of neutral atomic and molecular components of a body and its surrounding environments.
enumeration Profile
Measurements of a quantity as a function of height above an object such as the limb of a body.
enumeration Radiance
A radiometric measurement that describe the amount of electromagnetic radiation that passes through or is emitted from a particular area, and falls within a given solid angle in a specified direction. They are used to characterize both emission from diffuse sources and reflection from diffuse surfaces. The SI unit of radiance is watts per steradian per square meter (W7sr-17m-2).
enumeration RadioSoundings
Measurements of plasma density, magnetic field and possibly other parameters of the space environment by active probing of the plasma by radio waves.
enumeration RadioandPlasmaWaves
Measurements of electric and/or magnetic fields using electric or magnetic antennas at frequencies anywhere between the spacecraft spin frequency and the characteristic frequencies of the ambient plasma.  The output can be waveform, power spectral density, or other statistical parameters.
enumeration ThermalPlasma
Measurements of the plasma in the energy regime where the most of the plasma occurs.  May be the basic fluxes in the form of distribution functions or the derived bulk parameters (density, flow velocity, etc.).
Used by
Source
<xsd:simpleType name="MeasurementType">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the method of making an estimated value of a quantity that forms the basis of an observaton.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="ActivityIndex">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An indication, derived from one or more measurements, of the level of activity of an object or region, such as sunspot number, F10.7 flux, Dst, or the Polar Cap Indices.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ChargedParticleFlux">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of fluxes of charged or ionized particles at above thermal energies, including relativistic particles of solar and galactic origin. May give simple fluxes, but more complete distributions are sometimes possible. Composition measurements may also be made.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Dopplergram">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A map or image depicting the spatial distribution of line-of-sight velocities of the observed object.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="DynamicSpectra">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A three-dimensional representation of successive spectra which allows time evolution to be clearly seen. Time is plotted along the abscissa, frequency (or particle energy) along the ordinate, and the spectral power density (or differential particle flux) is represented by different shades of grey, or color. This representation is also known as a spectrogram.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ElectricField">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of electric field vectors (sometimes not all components) as a time series.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="EnergeticParticles">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Pieces of matter that are moving very fast. Energetic particles include protons, electrons, neutrons, neutrinos, the nuclei of atoms, and other sub-atomic particles.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ImageIntensity">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of the two-dimensional distribution of the intensity of photons from some region or object such as the Sun or the polar auroral regions; can be in any wavelength band, and polarized, etc.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="IonComposition">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">In situ measurements of the relative flux or density of electrically charged particles in the space environment. May give simple fluxes, but full distribution functions are sometimes measured.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Irradiance">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A radiometric term for the power of electromagnetic radiation at a surface, per unit area. Irradiance is used when the electromagnetic radiation is incident on the surface. The SI unit of irradiance is watts per square meter (W7m-2).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MagneticField">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of magnetic field vectors (sometimes not all components) as time series; can be space- or ground-based. Also, [Zeeman splitting, etc. based]: A region of space near a magnetized body where magnetic forces can be detected [as measured by methods such as Zeeman splitting, etc.]</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnetogram">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of the vector or line-of-sight magnetic field determined from remote sensing measurements of the detailed structure of spectral lines, including their splitting and polarization. (Magnetogram.)</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NeutralAtomImages">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of neutral atom fluxes as a function of look direction; often related to remote energetic charged particles that lose their charge through charge-exchange and then reach the detector on a line.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NeutralGas">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of neutral atomic and molecular components of a body and its surrounding environments.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Profile">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of a quantity as a function of height above an object such as the limb of a body.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Radiance">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A radiometric measurement that describe the amount of electromagnetic radiation that passes through or is emitted from a particular area, and falls within a given solid angle in a specified direction. They are used to characterize both emission from diffuse sources and reflection from diffuse surfaces. The SI unit of radiance is watts per steradian per square meter (W7sr-17m-2).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="RadioSoundings">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of plasma density, magnetic field and possibly other parameters of the space environment by active probing of the plasma by radio waves.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="RadioandPlasmaWaves">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of electric and/or magnetic fields using electric or magnetic antennas at frequencies anywhere between the spacecraft spin frequency and the characteristic frequencies of the ambient plasma. The output can be waveform, power spectral density, or other statistical parameters.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ThermalPlasma">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of the plasma in the energy regime where the most of the plasma occurs. May be the basic fluxes in the form of distribution functions or the derived bulk parameters (density, flow velocity, etc.).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:TemporalDescription
Namespace http://www.spase-group.org/data/schema
Annotations
A characterization of the time over which the measurement was taken.
Diagram
Diagram spase-1_1_0_xsd.tmp#TemporalDescription_TimeSpan spase-1_1_0_xsd.tmp#TemporalDescription_Cadence spase-1_1_0_xsd.tmp#TemporalDescription_Exposure
Used by
Model
Children spase:Cadence, spase:Exposure, spase:TimeSpan
Source
<xsd:complexType name="TemporalDescription">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A characterization of the time over which the measurement was taken.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="TimeSpan" type="spase:TimeSpan" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Cadence" type="spase:Cadence" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Exposure" type="spase:Exposure" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Cadence
Namespace http://www.spase-group.org/data/schema
Annotations
The time interval between the start of successive measurements.
Diagram
Diagram
Type xsd:time
Used by
Source
<xsd:simpleType name="Cadence">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The time interval between the start of successive measurements.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:time"/>
</xsd:simpleType>
Simple Type spase:Exposure
Namespace http://www.spase-group.org/data/schema
Annotations
The time interval over which an individual measurement is taken.
Diagram
Diagram
Type xsd:time
Used by
Source
<xsd:simpleType name="Exposure">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The time interval over which an individual measurement is taken.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:time"/>
</xsd:simpleType>
Simple Type spase:SpectralRange
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for names associated with wavelengths. Based on the ISO 21348 Solar Irradiance Standard. Additions have been made to extend the frequency ranges to include those used in space physics. Those additions are indicated in blue text. The "Total Solar Irradiance" category has not been included since it is a type of measurement and not a specific spectral range. See Appendix A - Comparison of Spectrum Domains for a comparison of the spectral ranges with  other systems.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration GammaRays
Photons with a wavelength range: 0.00001 to 0.001 nm
enumeration HardXrays
Photons with a wavelength range: 0.001 to 0.1 nm
enumeration Infrared
Photons with a wavelength range: 760 to 1.00x10^6 nm
enumeration Microwave
Photons with a wavelength range: 1.00x10^6 to 1.50x10^7 nm
enumeration Optical
Photons with a wavelength range: 380 to 760 nm
enumeration RadioFrequency
Photons with a wavelength range: 100,000 to 1.00x10^11 nm
enumeration Ultraviolet
Photons with a wavelength range: 10 to 400 nm
enumeration XRays
Photons with a wavelength range: 0.001 <= x < 10 nm
Used by
Source
<xsd:simpleType name="SpectralRange">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for names associated with wavelengths. Based on the ISO 21348 Solar Irradiance Standard. Additions have been made to extend the frequency ranges to include those used in space physics. Those additions are indicated in blue text. The "Total Solar Irradiance" category has not been included since it is a type of measurement and not a specific spectral range. See Appendix A - Comparison of Spectrum Domains for a comparison of the spectral ranges with other systems.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="GammaRays">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Photons with a wavelength range: 0.00001 to 0.001 nm</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HardXrays">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Photons with a wavelength range: 0.001 to 0.1 nm</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Infrared">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Photons with a wavelength range: 760 to 1.00x10^6 nm</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Microwave">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Photons with a wavelength range: 1.00x10^6 to 1.50x10^7 nm</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Optical">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Photons with a wavelength range: 380 to 760 nm</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="RadioFrequency">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Photons with a wavelength range: 100,000 to 1.00x10^11 nm</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Ultraviolet">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Photons with a wavelength range: 10 to 400 nm</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="XRays">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Photons with a wavelength range: 0.001 <= x < 10 nm</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:DisplayCadence
Namespace http://www.spase-group.org/data/schema
Annotations
The time interval between the successive display elements.
Diagram
Diagram
Type xsd:time
Used by
Source
<xsd:simpleType name="DisplayCadence">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The time interval between the successive display elements.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:time"/>
</xsd:simpleType>
Simple Type spase:Region
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for areas of the physical world which may be occupied or observed.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Earth
The third planet from the sun in our solar system.
enumeration Earth.Magnetosheath
The region between the bow shock and the magnetopause, characterized by very turbulent plasma.
enumeration Earth.Magnetosphere
The region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of the planets magnetic field.
enumeration Earth.Magnetosphere.Magnetotail
The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).
enumeration Earth.Magnetosphere.Main
The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.
enumeration Earth.Magnetosphere.Polar
The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.
enumeration Earth.Magnetosphere.RadiationBelt
The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.
enumeration Earth.NearSurface
The gaseous and possibly ionized environment of a body extending from the surface to some specified altitude.  For the Earth, this altitude is 2000 km.
enumeration Earth.NearSurface.Atmosphere
The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.
enumeration Earth.NearSurface.AuroralRegion
The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.
enumeration Earth.NearSurface.Ionosphere
The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..
enumeration Earth.Surface
The outermost area of a solid object.
enumeration Heliosphere
The solar atmosphere extending roughly from the outer corona to the edge of the solar plasma at the heliopause separating primarily solar plasma from interstellar plasma.
enumeration Heliosphere.Inner
The region of the heliosphere extending radially out from the surface of the Sun to 1 AU.
enumeration Heliosphere.NearEarth
The heliospheric region near the Earth which extends to and includes the area near the L1 and L2 Lagrange point.
enumeration Heliosphere.Outer
The region of the heliosphere from, but not including, 1 AU to the farthest extent of the heliosphere (heliopause).
enumeration Heliosphere.Remote1AU
The heliospheric region near the Earths orbit, but exclusive of the region near the Earth.
enumeration Sun
The star upon which our solar system is centered.
enumeration Sun.Chromosphere
The region of the Suns (or a stars) atmosphere above the temperature minimum and below the Transition Region.  The solar chromosphere is approximately 400 km to 2100 km above the photosphere, and characterized by temperatures from 4500 - 28000 K.
enumeration Sun.Corona
The outermost atmospheric region of the Sun or a star, characterized by ionization temperatures above 10^5 K.  The solar corona starts at about 2100 km above the photosphere; there is no generally defined upper limit.
enumeration Sun.Interior
The region inside the body which is not visible from outside the body.
enumeration Sun.Photosphere
The atmospheric layer of the Sun or a star from which continuum radiation, especially optical, is emitted to space.  For the Sun, the photosphere is about 500 km thick.
enumeration Sun.TransitionRegion
A very narrow (<100 km) layer between the chromosphere and the corona where the temperature rises abruptly from about 8000 to about 500,000 K.
Used by
Source
<xsd:simpleType name="Region">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for areas of the physical world which may be occupied or observed.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Earth">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The third planet from the sun in our solar system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.Magnetosheath">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region between the bow shock and the magnetopause, characterized by very turbulent plasma.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.Magnetosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of the planet&#39;s magnetic field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.Magnetosphere.Magnetotail">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.Magnetosphere.Main">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.Magnetosphere.Polar">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.Magnetosphere.RadiationBelt">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.NearSurface">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The gaseous and possibly ionized environment of a body extending from the surface to some specified altitude. For the Earth, this altitude is 2000 km.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.NearSurface.Atmosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.NearSurface.AuroralRegion">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.NearSurface.Ionosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Earth.Surface">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The outermost area of a solid object.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Heliosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The solar atmosphere extending roughly from the outer corona to the edge of the solar plasma at the heliopause separating primarily solar plasma from interstellar plasma.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Heliosphere.Inner">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the heliosphere extending radially out from the surface of the Sun to 1 AU.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Heliosphere.NearEarth">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The heliospheric region near the Earth which extends to and includes the area near the L1 and L2 Lagrange point.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Heliosphere.Outer">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the heliosphere from, but not including, 1 AU to the farthest extent of the heliosphere (heliopause).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Heliosphere.Remote1AU">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The heliospheric region near the Earth&#39;s orbit, but exclusive of the region near the Earth.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Sun">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The star upon which our solar system is centered.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Sun.Chromosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the Sun&#39;s (or a star&#39;s) atmosphere above the temperature minimum and below the Transition Region. The solar chromosphere is approximately 400 km to 2100 km above the photosphere, and characterized by temperatures from 4500 - 28000 K.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Sun.Corona">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The outermost atmospheric region of the Sun or a star, characterized by ionization temperatures above 10^5 K. The solar corona starts at about 2100 km above the photosphere; there is no generally defined upper limit.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Sun.Interior">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region inside the body which is not visible from outside the body.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Sun.Photosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The atmospheric layer of the Sun or a star from which continuum radiation, especially optical, is emitted to space. For the Sun, the photosphere is about 500 km thick.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Sun.TransitionRegion">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A very narrow (<100 km) layer between the chromosphere and the corona where the temperature rises abruptly from about 8000 to about 500,000 K.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:NumericalData
Namespace http://www.spase-group.org/data/schema
Annotations
Data stored as numerical values in a specified format.
Diagram
Diagram spase-1_1_0_xsd.tmp#NumericalData_ResourceID spase-1_1_0_xsd.tmp#NumericalData_ResourceHeader spase-1_1_0_xsd.tmp#NumericalData_AccessInformation spase-1_1_0_xsd.tmp#NumericalData_ProviderResourceName spase-1_1_0_xsd.tmp#NumericalData_ProviderProcessingLevel spase-1_1_0_xsd.tmp#NumericalData_ProviderVersion spase-1_1_0_xsd.tmp#NumericalData_InstrumentID spase-1_1_0_xsd.tmp#NumericalData_MeasurementType spase-1_1_0_xsd.tmp#NumericalData_TemporalDescription spase-1_1_0_xsd.tmp#NumericalData_SpectralRange spase-1_1_0_xsd.tmp#NumericalData_InstrumentRegion spase-1_1_0_xsd.tmp#NumericalData_ObservedRegion spase-1_1_0_xsd.tmp#NumericalData_Caveats spase-1_1_0_xsd.tmp#NumericalData_Keyword spase-1_1_0_xsd.tmp#NumericalData_InputResourceID spase-1_1_0_xsd.tmp#NumericalData_PhysicalParameter
Used by
Model
Children spase:AccessInformation, spase:Caveats, spase:InputResourceID, spase:InstrumentID, spase:InstrumentRegion, spase:Keyword, spase:MeasurementType, spase:ObservedRegion, spase:PhysicalParameter, spase:ProviderProcessingLevel, spase:ProviderResourceName, spase:ProviderVersion, spase:ResourceHeader, spase:ResourceID, spase:SpectralRange, spase:TemporalDescription
Source
<xsd:complexType name="NumericalData">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Data stored as numerical values in a specified format.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="AccessInformation" type="spase:AccessInformation" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ProviderResourceName" type="spase:ProviderResourceName" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="ProviderProcessingLevel" type="spase:ProviderProcessingLevel" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="ProviderVersion" type="spase:ProviderVersion" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="InstrumentID" type="spase:InstrumentID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="MeasurementType" type="spase:MeasurementType" minOccurs="1" maxOccurs="unbounded"/>
    <xsd:element name="TemporalDescription" type="spase:TemporalDescription" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="SpectralRange" type="spase:SpectralRange" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="InstrumentRegion" type="spase:Region" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="ObservedRegion" type="spase:Region" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Keyword" type="spase:Keyword" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="InputResourceID" type="spase:InputResourceID" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="PhysicalParameter" type="spase:PhysicalParameter" minOccurs="1" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type spase:PhysicalParameter
Namespace http://www.spase-group.org/data/schema
Annotations
A container of information regarding a parameter whose values are part of the product. Every product contains or can be related to one or more parameters.
Diagram
Diagram spase-1_1_0_xsd.tmp#PhysicalParameter_Name spase-1_1_0_xsd.tmp#PhysicalParameter_ParameterKey spase-1_1_0_xsd.tmp#PhysicalParameter_Description spase-1_1_0_xsd.tmp#PhysicalParameter_Caveats spase-1_1_0_xsd.tmp#PhysicalParameter_Cadence spase-1_1_0_xsd.tmp#PhysicalParameter_Units spase-1_1_0_xsd.tmp#PhysicalParameter_UnitsConversion spase-1_1_0_xsd.tmp#PhysicalParameter_CoordinateSystem spase-1_1_0_xsd.tmp#PhysicalParameter_Dimension spase-1_1_0_xsd.tmp#PhysicalParameter_Measured spase-1_1_0_xsd.tmp#PhysicalParameter_Support
Used by
Model
Children spase:Cadence, spase:Caveats, spase:CoordinateSystem, spase:Description, spase:Dimension, spase:Measured, spase:Name, spase:ParameterKey, spase:Support, spase:Units, spase:UnitsConversion
Source
<xsd:complexType name="PhysicalParameter">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A container of information regarding a parameter whose values are part of the product. Every product contains or can be related to one or more parameters.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Name" type="spase:Name" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="ParameterKey" type="spase:ParameterKey" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Description" type="spase:Description" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Caveats" type="spase:Caveats" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Cadence" type="spase:Cadence" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="UnitsConversion" type="spase:UnitsConversion" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="CoordinateSystem" type="spase:CoordinateSystem" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Dimension" type="spase:Dimension" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Measured" type="spase:Measured" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Support" type="spase:Support" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:ParameterKey
Namespace http://www.spase-group.org/data/schema
Annotations
The name or identfier which can be used to access the parameter in the resource. The associated value is dependent on the service used to access the resource.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ParameterKey">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The name or identfier which can be used to access the parameter in the resource. The associated value is dependent on the service used to access the resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:Units
Namespace http://www.spase-group.org/data/schema
Annotations
A description of the standardized measurement increments in which a value is specified. The description is represented as a mathematical phrase. Individual units within the phrase must conform to the International System of Units (SI) which is maintained by BIPM (Bureau International des Poids et Mesures. See <http://www.bipm.fr/> ). The symbol associated with a unit should be used in the phrase. Within the phrase the circumflex (^) is used to indicate a power, a star (*) is used to indicate multiplication and a slash (/) division. When symbols are not separated by a mathematical operator, multiplication is assumed. Symbols for base units can be found at: <http://www.bipm.fr/en/si/si_brochure/chapter2/2-1/#symbols> and those for common derived units can be found at: <http://www.bipm.fr/en/si/derived_units/2-2-2.html>
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Units">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A description of the standardized measurement increments in which a value is specified. The description is represented as a mathematical phrase. Individual units within the phrase must conform to the International System of Units (SI) which is maintained by BIPM (Bureau International des Poids et Mesures. See <http://www.bipm.fr/> ). The symbol associated with a unit should be used in the phrase. Within the phrase the circumflex (^) is used to indicate a power, a star (*) is used to indicate multiplication and a slash (/) division. When symbols are not separated by a mathematical operator, multiplication is assumed. Symbols for base units can be found at: <http://www.bipm.fr/en/si/si_brochure/chapter2/2-1/#symbols> and those for common derived units can be found at: <http://www.bipm.fr/en/si/derived_units/2-2-2.html></xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:UnitsConversion
Namespace http://www.spase-group.org/data/schema
Annotations
The multiplicative factor for converting a unit into International System of Units (SI) units. The factor is expressed in the form number > x, where number is a numerical value and x is the appropriate SI units. The basic SI units are Enumerated: m (meter), N (newton), kg (kilogram), Pa (pascal), s (second), Hz (hertz), A (ampere), V (volt), K (kelvin), W (watt), rad (radian), J (joule), sr (steradian), C (coulomb), T (tesla), ohm (ohm), mho (mho or seimens), H (henry), and F (farad). Two useful units which are not SI units are: degree (angle), and unitless (no units). An example is: 1.0E-5>T which converts the units, presumable nT, to tesla. Another example is: 1.0e-1>km/s which converts a velocity expressed in meters per second to kilometers per second.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="UnitsConversion">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The multiplicative factor for converting a unit into International System of Units (SI) units. The factor is expressed in the form number > x, where number is a numerical value and x is the appropriate SI units. The basic SI units are Enumerated: m (meter), N (newton), kg (kilogram), Pa (pascal), s (second), Hz (hertz), A (ampere), V (volt), K (kelvin), W (watt), rad (radian), J (joule), sr (steradian), C (coulomb), T (tesla), ohm (ohm), mho (mho or seimens), H (henry), and F (farad). Two useful units which are not SI units are: degree (angle), and unitless (no units). An example is: 1.0E-5>T which converts the units, presumable nT, to tesla. Another example is: 1.0e-1>km/s which converts a velocity expressed in meters per second to kilometers per second.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:CoordinateSystem
Namespace http://www.spase-group.org/data/schema
Annotations
Specification of the origin and orientation of axes against which the location of some point is given and the representative form of each point.
Diagram
Diagram spase-1_1_0_xsd.tmp#CoordinateSystem_CoordinateRepresentation spase-1_1_0_xsd.tmp#CoordinateSystem_CoordinateSystemName
Used by
Model
Children spase:CoordinateRepresentation, spase:CoordinateSystemName
Source
<xsd:complexType name="CoordinateSystem">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Specification of the origin and orientation of axes against which the location of some point is given and the representative form of each point.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="CoordinateRepresentation" type="spase:CoordinateRepresentation" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="CoordinateSystemName" type="spase:CoordinateSystemName" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:CoordinateRepresentation
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers the represenational form for coordinate system.ation has been expressed.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Cartesian
A coordinate system in which the position of a point is determined by its distance from two or three mutually perpendicular axes.
enumeration Cylindrical
A system of curvilinear coordinates in which the position of a point in space is determined by its perpendicular distance from a given line, its distance from a selected reference plane perpendicular to this line, and its angular distance from a selected reference line when projected onto this plane.
enumeration Spherical
A system of curvilinear coordinates characterized by an azimuthal angle (longitude),  a polar angle (latitude), and a distance (radius) from a point to the origin.
Used by
Source
<xsd:simpleType name="CoordinateRepresentation">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers the represenational form for coordinate system.ation has been expressed.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Cartesian">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A coordinate system in which the position of a point is determined by its distance from two or three mutually perpendicular axes.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Cylindrical">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A system of curvilinear coordinates in which the position of a point in space is determined by its perpendicular distance from a given line, its distance from a selected reference plane perpendicular to this line, and its angular distance from a selected reference line when projected onto this plane.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Spherical">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A system of curvilinear coordinates characterized by an azimuthal angle (longitude), a polar angle (latitude), and a distance (radius) from a point to the origin.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:CoordinateSystemName
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for coordinate systems in which the position, direction or observation has been expressed.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration CGM
Corrected Geomagnetic - A coordinate system from a spatial point with GEO radial distance and geomagnetic latitude and longitude, follow the epoch-appropriate IGRF/DGRF model field vector through to the point where the field line crosses the geomagnetic dipole equatorial plane. Then trace the dipole magnetic field vector Earthward from that point on the equatorial plane, in the same hemisphere as the original point, until the initial radial distance is reached. Designate the dipole latitude and longitude at that point as the CGM latitude and longitude of the original point. See <http://nssdc.gsfc.nasa.gov/space/cgm/cgmm_des.html>
enumeration DM
Dipole Meridian - A coordinate system centered at the observation point. Z axis is parallel to the Earths dipole axis, positive northward. X is in the plane defined by Z and the line linking the observation point with the Earths center. Y is positive eastward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration GEI
Geocentric Equatorial Inertial - A coordinate system where the Z axis is along Earths spin vector, positive northward. X axis points towards the first point of Aries (from the Earth towards the Sun at the vernal equinox). See Russell, 1971
enumeration GEO
Geographic - geocentric corotating - A coordinate system where the Z axis is along Earths spin vector, positive northward. X axis lies in Greenwich meridian, positive towards Greenwich. See Russell, 1971.
enumeration GSE
Geocentric Solar Ecliptic - A coordinate system where the X axis is from Earth to Sun. Z axis is normal to the ecliptic, positive northward. See Russell, 1971.
enumeration GSEQ
Geocentric Solar Equatorial - A coordinate system where the X axis is from Earth to Sun. Y axis is parallel to solar equatorial plane. Z axis is positive northward. See Russell, 1971
enumeration GSM
Geocentric Solar Magnetospheric - A coordinate system where the X axis is from Earth to Sun, Z axis is northward in a plane containing the X axis and the geomagnetic dipole axis. See Russell, 1971
enumeration HAE
Heliocentric Aries Ecliptic - A coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis is positive towards the first point of Aries (from Earth to Sun at vernal equinox). Same as SE below. See Hapgood, 1992.
enumeration HEE
Heliocentric Earth Ecliptic - A coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis points from Sun to Earth. See Hapgood, 1992
enumeration HEEQ
Heliocentric Earth Equatorial - A coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X axis is generally Earthward in the plane defined by the Z axis and the Sun-Earth direction. See Hapgood, 1992.
enumeration HG
Heliographic - A heliocentric rotating coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X, Y axes rotate with a 25.38 day period. The zero longitude (X axis) is defined as the longitude that passed through the ascending node of the solar equator on the ecliptic plane on 1 January, 1854 at 12 UT. See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration HGI
Heliographic Inertial - A heliocentric coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X axis is along the intersection line between solar equatorial and ecliptic planes. The X axis was positive at SE longitude of 74.367 deg on Jan 1, 1900. (See SE below.) See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration J2000
An astronomical coordinate system which uses the mean equator and equinox of Julian date 2451545.0 TT (Terrestrial Time), or January 1, 2000, noon TT. (aka J2000) to define a celestial reference frame.
enumeration LGM
Local Geomagnetic - A coordinate system used mainly for Earth surface or near Earth surface magnetic field data. X axis northward from observation point in a geographic meridian. Z axis downward towards Earths center. In this system, H (total horizontal component) = SQRT (Bx**2 + By**2) and D (declination angle) = arctan (By/Bx)
enumeration MAG
Geomagnetic - geocentric. Z axis is parallel to the geomagnetic dipole axis, positive north. X is in the plane defined by the Z axis and the Earths rotation axis. If N is a unit vector from the Earths center to the north geographic pole, the signs of the X and Y axes are given by Y = N x Z, X = Y x Z.. See Russell, 1971, and <http://cdpp.cnes.fr/00428.pdf>
enumeration MFA
Magnetic Field Aligned - A coordinate system spacecraft-centered system with Z in the direction of the ambient magnetic field vector. X is in the plane defined by Z and the spacecraft-Sun line, positive sunward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration RTN
Radial Tangential Normal. Typically centered at a spacecraft. Used for IMF and plasma V vectors. R (radial) axis is radially away from the Sun, T (tangential) axis is normal to the plane formed by R and the Suns spin vector, positive in the direction of planetary motion. N (normal) is R x T.
enumeration SC
Spacecraft - A coordinate system defined by the spacecraft geometry and/or spin. Often has Z axis parallel to spacecraft spin vector. X and Y axes may or may not corotate with the spacecraft. See SR and SR2 below.
enumeration SE
Solar Ecliptic - A heliocentric coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis is positive towards the first point of Aries (from Earth to Sun at vernal equinox). Same as HAE above. See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html>
enumeration SM
Solar Magnetic - A geocentric coordinate system where the Z axis is northward along Earths dipole axis, X axis is in plane of z axis and Earth-Sun line, positive sunward. See Russell, 1971.
enumeration SR
Spin Reference - A special case of a Spacecraft (SC) coordinate system for a spinning spacecraft. Z is parallel to the spacecraft spin vector. X and Y rotate with the spacecraft. See <http://cdpp.cnes.fr/00428.pdf>
enumeration SR2
Spin Reference 2 - A special case of a Spacecraft (SC) coordinate system for a spinning spacecraft. Z is parallel to the spacecraft spin vector. X is in the plane defined by Z and the spacecraft-Sun line, positive sunward. See <http://cdpp.cnes.fr/00428.pdf>
enumeration SSE
Spacecraft Solar Ecliptic - A coordinate system used for deep space spacecraft, for example Helios. - X axis from spacecraft to Sun. Z axis normal to ecliptic plane, positive northward. Note: Angle between normals to ecliptic and to Helios orbit plane ~ 0.25 deg.
Used by
Source
<xsd:simpleType name="CoordinateSystemName">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for coordinate systems in which the position, direction or observation has been expressed.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="CGM">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Corrected Geomagnetic - A coordinate system from a spatial point with GEO radial distance and geomagnetic latitude and longitude, follow the epoch-appropriate IGRF/DGRF model field vector through to the point where the field line crosses the geomagnetic dipole equatorial plane. Then trace the dipole magnetic field vector Earthward from that point on the equatorial plane, in the same hemisphere as the original point, until the initial radial distance is reached. Designate the dipole latitude and longitude at that point as the CGM latitude and longitude of the original point. See <http://nssdc.gsfc.nasa.gov/space/cgm/cgmm_des.html></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="DM">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Dipole Meridian - A coordinate system centered at the observation point. Z axis is parallel to the Earth&#39;s dipole axis, positive northward. X is in the plane defined by Z and the line linking the observation point with the Earth&#39;s center. Y is positive eastward. See <http://cdpp.cnes.fr/00428.pdf></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GEI">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Geocentric Equatorial Inertial - A coordinate system where the Z axis is along Earth&#39;s spin vector, positive northward. X axis points towards the first point of Aries (from the Earth towards the Sun at the vernal equinox). See Russell, 1971</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GEO">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Geographic - geocentric corotating - A coordinate system where the Z axis is along Earth&#39;s spin vector, positive northward. X axis lies in Greenwich meridian, positive towards Greenwich. See Russell, 1971.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GSE">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Geocentric Solar Ecliptic - A coordinate system where the X axis is from Earth to Sun. Z axis is normal to the ecliptic, positive northward. See Russell, 1971.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GSEQ">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Geocentric Solar Equatorial - A coordinate system where the X axis is from Earth to Sun. Y axis is parallel to solar equatorial plane. Z axis is positive northward. See Russell, 1971</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="GSM">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Geocentric Solar Magnetospheric - A coordinate system where the X axis is from Earth to Sun, Z axis is northward in a plane containing the X axis and the geomagnetic dipole axis. See Russell, 1971</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HAE">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Heliocentric Aries Ecliptic - A coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis is positive towards the first point of Aries (from Earth to Sun at vernal equinox). Same as SE below. See Hapgood, 1992.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HEE">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Heliocentric Earth Ecliptic - A coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis points from Sun to Earth. See Hapgood, 1992</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HEEQ">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Heliocentric Earth Equatorial - A coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X axis is generally Earthward in the plane defined by the Z axis and the Sun-Earth direction. See Hapgood, 1992.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HG">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Heliographic - A heliocentric rotating coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X, Y axes rotate with a 25.38 day period. The zero longitude (X axis) is defined as the longitude that passed through the ascending node of the solar equator on the ecliptic plane on 1 January, 1854 at 12 UT. See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HGI">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Heliographic Inertial - A heliocentric coordinate system where the Z axis is normal to the solar equatorial plane, positive northward. X axis is along the intersection line between solar equatorial and ecliptic planes. The X axis was positive at SE longitude of 74.367 deg on Jan 1, 1900. (See SE below.) See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="J2000">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An astronomical coordinate system which uses the mean equator and equinox of Julian date 2451545.0 TT (Terrestrial Time), or January 1, 2000, noon TT. (aka J2000) to define a celestial reference frame.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="LGM">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Local Geomagnetic - A coordinate system used mainly for Earth surface or near Earth surface magnetic field data. X axis northward from observation point in a geographic meridian. Z axis downward towards Earth&#39;s center. In this system, H (total horizontal component) = SQRT (Bx**2 + By**2) and D (declination angle) = arctan (By/Bx)</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MAG">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Geomagnetic - geocentric. Z axis is parallel to the geomagnetic dipole axis, positive north. X is in the plane defined by the Z axis and the Earth&#39;s rotation axis. If N is a unit vector from the Earth&#39;s center to the north geographic pole, the signs of the X and Y axes are given by Y = N x Z, X = Y x Z.. See Russell, 1971, and <http://cdpp.cnes.fr/00428.pdf></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MFA">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Magnetic Field Aligned - A coordinate system spacecraft-centered system with Z in the direction of the ambient magnetic field vector. X is in the plane defined by Z and the spacecraft-Sun line, positive sunward. See <http://cdpp.cnes.fr/00428.pdf></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="RTN">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Radial Tangential Normal. Typically centered at a spacecraft. Used for IMF and plasma V vectors. R (radial) axis is radially away from the Sun, T (tangential) axis is normal to the plane formed by R and the Sun&#39;s spin vector, positive in the direction of planetary motion. N (normal) is R x T.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SC">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Spacecraft - A coordinate system defined by the spacecraft geometry and/or spin. Often has Z axis parallel to spacecraft spin vector. X and Y axes may or may not corotate with the spacecraft. See SR and SR2 below.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SE">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Solar Ecliptic - A heliocentric coordinate system where the Z axis is normal to the ecliptic plane, positive northward. X axis is positive towards the first point of Aries (from Earth to Sun at vernal equinox). Same as HAE above. See <http://nssdc.gsfc.nasa.gov/space/helios/coor_des.html></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SM">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Solar Magnetic - A geocentric coordinate system where the Z axis is northward along Earth&#39;s dipole axis, X axis is in plane of z axis and Earth-Sun line, positive sunward. See Russell, 1971.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SR">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Spin Reference - A special case of a Spacecraft (SC) coordinate system for a spinning spacecraft. Z is parallel to the spacecraft spin vector. X and Y rotate with the spacecraft. See <http://cdpp.cnes.fr/00428.pdf></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SR2">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Spin Reference 2 - A special case of a Spacecraft (SC) coordinate system for a spinning spacecraft. Z is parallel to the spacecraft spin vector. X is in the plane defined by Z and the spacecraft-Sun line, positive sunward. See <http://cdpp.cnes.fr/00428.pdf></xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SSE">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Spacecraft Solar Ecliptic - A coordinate system used for deep space spacecraft, for example Helios. - X axis from spacecraft to Sun. Z axis normal to ecliptic plane, positive northward. Note: Angle between normals to ecliptic and to Helios orbit plane ~ 0.25 deg.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:Dimension
Namespace http://www.spase-group.org/data/schema
Annotations
Attributes of an independent variable or axis associated with the data.
Diagram
Diagram spase-1_1_0_xsd.tmp#Dimension_Size spase-1_1_0_xsd.tmp#Dimension_Description
Used by
Model
Children spase:Description, spase:Size
Source
<xsd:complexType name="Dimension">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Attributes of an independent variable or axis associated with the data.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Size" type="spase:Size" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Description" type="spase:Description" minOccurs="1" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Size
Namespace http://www.spase-group.org/data/schema
Annotations
The physical dimensions, proportions, magnitude, or extent of an object..
Diagram
Diagram
Type xsd:integer
Used by
Source
<xsd:simpleType name="Size">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The physical dimensions, proportions, magnitude, or extent of an object..</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:integer"/>
</xsd:simpleType>
Complex Type spase:Measured
Namespace http://www.spase-group.org/data/schema
Annotations
Attributes of observations obtained from an instrument or sensor.
Diagram
Diagram spase-1_1_0_xsd.tmp#Measured_Field spase-1_1_0_xsd.tmp#Measured_Particle spase-1_1_0_xsd.tmp#Measured_Photon spase-1_1_0_xsd.tmp#Measured_Mixed
Used by
Model
Children spase:Field, spase:Mixed, spase:Particle, spase:Photon
Source
<xsd:complexType name="Measured">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Attributes of observations obtained from an instrument or sensor.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Field" type="spase:Field" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Particle" type="spase:Particle" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Photon" type="spase:Photon" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Mixed" type="spase:Mixed" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type spase:Field
Namespace http://www.spase-group.org/data/schema
Annotations
The space around a radiating body within which its electromagnetic attributes can exert force on another similar body that is not in direct contact.
Diagram
Diagram spase-1_1_0_xsd.tmp#Field_Orientation spase-1_1_0_xsd.tmp#Field_FieldQualifier spase-1_1_0_xsd.tmp#Field_FieldQuantity
Used by
Model
Children spase:FieldQualifier, spase:FieldQuantity, spase:Orientation
Source
<xsd:complexType name="Field">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The space around a radiating body within which its electromagnetic attributes can exert force on another similar body that is not in direct contact.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Orientation" type="spase:Orientation" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="FieldQualifier" type="spase:FieldQualifier" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="FieldQuantity" type="spase:FieldQuantity" minOccurs="1" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Orientation
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the axis of coordinate systems.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration H
TheHierarchical Data Format
enumeration Phi
The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.
enumeration R
The component of a vector along in the radial direction in a spherical system.
enumeration Theta
The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.
enumeration X
The component of a vector along the X-axis in a cartessian coordinate system.
enumeration Y
The component of a vector along the Y-axis in a cartessian coordinate system.
enumeration Z
The component of a vector along the Z-axis in a cartessian coordinate system.
Used by
Source
<xsd:simpleType name="Orientation">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the axis of coordinate systems.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="H">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">TheHierarchical Data Format</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Phi">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="R">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along in the radial direction in a spherical system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Theta">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="X">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the X-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Y">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the Y-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Z">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the Z-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:FieldQualifier
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for terms which can be associated with a Field Quantity.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Component
A part of a multi-part entity, e.g., the components of a vector.
enumeration Component.H
TheHierarchical Data Format
enumeration Component.Phi
The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.
enumeration Component.R
The component of a vector along in the radial direction in a spherical system.
enumeration Component.Theta
The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.
enumeration Component.X
The component of a vector along the X-axis in a cartessian coordinate system.
enumeration Component.Y
The component of a vector along the Y-axis in a cartessian coordinate system.
enumeration Component.Z
The component of a vector along the Z-axis in a cartessian coordinate system.
enumeration Deviation
The difference between an observed value and the expected value of a quantity.
enumeration Magnitude
A measure of the strength or size of a vector quantity.
enumeration Peak
The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.
enumeration Perpendicular
At right angles to a given direction.
enumeration Variance
A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.
enumeration Vector
A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.
Used by
Source
<xsd:simpleType name="FieldQualifier">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for terms which can be associated with a Field Quantity.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Average">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The statistical mean; the sum of a set of values divided by the number of values in the set.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A part of a multi-part entity, e.g., the components of a vector.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.H">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">TheHierarchical Data Format</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.Phi">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.R">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along in the radial direction in a spherical system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.Theta">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.X">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the X-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.Y">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the Y-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.Z">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the Z-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Deviation">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The difference between an observed value and the expected value of a quantity.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnitude">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A measure of the strength or size of a vector quantity.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Peak">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Perpendicular">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">At right angles to a given direction.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Variance">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Vector">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:FieldQuantity
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the physical attribute of the field.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration CrossSpectrum
The Fourier transform of the cross correlation of two physical or empirical observations.
enumeration Electric
The physical attribute that exerts an electrical force.
enumeration Magnetic
The physical attribute attributed to a magnet or its equivalent.
enumeration Potential
A field which obeys Laplaces Equation.
enumeration PoyntingFlux
The rate of energy transport per unit area per steradian.
Used by
Source
<xsd:simpleType name="FieldQuantity">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the physical attribute of the field.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="CrossSpectrum">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The Fourier transform of the cross correlation of two physical or empirical observations.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Electric">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical attribute that exerts an electrical force.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnetic">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The physical attribute attributed to a magnet or its equivalent.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Potential">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A field which obeys Laplace&#39;s Equation.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="PoyntingFlux">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The rate of energy transport per unit area per steradian.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:Particle
Namespace http://www.spase-group.org/data/schema
Annotations
A description of the types of particles observed in the measurement. This includes both direct observations and inferred observations.
Diagram
Diagram spase-1_1_0_xsd.tmp#Particle_ParticleType spase-1_1_0_xsd.tmp#Particle_ParticleQualifier spase-1_1_0_xsd.tmp#Particle_ParticleQuantity spase-1_1_0_xsd.tmp#Particle_AtomicNumber spase-1_1_0_xsd.tmp#Particle_EnergyRange spase-1_1_0_xsd.tmp#Particle_AzimuthalAngleRange spase-1_1_0_xsd.tmp#Particle_PolarAngleRange
Used by
Model
Children spase:AtomicNumber, spase:AzimuthalAngleRange, spase:EnergyRange, spase:ParticleQualifier, spase:ParticleQuantity, spase:ParticleType, spase:PolarAngleRange
Source
<xsd:complexType name="Particle">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A description of the types of particles observed in the measurement. This includes both direct observations and inferred observations.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ParticleType" type="spase:ParticleType" minOccurs="1" maxOccurs="unbounded"/>
    <xsd:element name="ParticleQualifier" type="spase:ParticleQualifier" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="ParticleQuantity" type="spase:ParticleQuantity" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="AtomicNumber" type="spase:AtomicNumber" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="EnergyRange" type="spase:EnergyRange" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="AzimuthalAngleRange" type="spase:AzimuthalAngleRange" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="PolarAngleRange" type="spase:PolarAngleRange" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:ParticleType
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the characterization of the kind of particle observed by the measurement.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Aerosol
A suspension of fine solid or liquid particles in gas.
enumeration AlphaParticle
A positively charged nuclear particle that consists of two protons and two neutrons.
enumeration Dust
Free microscopic particles of solid material.
enumeration Electron
An elementary particle consisting of a charge of negative electricity equal to about 1.602 x 10**(-19) Coulomb and having a mass when at rest of about 9.109534 x 10**(-28) gram.
enumeration Ion
An atom that has acquired a net electric charge by gaining or losing one or more electrons.(Note: Z>2)
enumeration Molecule
A group of atoms so united and combined by chemical affinity that they form a complete, integrated whole, being the smallest portion of any particular compound that can exist in a free state
enumeration Neutral
Either a particle, an object, or a system that has a net electric charge of zero
enumeration Proton
An elementary particle that is a constituent of all atomic nuclei, that carries a positive charge numerically equal to the charge of an electron, and that has a mass of 1.673 x 10**(-24) gram.
Used by
Source
<xsd:simpleType name="ParticleType">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the characterization of the kind of particle observed by the measurement.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Aerosol">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A suspension of fine solid or liquid particles in gas.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="AlphaParticle">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A positively charged nuclear particle that consists of two protons and two neutrons.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Dust">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Free microscopic particles of solid material.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Electron">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An elementary particle consisting of a charge of negative electricity equal to about 1.602 x 10**(-19) Coulomb and having a mass when at rest of about 9.109534 x 10**(-28) gram.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Ion">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An atom that has acquired a net electric charge by gaining or losing one or more electrons.(Note: Z>2)</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Molecule">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A group of atoms so united and combined by chemical affinity that they form a complete, integrated whole, being the smallest portion of any particular compound that can exist in a free state</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Neutral">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Either a particle, an object, or a system that has a net electric charge of zero</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Proton">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An elementary particle that is a constituent of all atomic nuclei, that carries a positive charge numerically equal to the charge of an electron, and that has a mass of 1.673 x 10**(-24) gram.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:ParticleQualifier
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for terms which can be associated with a Particle Quantity.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Component
A part of a multi-part entity, e.g., the components of a vector.
enumeration Component.H
TheHierarchical Data Format
enumeration Component.Phi
The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.
enumeration Component.R
The component of a vector along in the radial direction in a spherical system.
enumeration Component.Theta
The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.
enumeration Component.X
The component of a vector along the X-axis in a cartessian coordinate system.
enumeration Component.Y
The component of a vector along the Y-axis in a cartessian coordinate system.
enumeration Component.Z
The component of a vector along the Z-axis in a cartessian coordinate system.
enumeration Deviation
The difference between an observed value and the expected value of a quantity.
enumeration Differential
The ratio of the intensity of radiant energy scattered in a given direction to the incident irradiance and thus has dimensions of area per unit solid angle.
enumeration Fit
Values that make an model agree with the data.
enumeration Integral
The summation of values over a given area or range.
enumeration Magnitude
A measure of the strength or size of a vector quantity.
enumeration Moment
Parameters determined by integration over a distribution function convolved with a power of velocity.
enumeration Parallel
Having the same direction as a given direction
enumeration Peak
The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.
enumeration Perpendicular
At right angles to a given direction.
enumeration Ratio
The relative magnitudes of two quantities.
enumeration Variance
A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.
enumeration Vector
A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.
Used by
Source
<xsd:simpleType name="ParticleQualifier">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for terms which can be associated with a Particle Quantity.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Average">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The statistical mean; the sum of a set of values divided by the number of values in the set.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A part of a multi-part entity, e.g., the components of a vector.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.H">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">TheHierarchical Data Format</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.Phi">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector in a sperical coordinate system in the direction of the angle between the x-axis and the line from the origin to the measured point.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.R">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along in the radial direction in a spherical system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.Theta">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector in a sperical coordinate system in the direction of the angle between the z-axis and the line from the origin to the measured point. In a cylindical coordinate system it is the angle between the x-axis and the line from the origin to the point.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.X">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the X-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.Y">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the Y-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Component.Z">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The component of a vector along the Z-axis in a cartessian coordinate system.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Deviation">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The difference between an observed value and the expected value of a quantity.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Differential">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The ratio of the intensity of radiant energy scattered in a given direction to the incident irradiance and thus has dimensions of area per unit solid angle.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Fit">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Values that make an model agree with the data.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Integral">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The summation of values over a given area or range.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnitude">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A measure of the strength or size of a vector quantity.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Moment">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Parameters determined by integration over a distribution function convolved with a power of velocity.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Parallel">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Having the same direction as a given direction</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Peak">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Perpendicular">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">At right angles to a given direction.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Ratio">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The relative magnitudes of two quantities.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Variance">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Vector">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:ParticleQuantity
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the characterization of the physical properties of the particle.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration AlfvenMachNumber
The ratio of the bulk flow speed to the Alfven speed.
enumeration AverageChargeState
A measure of the composite deficit (positive) or excess (negative) of electrons with respect to protons.
enumeration Counts
An enumeration of the number of detection events occurring in a particle detector per unit time or over detector accumulation times.
enumeration Flux
In radiation studies, this refers to the amount of radiant energy passing through a unit area
enumeration HeatFlux
Flow of thermal energy through a gas or plasma; typically computed as third moment of a distribution function.
enumeration Mass
The measure of inertia (mass) of individual objects (e.g., aerosols).
enumeration MassDensity
The mass of particles per unit volume.
enumeration NumberDensity
The number of particles per unit volume.
enumeration PhaseSpaceDensity
The number of particles per unit volume in the six-dimensional space of position and velocity.
enumeration PlasmaBeta
The ratio of the plasma pressure to the magnetic pressure.
enumeration Pressure
The force per unit area exerted by a particle distribution or field.
enumeration SonicMachNumber
The ratio of the bulk flow speed to the speed of sound in the medium.
enumeration Temperature
A measure of the kinetic energy of random motion with respect to the average. Temperature is properly defined only for an equilibrium particle distribution (Maxwellian distribution).
enumeration ThermalSpeed
For a Maxwellian distribution, the difference between the mean speed and the speed within which ~69% (one sigma) of all the members of the speed distribution occur.
enumeration Velocity
Rate of change of position. Also used for the average velocity of a collection of particles, also referred to as bulk velocity.
Used by
Source
<xsd:simpleType name="ParticleQuantity">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the characterization of the physical properties of the particle.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="AlfvenMachNumber">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The ratio of the bulk flow speed to the Alfven speed.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="AverageChargeState">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A measure of the composite deficit (positive) or excess (negative) of electrons with respect to protons.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Counts">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An enumeration of the number of detection events occurring in a particle detector per unit time or over detector accumulation times.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Flux">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">In radiation studies, this refers to the amount of radiant energy passing through a unit area</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="HeatFlux">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Flow of thermal energy through a gas or plasma; typically computed as third moment of a distribution function.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Mass">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The measure of inertia (mass) of individual objects (e.g., aerosols).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MassDensity">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The mass of particles per unit volume.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NumberDensity">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The number of particles per unit volume.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="PhaseSpaceDensity">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The number of particles per unit volume in the six-dimensional space of position and velocity.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="PlasmaBeta">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The ratio of the plasma pressure to the magnetic pressure.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Pressure">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The force per unit area exerted by a particle distribution or field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SonicMachNumber">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The ratio of the bulk flow speed to the speed of sound in the medium.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Temperature">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A measure of the kinetic energy of random motion with respect to the average. Temperature is properly defined only for an equilibrium particle distribution (Maxwellian distribution).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ThermalSpeed">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">For a Maxwellian distribution, the difference between the mean speed and the speed within which ~69% (one sigma) of all the members of the speed distribution occur.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Velocity">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Rate of change of position. Also used for the average velocity of a collection of particles, also referred to as bulk velocity.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:AtomicNumber
Namespace http://www.spase-group.org/data/schema
Annotations
The the number of protons in the nucleus of an atom.
Diagram
Diagram
Type xsd:double
Used by
Source
<xsd:simpleType name="AtomicNumber">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The the number of protons in the nucleus of an atom.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:double"/>
</xsd:simpleType>
Complex Type spase:EnergyRange
Namespace http://www.spase-group.org/data/schema
Annotations
The minimum and maximum energy values of the particles represented by a given physical parameter description.
Diagram
Diagram spase-1_1_0_xsd.tmp#EnergyRange_Low spase-1_1_0_xsd.tmp#EnergyRange_High spase-1_1_0_xsd.tmp#EnergyRange_Units spase-1_1_0_xsd.tmp#EnergyRange_Bin
Used by
Model
Children spase:Bin, spase:High, spase:Low, spase:Units
Source
<xsd:complexType name="EnergyRange">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The minimum and maximum energy values of the particles represented by a given physical parameter description.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="High" type="spase:High" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Units" type="spase:Units" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Low
Namespace http://www.spase-group.org/data/schema
Annotations
The smallest value within a range of possible values.
Diagram
Diagram
Type xsd:double
Used by
Source
<xsd:simpleType name="Low">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The smallest value within a range of possible values.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:double"/>
</xsd:simpleType>
Simple Type spase:High
Namespace http://www.spase-group.org/data/schema
Annotations
The largest value within a range of possible values.
Diagram
Diagram
Type xsd:double
Used by
Source
<xsd:simpleType name="High">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The largest value within a range of possible values.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:double"/>
</xsd:simpleType>
Complex Type spase:Bin
Namespace http://www.spase-group.org/data/schema
Annotations
A grouping of observations according to a band or window of a common attribute.
Diagram
Diagram spase-1_1_0_xsd.tmp#Bin_Low spase-1_1_0_xsd.tmp#Bin_High
Used by
Model
Children spase:High, spase:Low
Source
<xsd:complexType name="Bin">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A grouping of observations according to a band or window of a common attribute.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="High" type="spase:High" minOccurs="1" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type spase:AzimuthalAngleRange
Namespace http://www.spase-group.org/data/schema
Annotations
The range of possible azimuthal angles for a group of energy observations.  Default units are degrees.
Diagram
Diagram spase-1_1_0_xsd.tmp#AzimuthalAngleRange_Low spase-1_1_0_xsd.tmp#AzimuthalAngleRange_High spase-1_1_0_xsd.tmp#AzimuthalAngleRange_Units spase-1_1_0_xsd.tmp#AzimuthalAngleRange_Bin
Used by
Model
Children spase:Bin, spase:High, spase:Low, spase:Units
Source
<xsd:complexType name="AzimuthalAngleRange">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The range of possible azimuthal angles for a group of energy observations. Default units are degrees.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="High" type="spase:High" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type spase:PolarAngleRange
Namespace http://www.spase-group.org/data/schema
Annotations
The range of possible polar angles for a group of energy observations. Defaults units are degrees.
Diagram
Diagram spase-1_1_0_xsd.tmp#PolarAngleRange_Low spase-1_1_0_xsd.tmp#PolarAngleRange_High spase-1_1_0_xsd.tmp#PolarAngleRange_Units spase-1_1_0_xsd.tmp#PolarAngleRange_Bin
Used by
Model
Children spase:Bin, spase:High, spase:Low, spase:Units
Source
<xsd:complexType name="PolarAngleRange">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The range of possible polar angles for a group of energy observations. Defaults units are degrees.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="High" type="spase:High" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Units" type="spase:Units" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type spase:Photon
Namespace http://www.spase-group.org/data/schema
Annotations
Photon (radio through gamma-rays): the fundamental particle or quantum of electromagnetic radiation (radiant energy)
Diagram
Diagram spase-1_1_0_xsd.tmp#Photon_PhotonQualifier spase-1_1_0_xsd.tmp#Photon_PhotonQuantity spase-1_1_0_xsd.tmp#Photon_FrequencyRange
Used by
Model
Children spase:FrequencyRange, spase:PhotonQualifier, spase:PhotonQuantity
Source
<xsd:complexType name="Photon">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Photon (radio through gamma-rays): the fundamental particle or quantum of electromagnetic radiation (radiant energy)</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="PhotonQualifier" type="spase:PhotonQualifier" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="PhotonQuantity" type="spase:PhotonQuantity" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="FrequencyRange" type="spase:FrequencyRange" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:PhotonQualifier
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for terms which can be associated with a Photon Quantity.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Average
The statistical mean; the sum of a set of values divided by the number of values in the set.
enumeration Circular
Relative to polarization, right-hand circularly polarized light is defined such that the electric field is rotating clockwise as seen by an observer towards whom the wave is moving. Left-hand circularly polarized light is defined such that the electric field is rotating counterclockwise as seen by an observer towards whom the wave is moving. The polarization of magnetohydrodynamic waves is specified with respect to the ambient mean magnetic field : right-hand polarized waves have a transverse electric field component which turns in a right-handed sense (that of the gyrating electrons) around the magnetic field.
enumeration LineofSight
The line of sight is the line that connects the observer with the observed object. This expression is often used with measurements of Doppler velocity and magnetic field in magnetograms, where only the component of the vector field directed along the line of sight is measured.
enumeration Linear
Relative to polarization, confinement of the E-field vector to a given plane
enumeration Peak
The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.
enumeration StokesParameters
The four coordinates (usually called I, Q, U, and V) relative to a particular basis for the representation of the polarization state of an electromagnetic wave propagating through space.
enumeration Variance
A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.
enumeration Vector
A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.
Used by
Source
<xsd:simpleType name="PhotonQualifier">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for terms which can be associated with a Photon Quantity.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Average">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The statistical mean; the sum of a set of values divided by the number of values in the set.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Circular">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Relative to polarization, right-hand circularly polarized light is defined such that the electric field is rotating clockwise as seen by an observer towards whom the wave is moving. Left-hand circularly polarized light is defined such that the electric field is rotating counterclockwise as seen by an observer towards whom the wave is moving. The polarization of magnetohydrodynamic waves is specified with respect to the ambient mean magnetic field : right-hand polarized waves have a transverse electric field component which turns in a right-handed sense (that of the gyrating electrons) around the magnetic field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="LineofSight">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The line of sight is the line that connects the observer with the observed object. This expression is often used with measurements of Doppler velocity and magnetic field in magnetograms, where only the component of the vector field directed along the line of sight is measured.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Linear">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Relative to polarization, confinement of the E-field vector to a given plane</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Peak">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The maximum value for the quantity in question, over a period of time which is usually equal to the cadence.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="StokesParameters">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The four coordinates (usually called I, Q, U, and V) relative to a particular basis for the representation of the polarization state of an electromagnetic wave propagating through space.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Variance">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A measure of dispersion of a set of data points around their mean value. The expectation value of the squared deviations from the mean.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Vector">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A quantity having both magnitude and direction, e.g. displacement, velocity, acceleration and force.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:PhotonQuantity
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the characterization of the physical properties of the photon.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Emissivity
The ratio of radiant energy from a material to that from a blackbody at the same kinetic temperature
enumeration EquivalentWidth
The area of the spectral line profile divided by the peak height or depth.
enumeration Flux
In radiation studies, this refers to the amount of radiant energy passing through a unit area
enumeration Intensity
The amount of energy transmitted by electromagnetic radiation, for example, the number of photons arriving in a given time.
enumeration LineDepth
In spectra, a measure of the amount of absorption for a particular wavelength or frequency in the spectrum
enumeration MagneticField
Measurements of magnetic field vectors (sometimes not all components) as time series; can be space- or ground-based. Also, [Zeeman splitting, etc. based]: A region of space near a magnetized body where magnetic forces can be detected [as measured by methods such as Zeeman splitting, etc.]
enumeration ModeAmplitude
In helioseismology the magnitude of oscillation of waves of a particular geometry.
enumeration Polarization
Direction of the electric vector of an electromagnetic wave. The wave can be linearly polarized in any direction perpendicular to the direction of travel, circularly polarized (clockwise or counterclockwise), unpolarized, or mixtures of the above.
enumeration StokesParameters
The four coordinates (usually called I, Q, U, and V) relative to a particular basis for the representation of the polarization state of an electromagnetic wave propagating through space.
enumeration Velocity
Rate of change of position. Also used for the average velocity of a collection of particles, also referred to as bulk velocity.
Used by
Source
<xsd:simpleType name="PhotonQuantity">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the characterization of the physical properties of the photon.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Emissivity">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The ratio of radiant energy from a material to that from a blackbody at the same kinetic temperature</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="EquivalentWidth">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The area of the spectral line profile divided by the peak height or depth.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Flux">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">In radiation studies, this refers to the amount of radiant energy passing through a unit area</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Intensity">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The amount of energy transmitted by electromagnetic radiation, for example, the number of photons arriving in a given time.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="LineDepth">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">In spectra, a measure of the amount of absorption for a particular wavelength or frequency in the spectrum</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MagneticField">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Measurements of magnetic field vectors (sometimes not all components) as time series; can be space- or ground-based. Also, [Zeeman splitting, etc. based]: A region of space near a magnetized body where magnetic forces can be detected [as measured by methods such as Zeeman splitting, etc.]</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ModeAmplitude">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">In helioseismology the magnitude of oscillation of waves of a particular geometry.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Polarization">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Direction of the electric vector of an electromagnetic wave. The wave can be linearly polarized in any direction perpendicular to the direction of travel, circularly polarized (clockwise or counterclockwise), unpolarized, or mixtures of the above.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="StokesParameters">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The four coordinates (usually called I, Q, U, and V) relative to a particular basis for the representation of the polarization state of an electromagnetic wave propagating through space.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Velocity">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Rate of change of position. Also used for the average velocity of a collection of particles, also referred to as bulk velocity.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Complex Type spase:FrequencyRange
Namespace http://www.spase-group.org/data/schema
Annotations
The range of possible values for the observed frequency.
Diagram
Diagram spase-1_1_0_xsd.tmp#FrequencyRange_Low spase-1_1_0_xsd.tmp#FrequencyRange_High spase-1_1_0_xsd.tmp#FrequencyRange_Units spase-1_1_0_xsd.tmp#FrequencyRange_Bin
Used by
Model
Children spase:Bin, spase:High, spase:Low, spase:Units
Source
<xsd:complexType name="FrequencyRange">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The range of possible values for the observed frequency.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Low" type="spase:Low" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="High" type="spase:High" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Units" type="spase:Units" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Bin" type="spase:Bin" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Mixed
Namespace http://www.spase-group.org/data/schema
Annotations
A measured observation which is derived from a combination of two or more individual measurements.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Mixed">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A measured observation which is derived from a combination of two or more individual measurements.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:Support
Namespace http://www.spase-group.org/data/schema
Annotations
Information useful in understanding the context of an observation, typically observed or measured coincidentally with a physical observation.
Diagram
Diagram spase-1_1_0_xsd.tmp#Support_Other spase-1_1_0_xsd.tmp#Support_Positional spase-1_1_0_xsd.tmp#Support_Temporal
Used by
Model
Children spase:Other, spase:Positional, spase:Temporal
Source
<xsd:complexType name="Support">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Information useful in understanding the context of an observation, typically observed or measured coincidentally with a physical observation.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Other" type="spase:Other" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Positional" type="spase:Positional" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Temporal" type="spase:Temporal" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Other
Namespace http://www.spase-group.org/data/schema
Annotations
Values, such as flags, that are not time tags, location data or measured or derived parameters.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Other">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Values, such as flags, that are not time tags, location data or measured or derived parameters.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:Positional
Namespace http://www.spase-group.org/data/schema
Annotations
The specification of the location of an object or measurement within a reference coordinate system. The position is usually expressed as a set of values corresponding to the location along a set of orthogonal axes together with the date/time of the observation.
Diagram
Diagram spase-1_1_0_xsd.tmp#Positional_Orientation
Used by
Model
Children spase:Orientation
Source
<xsd:complexType name="Positional">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The specification of the location of an object or measurement within a reference coordinate system. The position is usually expressed as a set of values corresponding to the location along a set of orthogonal axes together with the date/time of the observation.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="Orientation" type="spase:Orientation" minOccurs="1" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Temporal
Namespace http://www.spase-group.org/data/schema
Annotations
Pertaining to time.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Temporal">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Pertaining to time.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:Granule
Namespace http://www.spase-group.org/data/schema
Annotations
An accessible portion of another resource. The ParentID of a Granule resource must be a NumericalData resource. The attributes of a Granule supersede the corresponding attributes in the NumericalData resource.
Diagram
Diagram spase-1_1_0_xsd.tmp#Granule_ResourceID spase-1_1_0_xsd.tmp#Granule_ReleaseDate spase-1_1_0_xsd.tmp#Granule_ParentID spase-1_1_0_xsd.tmp#Granule_URL spase-1_1_0_xsd.tmp#Granule_StartDate spase-1_1_0_xsd.tmp#Granule_StopDate
Used by
Model
Children spase:ParentID, spase:ReleaseDate, spase:ResourceID, spase:StartDate, spase:StopDate, spase:URL
Source
<xsd:complexType name="Granule">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">An accessible portion of another resource. The ParentID of a Granule resource must be a NumericalData resource. The attributes of a Granule supersede the corresponding attributes in the NumericalData resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ReleaseDate" type="spase:ReleaseDate" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ParentID" type="spase:ParentID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="URL" type="spase:URL" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="StartDate" type="spase:StartDate" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="StopDate" type="spase:StopDate" minOccurs="1" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:ParentID
Namespace http://www.spase-group.org/data/schema
Annotations
The resource identifier for a resource that a resource is a part of. The resource inherits the attributes of the referenced resource. Attributes defined in the resource override attributes of the parent in the manner perscribed by the containing resource.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ParentID">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The resource identifier for a resource that a resource is a part of. The resource inherits the attributes of the referenced resource. Attributes defined in the resource override attributes of the parent in the manner perscribed by the containing resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:StopDate
Namespace http://www.spase-group.org/data/schema
Annotations
The specification of a stopping point in time.
Diagram
Diagram
Type xsd:dateTime
Used by
Source
<xsd:simpleType name="StopDate">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The specification of a stopping point in time.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:dateTime"/>
</xsd:simpleType>
Complex Type spase:Instrument
Namespace http://www.spase-group.org/data/schema
Annotations
A device which is used to sense and parameterize a physical phenomenon.
Diagram
Diagram spase-1_1_0_xsd.tmp#Instrument_ResourceID spase-1_1_0_xsd.tmp#Instrument_ResourceHeader spase-1_1_0_xsd.tmp#Instrument_InstrumentType spase-1_1_0_xsd.tmp#Instrument_InvestigationName spase-1_1_0_xsd.tmp#Instrument_ObservatoryID spase-1_1_0_xsd.tmp#Instrument_Caveats
Used by
Model
Children spase:Caveats, spase:InstrumentType, spase:InvestigationName, spase:ObservatoryID, spase:ResourceHeader, spase:ResourceID
Source
<xsd:complexType name="Instrument">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A device which is used to sense and parameterize a physical phenomenon.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="InstrumentType" type="spase:InstrumentType" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="InvestigationName" type="spase:InvestigationName" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ObservatoryID" type="spase:ObservatoryID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Caveats" type="spase:Caveats" minOccurs="1" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:InstrumentType
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the type of experiment the instrument performs. This is the technique of observation.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Antenna
A sensor used to measure electric potential.
enumeration Channeltron
An instrument that detects electrons, ions, and UV-radiation, according to the principle of a secondary emission multiplier. It is typically used in electron spectroscopy and mass spectrometry.
enumeration DoubleSphere
A dipole antenna of which the active (sensor) elements are small spheres located at the ends of two wires deployed in the equatorial plane, on opposite sides of a spinning spacecraft.
enumeration ElectronDriftInstrument
An active experiment to measure the electron drift velocity based on sensing the displacement of a weak beam of electrons after one gyration in the ambient magnetic field.
enumeration ElectrostaticAnalyser
An instrument which uses charged plates to analyze the mass, charge and kinetic energies of charged particles which enter the instrument.
enumeration EnergeticParticleInstrument
An instrument that measures fluxes of charged particles as a function of time, direction of motion, mass, charge and/or species
enumeration FaradayCup
An instrument consisting of an electrode from which electrical current is measured while a charged particle beam (electrons or ions) impinges on it. Used to determine energy spectrum and sometimes ion composition of the impinging particles.
enumeration FluxFeedback
A search coil whose bandwidth and signal/noise ratio are increased by the application of negative feedback at the sensor (flux) level by driving a collocated coil with a signal from the preamplifier.
enumeration FourierTransformSpectrograph
An instrument that determines the spectra of a radiative source, using time-domain measurements and a Fourier transform.
enumeration Imager
An instrument which samples the radiation from an area at one or more spectral ranges emitted or reflected by an object.
enumeration LangmuirProbe
A monopole antenna associated with an instrument. The instrument applies a potential to the antenna which is swept to determine the voltage/current characteristic. This provides information about the plasma surrounding the probe and spacecraft.
enumeration LongWire
A dipole antenna whose active (sensor) elements are two wires deployed in the equatorial plane on opposite sides of a spinning spacecraft, and whose length is several times greater than the spacecraft diameter.
enumeration Magnetometer
An instrument which measures the ambient magnetic field.
enumeration MassSpectrometer
An instrument which distinguishes chemical species in terms of their different isotopic masses.
enumeration MicrochannelPlate
An instrument used for the detection of elementary particles, ions, ultraviolet rays and soft X-rays constructed from very thin conductive glass capillaries.
enumeration ParticleCorrelator
An instrument which correlates particle flux to help identify wave/particle interactions.
enumeration QuadrisphericalAnalyser
An instrument used for the 3-D detection of plasma, energetic electrons and ions, and for positive-ion composition measurements.
enumeration Radar
An instrument which uses radar to obtain an image of an object.
enumeration ResonanceSounder
A combination of a radio receiver and a pulsed transmitter used to study the plasma surrounding a spacecraft by identifying resonances or cut-offs (of the wave dispersion relation), whose frequencies are related to the ambient plasma density and magnetic field. When the transmitter is off it is essentially a high frequency-resolution spectral power receiver.
enumeration SearchCoil
A loop of wire used to determine the time variation of the magnetic flux threading the loop by measurement of the electric potential difference induced between the ends of the wire.
enumeration SpacecraftPotentialControl
An instrument to control the electric potential of a spacecraft with respect to the ambient plasma by emitting a variable current of positive ions.
enumeration SpectralPowerReceiver
A radio receiver which determines the power spectral density of the electric or magnetic field, or both, at one or more frequencies.
enumeration Spectrometer
An instrument that measures the component wavelengths of light or other electromagnetic radiation into its component wavelengths.
enumeration WaveformReceiver
A radio receiver which outputs the value of one or more components of the electric and/or magnetic field as a function of time.
Used by
Source
<xsd:simpleType name="InstrumentType">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the type of experiment the instrument performs. This is the technique of observation.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Antenna">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A sensor used to measure electric potential.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Channeltron">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument that detects electrons, ions, and UV-radiation, according to the principle of a secondary emission multiplier. It is typically used in electron spectroscopy and mass spectrometry.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="DoubleSphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A dipole antenna of which the active (sensor) elements are small spheres located at the ends of two wires deployed in the equatorial plane, on opposite sides of a spinning spacecraft.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ElectronDriftInstrument">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An active experiment to measure the electron drift velocity based on sensing the displacement of a weak beam of electrons after one gyration in the ambient magnetic field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ElectrostaticAnalyser">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument which uses charged plates to analyze the mass, charge and kinetic energies of charged particles which enter the instrument.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="EnergeticParticleInstrument">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument that measures fluxes of charged particles as a function of time, direction of motion, mass, charge and/or species</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="FaradayCup">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument consisting of an electrode from which electrical current is measured while a charged particle beam (electrons or ions) impinges on it. Used to determine energy spectrum and sometimes ion composition of the impinging particles.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="FluxFeedback">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A search coil whose bandwidth and signal/noise ratio are increased by the application of negative feedback at the sensor (flux) level by driving a collocated coil with a signal from the preamplifier.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="FourierTransformSpectrograph">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument that determines the spectra of a radiative source, using time-domain measurements and a Fourier transform.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Imager">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument which samples the radiation from an area at one or more spectral ranges emitted or reflected by an object.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="LangmuirProbe">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A monopole antenna associated with an instrument. The instrument applies a potential to the antenna which is swept to determine the voltage/current characteristic. This provides information about the plasma surrounding the probe and spacecraft.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="LongWire">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A dipole antenna whose active (sensor) elements are two wires deployed in the equatorial plane on opposite sides of a spinning spacecraft, and whose length is several times greater than the spacecraft diameter.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnetometer">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument which measures the ambient magnetic field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MassSpectrometer">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument which distinguishes chemical species in terms of their different isotopic masses.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="MicrochannelPlate">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument used for the detection of elementary particles, ions, ultraviolet rays and soft X-rays constructed from very thin conductive glass capillaries.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ParticleCorrelator">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument which correlates particle flux to help identify wave/particle interactions.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="QuadrisphericalAnalyser">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument used for the 3-D detection of plasma, energetic electrons and ions, and for positive-ion composition measurements.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Radar">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument which uses radar to obtain an image of an object.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="ResonanceSounder">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A combination of a radio receiver and a pulsed transmitter used to study the plasma surrounding a spacecraft by identifying resonances or cut-offs (of the wave dispersion relation), whose frequencies are related to the ambient plasma density and magnetic field. When the transmitter is off it is essentially a high frequency-resolution spectral power receiver.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SearchCoil">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A loop of wire used to determine the time variation of the magnetic flux threading the loop by measurement of the electric potential difference induced between the ends of the wire.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SpacecraftPotentialControl">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument to control the electric potential of a spacecraft with respect to the ambient plasma by emitting a variable current of positive ions.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="SpectralPowerReceiver">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A radio receiver which determines the power spectral density of the electric or magnetic field, or both, at one or more frequencies.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Spectrometer">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">An instrument that measures the component wavelengths of light or other electromagnetic radiation into its component wavelengths.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="WaveformReceiver">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A radio receiver which outputs the value of one or more components of the electric and/or magnetic field as a function of time.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:InvestigationName
Namespace http://www.spase-group.org/data/schema
Annotations
The name given to the contract or engagement which enabled the data to be produced. Each investigation is associated with a Principal Investigator or Guest Investigator who was responsible for the original proposal.  For single PI missions each major subsystem having its own identified Team Leader may also be classed as an Investigation for the purposes of data archiving.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="InvestigationName">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The name given to the contract or engagement which enabled the data to be produced. Each investigation is associated with a Principal Investigator or Guest Investigator who was responsible for the original proposal. For single PI missions each major subsystem having its own identified Team Leader may also be classed as an Investigation for the purposes of data archiving.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:ObservatoryID
Namespace http://www.spase-group.org/data/schema
Annotations
The identifier of an Observatory resource.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ObservatoryID">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The identifier of an Observatory resource.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:Observatory
Namespace http://www.spase-group.org/data/schema
Annotations
The host (spacecraft, network, facility) for instruments making observations.
Diagram
Diagram spase-1_1_0_xsd.tmp#Observatory_ResourceID spase-1_1_0_xsd.tmp#Observatory_ResourceHeader spase-1_1_0_xsd.tmp#Observatory_ObservatoryGroup
Used by
Model
Children spase:ObservatoryGroup, spase:ResourceHeader, spase:ResourceID
Source
<xsd:complexType name="Observatory">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The host (spacecraft, network, facility) for instruments making observations.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="ObservatoryGroup" type="spase:ObservatoryGroup" minOccurs="0" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:ObservatoryGroup
Namespace http://www.spase-group.org/data/schema
Annotations
A set of programmatically related observatories. The value is taken from an approved list of observatory group names.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="ObservatoryGroup">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A set of programmatically related observatories. The value is taken from an approved list of observatory group names.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:Person
Namespace http://www.spase-group.org/data/schema
Annotations
An individual human being.
Diagram
Diagram spase-1_1_0_xsd.tmp#Person_ResourceID spase-1_1_0_xsd.tmp#Person_ReleaseDate spase-1_1_0_xsd.tmp#Person_PersonName spase-1_1_0_xsd.tmp#Person_OrganizationName spase-1_1_0_xsd.tmp#Person_Address spase-1_1_0_xsd.tmp#Person_Email spase-1_1_0_xsd.tmp#Person_PhoneNumber
Used by
Model
Children spase:Address, spase:Email, spase:OrganizationName, spase:PersonName, spase:PhoneNumber, spase:ReleaseDate, spase:ResourceID
Source
<xsd:complexType name="Person">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">An individual human being.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ReleaseDate" type="spase:ReleaseDate" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="PersonName" type="spase:PersonName" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="OrganizationName" type="spase:OrganizationName" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="Address" type="spase:Address" minOccurs="0" maxOccurs="1"/>
    <xsd:element name="Email" type="spase:Email" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element name="PhoneNumber" type="spase:PhoneNumber" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:PersonName
Namespace http://www.spase-group.org/data/schema
Annotations
The words used to address an individual.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="PersonName">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The words used to address an individual.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:OrganizationName
Namespace http://www.spase-group.org/data/schema
Annotations
A unit within a company or other entity (e.g., Government agency or branch of service) within which many projects are managed as a whole.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="OrganizationName">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A unit within a company or other entity (e.g., Government agency or branch of service) within which many projects are managed as a whole.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:Address
Namespace http://www.spase-group.org/data/schema
Annotations
Directions for finding some location; written on letters or packages that are to be delivered to that location.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Address">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Directions for finding some location; written on letters or packages that are to be delivered to that location.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:Email
Namespace http://www.spase-group.org/data/schema
Annotations
The electronic address at which the individual may be contacted expressed in the form local-part@domain.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="Email">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The electronic address at which the individual may be contacted expressed in the form local-part@domain.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:PhoneNumber
Namespace http://www.spase-group.org/data/schema
Annotations
The symbols and numerals required to contact an individual by telephone. The string may contain punctuation marks such as dash (-) or dot (.) to separate fields within the string.
Diagram
Diagram
Type xsd:string
Used by
Source
<xsd:simpleType name="PhoneNumber">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The symbols and numerals required to contact an individual by telephone. The string may contain punctuation marks such as dash (-) or dot (.) to separate fields within the string.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Complex Type spase:Registry
Namespace http://www.spase-group.org/data/schema
Annotations
A location or facility where resources are cataloged.
Diagram
Diagram spase-1_1_0_xsd.tmp#Registry_ResourceID spase-1_1_0_xsd.tmp#Registry_ResourceHeader
Used by
Model
Children spase:ResourceHeader, spase:ResourceID
Source
<xsd:complexType name="Registry">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A location or facility where resources are cataloged.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type spase:Repository
Namespace http://www.spase-group.org/data/schema
Annotations
A location or facility where resources are stored.
Diagram
Diagram spase-1_1_0_xsd.tmp#Repository_ResourceID spase-1_1_0_xsd.tmp#Repository_ResourceHeader
Used by
Model
Children spase:ResourceHeader, spase:ResourceID
Source
<xsd:complexType name="Repository">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A location or facility where resources are stored.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type spase:Service
Namespace http://www.spase-group.org/data/schema
Annotations
A location or facility that can perform a well defined task.
Diagram
Diagram spase-1_1_0_xsd.tmp#Service_ResourceID spase-1_1_0_xsd.tmp#Service_ResourceHeader spase-1_1_0_xsd.tmp#Service_AccessURL
Used by
Model
Children spase:AccessURL, spase:ResourceHeader, spase:ResourceID
Source
<xsd:complexType name="Service">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">A location or facility that can perform a well defined task.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ResourceID" type="spase:ResourceID" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="ResourceHeader" type="spase:ResourceHeader" minOccurs="1" maxOccurs="1"/>
    <xsd:element name="AccessURL" type="spase:AccessURL" minOccurs="1" maxOccurs="1"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type spase:Calibrated
Namespace http://www.spase-group.org/data/schema
Annotations
Data wherein sensor outputs have been convolved with instrument response function, often irreversibly, to yield physical parameter values.
Diagram
Diagram
Type xsd:string
Source
<xsd:simpleType name="Calibrated">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Data wherein sensor outputs have been convolved with instrument response function, often irreversibly, to yield physical parameter values.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:Offline
Namespace http://www.spase-group.org/data/schema
Annotations
Not directly accessible electronically. This includes resources which may to be moved to an online status in response to a given request.
Diagram
Diagram
Type xsd:string
Source
<xsd:simpleType name="Offline">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Not directly accessible electronically. This includes resources which may to be moved to an online status in response to a given request.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string"/>
</xsd:simpleType>
Simple Type spase:ProviderReleaseDate
Namespace http://www.spase-group.org/data/schema
Annotations
The date the product was made available by the provider. The Provider Release Date is relevant only to the product life-cycle of the provider.
Diagram
Diagram
Type xsd:dateTime
Source
<xsd:simpleType name="ProviderReleaseDate">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">The date the product was made available by the provider. The Provider Release Date is relevant only to the product life-cycle of the provider.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:dateTime"/>
</xsd:simpleType>
Simple Type spase:Earth
Namespace http://www.spase-group.org/data/schema
Annotations
dentifiers for the regions surrounding the Earth.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Magnetosheath
The region between the bow shock and the magnetopause, characterized by very turbulent plasma.
enumeration Magnetosphere
The region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of the planets magnetic field.
enumeration Magnetosphere.Magnetotail
The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).
enumeration Magnetosphere.Main
The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.
enumeration Magnetosphere.Polar
The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.
enumeration Magnetosphere.RadiationBelt
The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.
enumeration NearSurface
The gaseous and possibly ionized environment of a body extending from the surface to some specified altitude.  For the Earth, this altitude is 2000 km.
enumeration NearSurface.Atmosphere
The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.
enumeration NearSurface.AuroralRegion
The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.
enumeration NearSurface.Ionosphere
The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..
enumeration Surface
The outermost area of a solid object.
Source
<xsd:simpleType name="Earth">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">dentifiers for the regions surrounding the Earth.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Magnetosheath">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region between the bow shock and the magnetopause, characterized by very turbulent plasma.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnetosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of the planet&#39;s magnetic field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnetosphere.Magnetotail">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnetosphere.Main">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnetosphere.Polar">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Magnetosphere.RadiationBelt">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NearSurface">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The gaseous and possibly ionized environment of a body extending from the surface to some specified altitude. For the Earth, this altitude is 2000 km.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NearSurface.Atmosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NearSurface.AuroralRegion">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NearSurface.Ionosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Surface">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The outermost area of a solid object.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:Heliosphere
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for regions of the solar atmosphere which extends roughly from the inner corona to the edge of the solar plasma at the heliopause separating primarily solar plasma from interstellar plasma.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Inner
The region of the heliosphere extending radially out from the surface of the Sun to 1 AU.
enumeration NearEarth
The heliospheric region near the Earth which extends to and includes the area near the L1 and L2 Lagrange point.
enumeration Outer
The region of the heliosphere from, but not including, 1 AU to the farthest extent of the heliosphere (heliopause).
enumeration Remote1AU
The heliospheric region near the Earths orbit, but exclusive of the region near the Earth.
Source
<xsd:simpleType name="Heliosphere">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for regions of the solar atmosphere which extends roughly from the inner corona to the edge of the solar plasma at the heliopause separating primarily solar plasma from interstellar plasma.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Inner">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the heliosphere extending radially out from the surface of the Sun to 1 AU.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="NearEarth">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The heliospheric region near the Earth which extends to and includes the area near the L1 and L2 Lagrange point.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Outer">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the heliosphere from, but not including, 1 AU to the farthest extent of the heliosphere (heliopause).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Remote1AU">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The heliospheric region near the Earth&#39;s orbit, but exclusive of the region near the Earth.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:Magnetosphere
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for the region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of planets magnetic field.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Magnetotail
The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).
enumeration Main
The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.
enumeration Polar
The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.
enumeration RadiationBelt
The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.
Source
<xsd:simpleType name="Magnetosphere">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for the region of space above the atmosphere or surface of the planet, and bounded by the magnetopause, that is under the direct influence of planet&#39;s magnetic field.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Magnetotail">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region on the night side of the body where the magnetic filed is stretched backwards by the force of the solar wind. For Earth, the magnetotail begins at a night-side radial distance of 10 Re (X > -10Re).</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Main">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the magnetosphere where the magnetic field lines are closed, but does not include the gaseous region gravitationally bound to the body.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Polar">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region near the pole of a body. For a magnetosphere the polar region is the area where magnetic field lines are open and includes the aural zone.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="RadiationBelt">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region within a magnetosphere where high-energy particles could potentially be trapped in a magnetic field.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:NearSurface
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for regions of the gaseous and possibly ionized environment of a body extending from the surface to some specified altitude.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Atmosphere
The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.
enumeration AuroralRegion
The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.
enumeration Ionosphere
The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..
Source
<xsd:simpleType name="NearSurface">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for regions of the gaseous and possibly ionized environment of a body extending from the surface to some specified altitude.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Atmosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The neutral gases surrounding a body that extends from the surface and is bound to the body by virtue of the gravitational attraction.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="AuroralRegion">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region in the atmospheric where electrically-charged particles bombarding the upper atmosphere of a planet in the presence of a magnetic field produce an opitcal phenomenum.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Ionosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The charged or ionized gases surrounding a body that are nominally bound to the body by virtue of the gravitational attraction..</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:ProcessingLevel
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers to characterize the amount and type of manipulation which has been applied to the sampled data.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Calibrated
Data wherein sensor outputs have been convolved with instrument response function, often irreversibly, to yield physical parameter values.
enumeration Raw
Data in its original state with no processing to account for calibration.
enumeration Uncalibrated
Duplicate data are removed from the data stream and data are time ordered. Values are not adjusted for any potential biases or external factors.
Source
<xsd:simpleType name="ProcessingLevel">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers to characterize the amount and type of manipulation which has been applied to the sampled data.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Calibrated">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Data wherein sensor outputs have been convolved with instrument response function, often irreversibly, to yield physical parameter values.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Raw">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Data in its original state with no processing to account for calibration.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Uncalibrated">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">Duplicate data are removed from the data stream and data are time ordered. Values are not adjusted for any potential biases or external factors.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Simple Type spase:Sun
Namespace http://www.spase-group.org/data/schema
Annotations
Identifiers for regions of the star upon which our solar system is centered.
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Chromosphere
The region of the Suns (or a stars) atmosphere above the temperature minimum and below the Transition Region.  The solar chromosphere is approximately 400 km to 2100 km above the photosphere, and characterized by temperatures from 4500 - 28000 K.
enumeration Corona
The outermost atmospheric region of the Sun or a star, characterized by ionization temperatures above 10^5 K.  The solar corona starts at about 2100 km above the photosphere; there is no generally defined upper limit.
enumeration Interior
The region inside the body which is not visible from outside the body.
enumeration Photosphere
The atmospheric layer of the Sun or a star from which continuum radiation, especially optical, is emitted to space.  For the Sun, the photosphere is about 500 km thick.
enumeration TransitionRegion
A very narrow (<100 km) layer between the chromosphere and the corona where the temperature rises abruptly from about 8000 to about 500,000 K.
Source
<xsd:simpleType name="Sun">
  <xsd:annotation>
    <xsd:documentation xml:lang="en">Identifiers for regions of the star upon which our solar system is centered.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Chromosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region of the Sun&#39;s (or a star&#39;s) atmosphere above the temperature minimum and below the Transition Region. The solar chromosphere is approximately 400 km to 2100 km above the photosphere, and characterized by temperatures from 4500 - 28000 K.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Corona">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The outermost atmospheric region of the Sun or a star, characterized by ionization temperatures above 10^5 K. The solar corona starts at about 2100 km above the photosphere; there is no generally defined upper limit.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Interior">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The region inside the body which is not visible from outside the body.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="Photosphere">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">The atmospheric layer of the Sun or a star from which continuum radiation, especially optical, is emitted to space. For the Sun, the photosphere is about 500 km thick.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
    <xsd:enumeration value="TransitionRegion">
      <xsd:annotation>
        <xsd:documentation xml:lang="en">A very narrow (<100 km) layer between the chromosphere and the corona where the temperature rises abruptly from about 8000 to about 500,000 K.</xsd:documentation>
      </xsd:annotation>
    </xsd:enumeration>
  </xsd:restriction>
</xsd:simpleType>
Attribute spase:Spase / @lang
Namespace No namespace
Type xsd:string
Properties
default en
Used by
Complex Type spase:Spase
Source
<xsd:attribute name="lang" type="xsd:string" default="en"/>
